Documentul original MCB — Torace, abdomen și pelvis la copil
Protocol · 3 pagini · consultat la 2026-09-27.
Descarcă PDF-ul integral · Sursa MCB · Catalogul MCB pentru această modalitate
Instrucțiunile, valorile și ilustrațiile din documentul original sunt păstrate în engleză. Titlul și navigarea sunt în română.

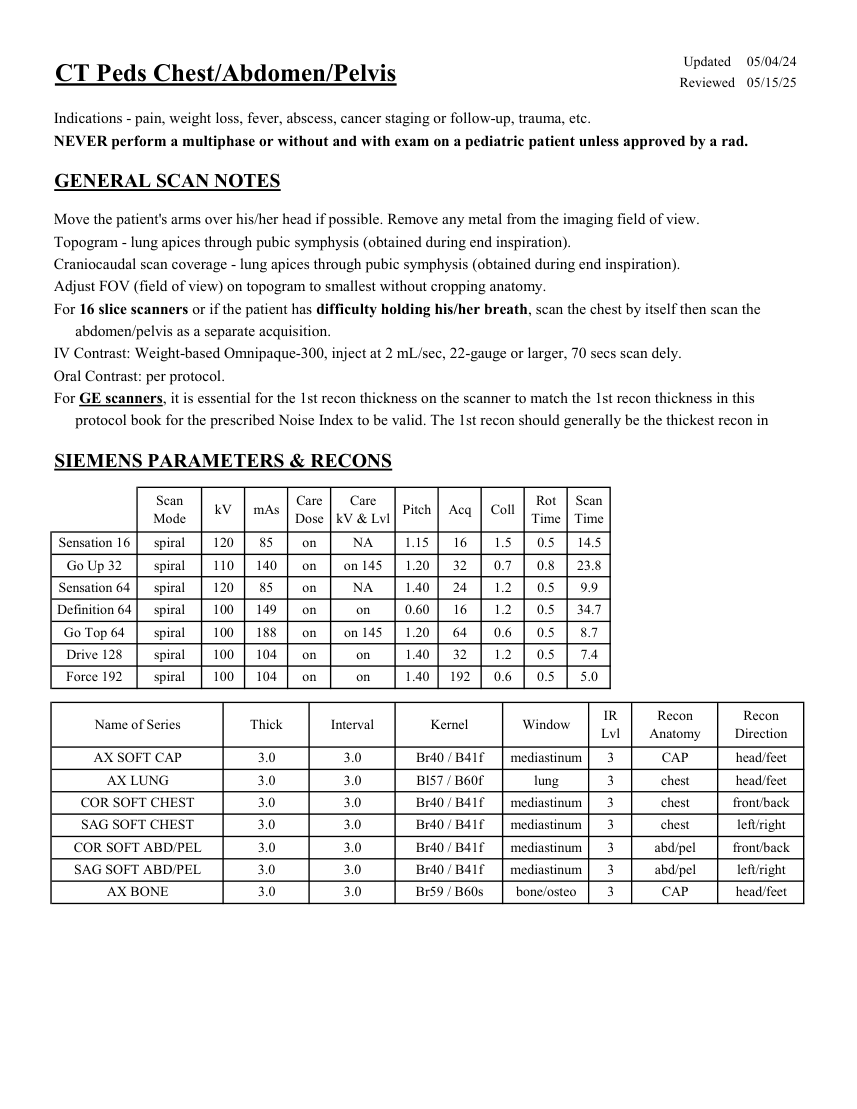

Pagina 1

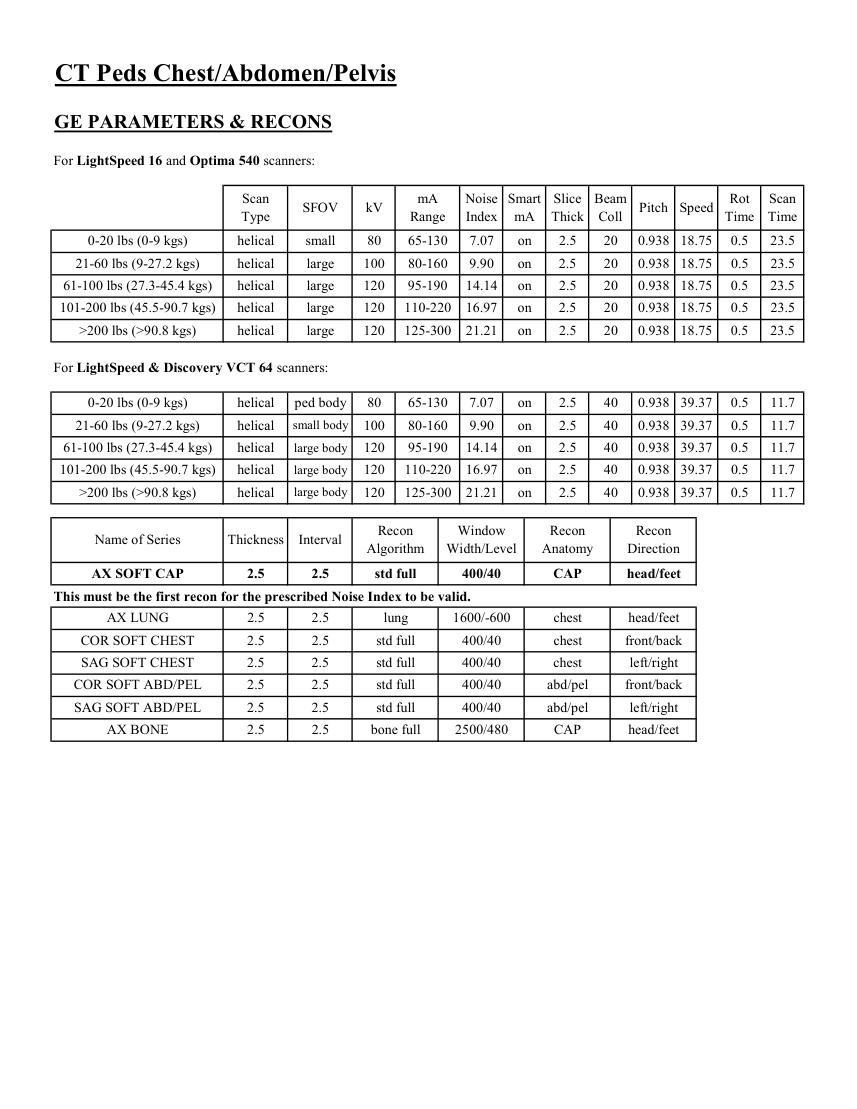

Pagina 2

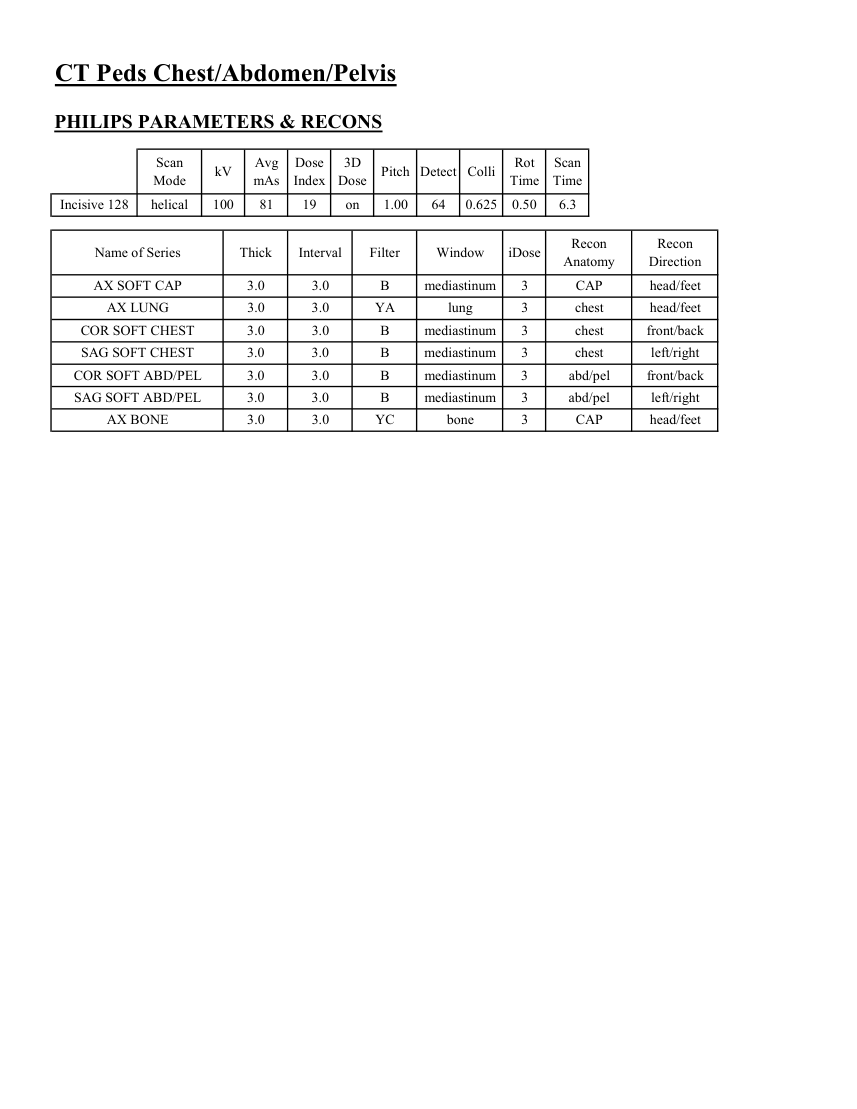

Pagina 3
Textul documentului original
Pagina 1 — text în engleză
Updated 05/04/24 CT Peds Chest/Abdomen/Pelvis Reviewed 05/15/25 Indications - pain, weight loss, fever, abscess, cancer staging or follow-up, trauma, etc. NEVER perform a multiphase or without and with exam on a pediatric patient unless approved by a rad. GENERAL SCAN NOTES Move the patient's arms over his/her head if possible. Remove any metal from the imaging field of view. Topogram - lung apices through pubic symphysis (obtained during end inspiration). Craniocaudal scan coverage - lung apices through pubic symphysis (obtained during end inspiration). Adjust FOV (field of view) on topogram to smallest without cropping anatomy. For 16 slice scanners or if the patient has difficulty holding his/her breath, scan the chest by itself then scan the abdomen/pelvis as a separate acquisition. IV Contrast: Weight-based Omnipaque-300, inject at 2 mL/sec, 22-gauge or larger, 70 secs scan dely. Oral Contrast: per protocol. For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in SIEMENS PARAMETERS & RECONS Scan
Care
Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Rot Time Time Sensation 16 spiral 120 85 on NA 1.15 16 1.5 0.5 14.5 Go Up 32 spiral 110 140 on on 145 1.20 32 0.7 0.8 23.8 Sensation 64 spiral 120 85 on NA 1.40 24 1.2 0.5 9.9 Definition 64 spiral 100 149 on 0.60 16 1.2 0.5 34.7 on Go Top 64 spiral 100 188 on on 145 1.20 64 0.6 0.5 8.7 Drive 128 spiral 100 104 on 1.40 32 1.2 0.5 7.4 on Force 192 spiral 100 104 on on 1.40 192 0.6 0.5 5.0 Recon
Recon
Direction Name of Series Thick Interval Kernel Window IR
Lvl Anatomy AX SOFT CAP 3.0 3.0 Br40 / B41f mediastinum 3 CAP head/feet AX LUNG 3.0 3.0 Bl57 / B60f lung 3 chest head/feet COR SOFT CHEST 3.0 3.0 Br40 / B41f mediastinum 3 chest front/back SAG SOFT CHEST 3.0 3.0 Br40 / B41f mediastinum 3 chest left/right COR SOFT ABD/PEL 3.0 3.0 Br40 / B41f mediastinum 3 abd/pel front/back abd/pel left/right SAG SOFT ABD/PEL 3.0 3.0 Br40 / B41f mediastinum 3 head/feet AX BONE 3.0 3.0 CAP Br59 / B60s bone/osteo 3
Care
Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Rot Time Time Sensation 16 spiral 120 85 on NA 1.15 16 1.5 0.5 14.5 Go Up 32 spiral 110 140 on on 145 1.20 32 0.7 0.8 23.8 Sensation 64 spiral 120 85 on NA 1.40 24 1.2 0.5 9.9 Definition 64 spiral 100 149 on 0.60 16 1.2 0.5 34.7 on Go Top 64 spiral 100 188 on on 145 1.20 64 0.6 0.5 8.7 Drive 128 spiral 100 104 on 1.40 32 1.2 0.5 7.4 on Force 192 spiral 100 104 on on 1.40 192 0.6 0.5 5.0 Recon
Recon
Direction Name of Series Thick Interval Kernel Window IR
Lvl Anatomy AX SOFT CAP 3.0 3.0 Br40 / B41f mediastinum 3 CAP head/feet AX LUNG 3.0 3.0 Bl57 / B60f lung 3 chest head/feet COR SOFT CHEST 3.0 3.0 Br40 / B41f mediastinum 3 chest front/back SAG SOFT CHEST 3.0 3.0 Br40 / B41f mediastinum 3 chest left/right COR SOFT ABD/PEL 3.0 3.0 Br40 / B41f mediastinum 3 abd/pel front/back abd/pel left/right SAG SOFT ABD/PEL 3.0 3.0 Br40 / B41f mediastinum 3 head/feet AX BONE 3.0 3.0 CAP Br59 / B60s bone/osteo 3
Pagina 2 — text în engleză
CT Peds Chest/Abdomen/Pelvis GE PARAMETERS & RECONS For LightSpeed 16 and Optima 540 scanners: Scan
Smart
Slice
Beam
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Speed Rot
Time Time 0-20 lbs (0-9 kgs) helical small 80 65-130 0.5 23.5 7.07 on 2.5 20 0.938 18.75 21-60 lbs (9-27.2 kgs) helical large 100 80-160 9.90 on 2.5 20 0.938 18.75 0.5 23.5 61-100 lbs (27.3-45.4 kgs) helical large 120 95-190 0.5 23.5 20 0.938 18.75 14.14 on 2.5 101-200 lbs (45.5-90.7 kgs) helical large 120 110-220 16.97 on 2.5 20 0.938 18.75 0.5 23.5 >200 lbs (>90.8 kgs) helical large 120 125-300 0.5 23.5 20 0.938 18.75 21.21 on 2.5 For LightSpeed & Discovery VCT 64 scanners: 0-20 lbs (0-9 kgs) helical ped body 80 65-130 7.07 on 2.5 40 0.938 39.37 0.5 11.7 21-60 lbs (9-27.2 kgs) helical small body 100 80-160 0.5 11.7 40 0.938 39.37 9.90 on 2.5 61-100 lbs (27.3-45.4 kgs) helical large body 120 95-190 14.14 on 2.5 40 0.938 39.37 0.5 11.7 101-200 lbs (45.5-90.7 kgs) helical large body 120 110-220 16.97 on 2.5 40 0.938 39.37 0.5 11.7 >200 lbs (>90.8 kgs) helical large body 120 125-300 21.21 on 2.5 40 0.938 39.37 0.5 11.7 Window
Recon
Recon
Direction Name of Series Thickness Interval Recon
Algorithm Width/Level Anatomy AX SOFT CAP 2.5 2.5 std full 400/40 CAP head/feet This must be the first recon for the prescribed Noise Index to be valid. AX LUNG 2.5 2.5 lung 1600/-600 chest head/feet COR SOFT CHEST 2.5 2.5 std full 400/40 chest front/back SAG SOFT CHEST 2.5 2.5 std full 400/40 chest left/right COR SOFT ABD/PEL 2.5 2.5 std full 400/40 abd/pel front/back SAG SOFT ABD/PEL 2.5 2.5 std full 400/40 abd/pel left/right AX BONE 2.5 2.5 bone full 2500/480 CAP head/feet
Smart
Slice
Beam
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Speed Rot
Time Time 0-20 lbs (0-9 kgs) helical small 80 65-130 0.5 23.5 7.07 on 2.5 20 0.938 18.75 21-60 lbs (9-27.2 kgs) helical large 100 80-160 9.90 on 2.5 20 0.938 18.75 0.5 23.5 61-100 lbs (27.3-45.4 kgs) helical large 120 95-190 0.5 23.5 20 0.938 18.75 14.14 on 2.5 101-200 lbs (45.5-90.7 kgs) helical large 120 110-220 16.97 on 2.5 20 0.938 18.75 0.5 23.5 >200 lbs (>90.8 kgs) helical large 120 125-300 0.5 23.5 20 0.938 18.75 21.21 on 2.5 For LightSpeed & Discovery VCT 64 scanners: 0-20 lbs (0-9 kgs) helical ped body 80 65-130 7.07 on 2.5 40 0.938 39.37 0.5 11.7 21-60 lbs (9-27.2 kgs) helical small body 100 80-160 0.5 11.7 40 0.938 39.37 9.90 on 2.5 61-100 lbs (27.3-45.4 kgs) helical large body 120 95-190 14.14 on 2.5 40 0.938 39.37 0.5 11.7 101-200 lbs (45.5-90.7 kgs) helical large body 120 110-220 16.97 on 2.5 40 0.938 39.37 0.5 11.7 >200 lbs (>90.8 kgs) helical large body 120 125-300 21.21 on 2.5 40 0.938 39.37 0.5 11.7 Window
Recon
Recon
Direction Name of Series Thickness Interval Recon
Algorithm Width/Level Anatomy AX SOFT CAP 2.5 2.5 std full 400/40 CAP head/feet This must be the first recon for the prescribed Noise Index to be valid. AX LUNG 2.5 2.5 lung 1600/-600 chest head/feet COR SOFT CHEST 2.5 2.5 std full 400/40 chest front/back SAG SOFT CHEST 2.5 2.5 std full 400/40 chest left/right COR SOFT ABD/PEL 2.5 2.5 std full 400/40 abd/pel front/back SAG SOFT ABD/PEL 2.5 2.5 std full 400/40 abd/pel left/right AX BONE 2.5 2.5 bone full 2500/480 CAP head/feet
Pagina 3 — text în engleză
CT Peds Chest/Abdomen/Pelvis PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Scan
Pitch Detect Colli Rot Mode kV Avg
mAs Index Dose Time Time Incisive 128 helical 100 81 19 on 1.00 64 0.625 0.50 6.3 Recon
Name of Series Thick Interval Filter Window iDose Recon
Anatomy Direction AX SOFT CAP 3.0 3.0 B mediastinum 3 CAP head/feet AX LUNG head/feet 3.0 3.0 YA lung 3 chest COR SOFT CHEST 3.0 3.0 B mediastinum 3 chest front/back SAG SOFT CHEST 3.0 3.0 B mediastinum 3 chest left/right COR SOFT ABD/PEL 3.0 3.0 B mediastinum 3 abd/pel front/back SAG SOFT ABD/PEL 3.0 3.0 B mediastinum 3 abd/pel left/right AX BONE 3.0 3.0 bone 3 YC CAP head/feet
Dose
3D
Scan
Pitch Detect Colli Rot Mode kV Avg
mAs Index Dose Time Time Incisive 128 helical 100 81 19 on 1.00 64 0.625 0.50 6.3 Recon
Name of Series Thick Interval Filter Window iDose Recon
Anatomy Direction AX SOFT CAP 3.0 3.0 B mediastinum 3 CAP head/feet AX LUNG head/feet 3.0 3.0 YA lung 3 chest COR SOFT CHEST 3.0 3.0 B mediastinum 3 chest front/back SAG SOFT CHEST 3.0 3.0 B mediastinum 3 chest left/right COR SOFT ABD/PEL 3.0 3.0 B mediastinum 3 abd/pel front/back SAG SOFT ABD/PEL 3.0 3.0 B mediastinum 3 abd/pel left/right AX BONE 3.0 3.0 bone 3 YC CAP head/feet
