Documentul original MCB — Coloană lombară la copil
Protocol · 2 pagini · consultat la 2026-09-27.
Descarcă PDF-ul integral · Sursa MCB · Catalogul MCB pentru această modalitate
Instrucțiunile, valorile și ilustrațiile din documentul original sunt păstrate în engleză. Titlul și navigarea sunt în română.

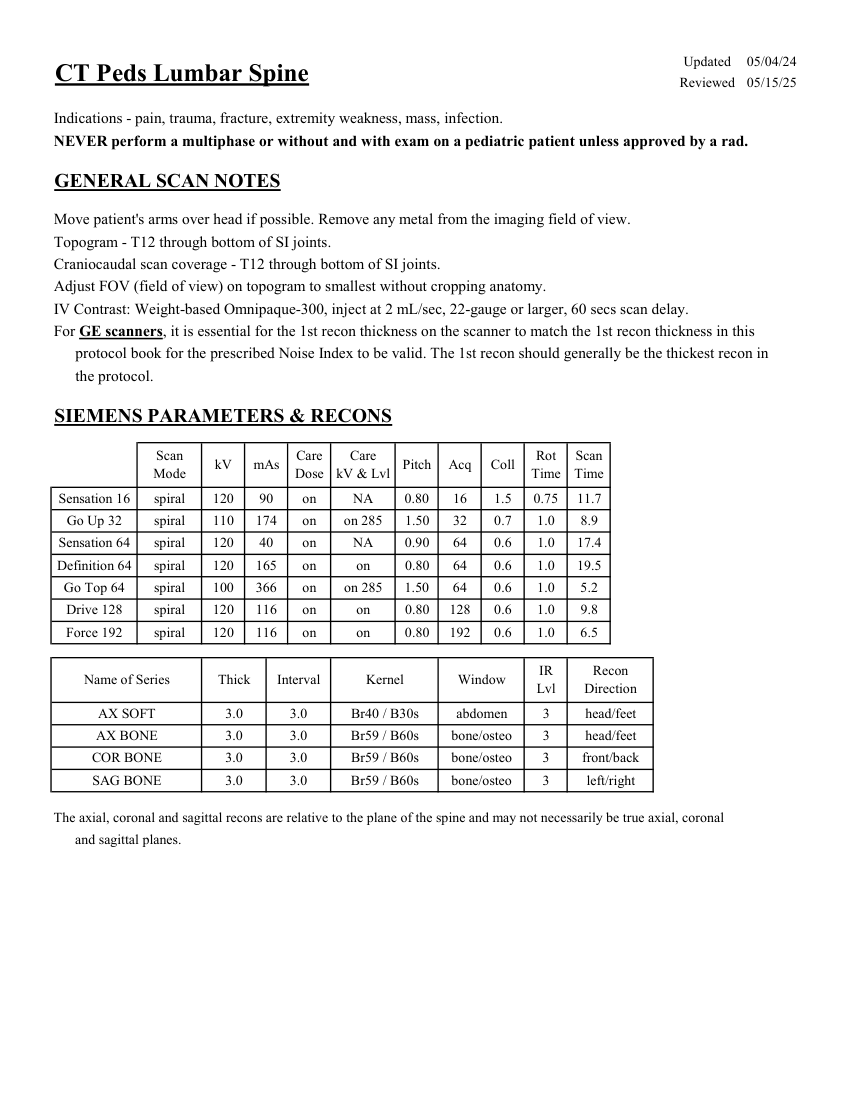

Pagina 1

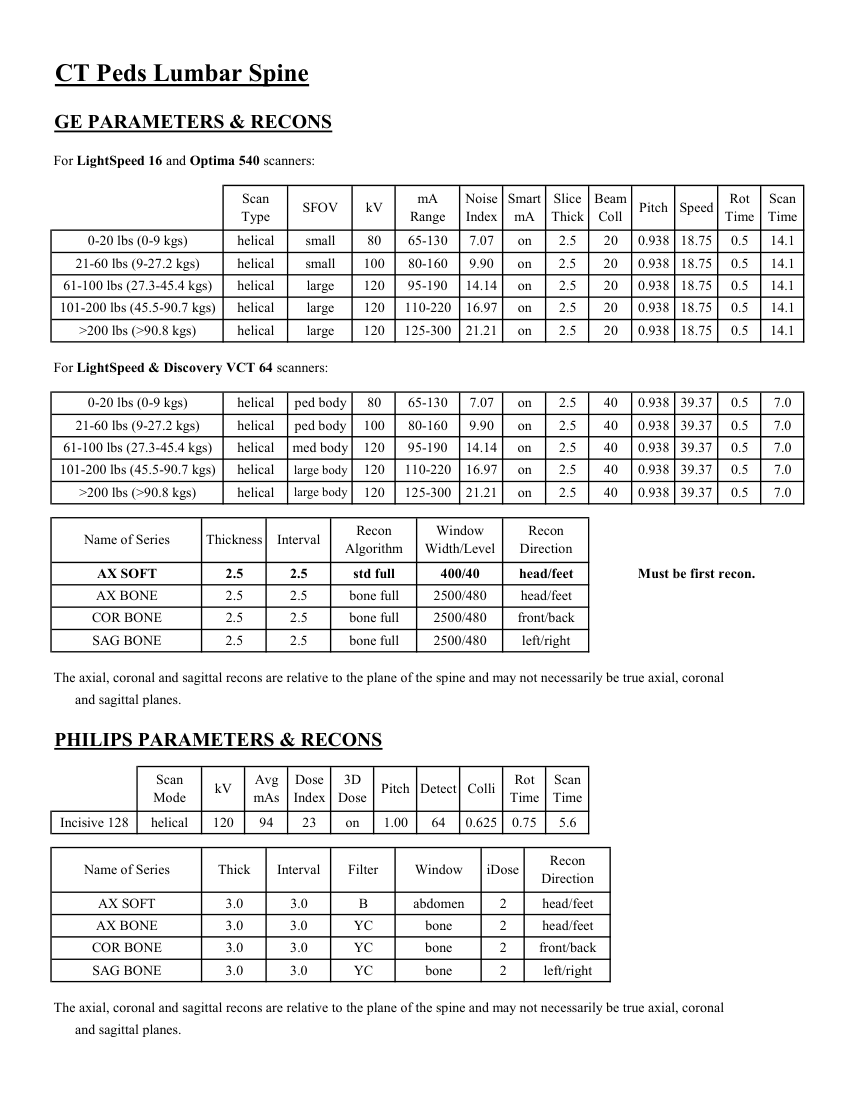

Pagina 2
Textul documentului original
Pagina 1 — text în engleză
Updated 05/04/24 CT Peds Lumbar Spine Reviewed 05/15/25 Indications - pain, trauma, fracture, extremity weakness, mass, infection. NEVER perform a multiphase or without and with exam on a pediatric patient unless approved by a rad. GENERAL SCAN NOTES Move patient's arms over head if possible. Remove any metal from the imaging field of view. Topogram - T12 through bottom of SI joints. Craniocaudal scan coverage - T12 through bottom of SI joints. Adjust FOV (field of view) on topogram to smallest without cropping anatomy. IV Contrast: Weight-based Omnipaque-300, inject at 2 mL/sec, 22-gauge or larger, 60 secs scan delay. For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in the protocol. SIEMENS PARAMETERS & RECONS Scan
Care
Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Rot Time Time Sensation 16 spiral 120 90 on NA 0.80 16 1.5 0.75 11.7 Go Up 32 spiral 110 174 on on 285 1.50 32 0.7 1.0 8.9 Sensation 64 spiral 120 40 on NA 0.90 64 0.6 1.0 17.4 Definition 64 spiral 120 165 on 0.80 64 0.6 1.0 19.5 on Go Top 64 spiral 100 366 on on 285 1.50 64 0.6 1.0 5.2 Drive 128 spiral 120 116 on 0.80 128 0.6 1.0 9.8 on Force 192 spiral 120 116 on on 0.80 192 0.6 1.0 6.5 Recon
Name of Series Thick Interval Kernel Window IR
Lvl Direction AX SOFT 3.0 3.0 Br40 / B30s abdomen 3 head/feet AX BONE 3.0 3.0 Br59 / B60s bone/osteo 3 head/feet COR BONE 3.0 3.0 Br59 / B60s bone/osteo 3 front/back left/right SAG BONE 3.0 3.0 Br59 / B60s bone/osteo 3 The axial, coronal and sagittal recons are relative to the plane of the spine and may not necessarily be true axial, coronal and sagittal planes.
Care
Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Rot Time Time Sensation 16 spiral 120 90 on NA 0.80 16 1.5 0.75 11.7 Go Up 32 spiral 110 174 on on 285 1.50 32 0.7 1.0 8.9 Sensation 64 spiral 120 40 on NA 0.90 64 0.6 1.0 17.4 Definition 64 spiral 120 165 on 0.80 64 0.6 1.0 19.5 on Go Top 64 spiral 100 366 on on 285 1.50 64 0.6 1.0 5.2 Drive 128 spiral 120 116 on 0.80 128 0.6 1.0 9.8 on Force 192 spiral 120 116 on on 0.80 192 0.6 1.0 6.5 Recon
Name of Series Thick Interval Kernel Window IR
Lvl Direction AX SOFT 3.0 3.0 Br40 / B30s abdomen 3 head/feet AX BONE 3.0 3.0 Br59 / B60s bone/osteo 3 head/feet COR BONE 3.0 3.0 Br59 / B60s bone/osteo 3 front/back left/right SAG BONE 3.0 3.0 Br59 / B60s bone/osteo 3 The axial, coronal and sagittal recons are relative to the plane of the spine and may not necessarily be true axial, coronal and sagittal planes.
Pagina 2 — text în engleză
CT Peds Lumbar Spine GE PARAMETERS & RECONS For LightSpeed 16 and Optima 540 scanners: Scan
Smart
Slice
Beam
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Speed Rot
Time Time 0-20 lbs (0-9 kgs) helical small 80 65-130 7.07 14.1 on 2.5 20 0.938 18.75 0.5 21-60 lbs (9-27.2 kgs) helical small 100 80-160 9.90 on 2.5 20 0.938 18.75 0.5 14.1 61-100 lbs (27.3-45.4 kgs) helical large 120 95-190 14.14 14.1 on 2.5 20 0.938 18.75 0.5 101-200 lbs (45.5-90.7 kgs) helical large 120 110-220 16.97 on 2.5 20 0.938 18.75 0.5 14.1 >200 lbs (>90.8 kgs) helical large 120 125-300 21.21 14.1 on 2.5 20 0.938 18.75 0.5 For LightSpeed & Discovery VCT 64 scanners: 0-20 lbs (0-9 kgs) helical ped body 80 65-130 7.07 on 2.5 40 0.938 39.37 0.5 7.0 21-60 lbs (9-27.2 kgs) helical ped body 100 80-160 9.90 7.0 on 2.5 40 0.938 39.37 0.5 61-100 lbs (27.3-45.4 kgs) helical med body 120 95-190 14.14 on 2.5 40 0.938 39.37 0.5 7.0 101-200 lbs (45.5-90.7 kgs) helical large body 120 110-220 16.97 7.0 on 2.5 40 0.938 39.37 0.5 >200 lbs (>90.8 kgs) helical large body 120 125-300 21.21 on 2.5 40 0.938 39.37 0.5 7.0 Window
Recon Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX SOFT 2.5 2.5 std full 400/40 head/feet Must be first recon. AX BONE 2.5 2.5 bone full 2500/480 head/feet COR BONE 2.5 2.5 bone full 2500/480 front/back SAG BONE 2.5 2.5 bone full 2500/480 left/right The axial, coronal and sagittal recons are relative to the plane of the spine and may not necessarily be true axial, coronal and sagittal planes. PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Scan
Pitch Detect Colli Rot Mode kV Avg
mAs Index Dose Time Time Incisive 128 helical 120 94 23 on 1.00 64 0.625 0.75 5.6 Recon
Name of Series Thick Interval Filter Window iDose Direction AX SOFT 3.0 3.0 B abdomen 2 head/feet AX BONE 3.0 3.0 YC bone 2 head/feet COR BONE 3.0 3.0 YC bone 2 front/back left/right SAG BONE 3.0 3.0 YC bone 2 The axial, coronal and sagittal recons are relative to the plane of the spine and may not necessarily be true axial, coronal and sagittal planes.
Smart
Slice
Beam
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Speed Rot
Time Time 0-20 lbs (0-9 kgs) helical small 80 65-130 7.07 14.1 on 2.5 20 0.938 18.75 0.5 21-60 lbs (9-27.2 kgs) helical small 100 80-160 9.90 on 2.5 20 0.938 18.75 0.5 14.1 61-100 lbs (27.3-45.4 kgs) helical large 120 95-190 14.14 14.1 on 2.5 20 0.938 18.75 0.5 101-200 lbs (45.5-90.7 kgs) helical large 120 110-220 16.97 on 2.5 20 0.938 18.75 0.5 14.1 >200 lbs (>90.8 kgs) helical large 120 125-300 21.21 14.1 on 2.5 20 0.938 18.75 0.5 For LightSpeed & Discovery VCT 64 scanners: 0-20 lbs (0-9 kgs) helical ped body 80 65-130 7.07 on 2.5 40 0.938 39.37 0.5 7.0 21-60 lbs (9-27.2 kgs) helical ped body 100 80-160 9.90 7.0 on 2.5 40 0.938 39.37 0.5 61-100 lbs (27.3-45.4 kgs) helical med body 120 95-190 14.14 on 2.5 40 0.938 39.37 0.5 7.0 101-200 lbs (45.5-90.7 kgs) helical large body 120 110-220 16.97 7.0 on 2.5 40 0.938 39.37 0.5 >200 lbs (>90.8 kgs) helical large body 120 125-300 21.21 on 2.5 40 0.938 39.37 0.5 7.0 Window
Recon Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX SOFT 2.5 2.5 std full 400/40 head/feet Must be first recon. AX BONE 2.5 2.5 bone full 2500/480 head/feet COR BONE 2.5 2.5 bone full 2500/480 front/back SAG BONE 2.5 2.5 bone full 2500/480 left/right The axial, coronal and sagittal recons are relative to the plane of the spine and may not necessarily be true axial, coronal and sagittal planes. PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Scan
Pitch Detect Colli Rot Mode kV Avg
mAs Index Dose Time Time Incisive 128 helical 120 94 23 on 1.00 64 0.625 0.75 5.6 Recon
Name of Series Thick Interval Filter Window iDose Direction AX SOFT 3.0 3.0 B abdomen 2 head/feet AX BONE 3.0 3.0 YC bone 2 head/feet COR BONE 3.0 3.0 YC bone 2 front/back left/right SAG BONE 3.0 3.0 YC bone 2 The axial, coronal and sagittal recons are relative to the plane of the spine and may not necessarily be true axial, coronal and sagittal planes.
