Documentul original MCB — Sinusuri
Protocol · 2 pagini · consultat la 2026-09-27.
Descarcă PDF-ul integral · Sursa MCB · Catalogul MCB pentru această modalitate
Instrucțiunile, valorile și ilustrațiile din documentul original sunt păstrate în engleză. Titlul și navigarea sunt în română.
Pagina 1
Pagina 2
Textul documentului original

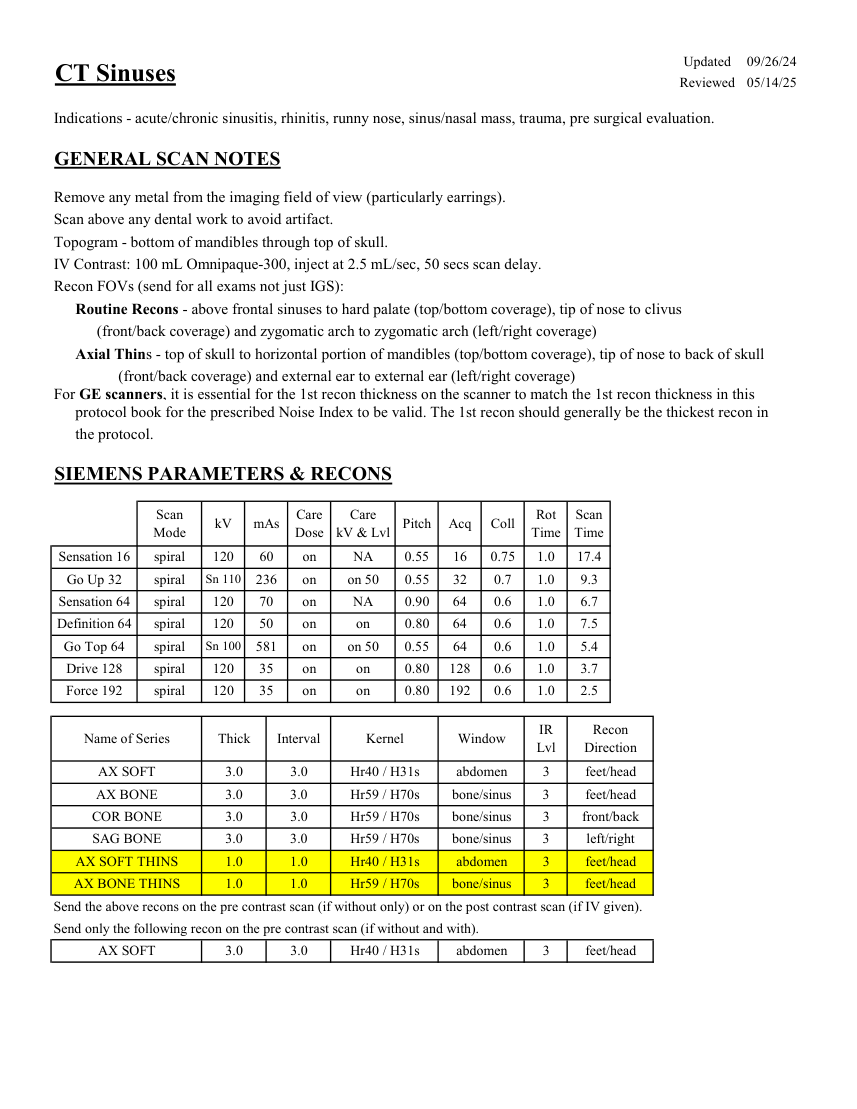

Pagina 1 — text în engleză
Updated 09/26/24 CT Sinuses Reviewed 05/14/25 Indications - acute/chronic sinusitis, rhinitis, runny nose, sinus/nasal mass, trauma, pre surgical evaluation. GENERAL SCAN NOTES Remove any metal from the imaging field of view (particularly earrings). Scan above any dental work to avoid artifact. Topogram - bottom of mandibles through top of skull. IV Contrast: 100 mL Omnipaque-300, inject at 2.5 mL/sec, 50 secs scan delay. Recon FOVs (send for all exams not just IGS): Routine Recons - above frontal sinuses to hard palate (top/bottom coverage), tip of nose to clivus (front/back coverage) and zygomatic arch to zygomatic arch (left/right coverage) Axial Thins - top of skull to horizontal portion of mandibles (top/bottom coverage), tip of nose to back of skull (front/back coverage) and external ear to external ear (left/right coverage) For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in the protocol. SIEMENS PARAMETERS & RECONS Scan
Care
Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Rot Time Time Sensation 16 spiral 120 60 on NA 0.55 16 0.75 1.0 17.4 Go Up 32 spiral Sn 110 236 on on 50 0.55 32 0.7 1.0 9.3 Sensation 64 spiral 120 70 on NA 0.90 64 0.6 1.0 6.7 Definition 64 spiral 120 50 on on 0.80 64 0.6 1.0 7.5 Go Top 64 spiral Sn 100 581 on on 50 0.55 64 0.6 1.0 5.4 Drive 128 spiral 120 35 on on 0.80 128 0.6 1.0 3.7 Force 192 spiral 120 35 on on 0.80 192 0.6 1.0 2.5 Recon
Name of Series Thick Interval Kernel Window IR
Lvl Direction AX SOFT 3.0 3.0 Hr40 / H31s abdomen 3 feet/head AX BONE 3.0 3.0 Hr59 / H70s bone/sinus 3 feet/head COR BONE 3.0 3.0 Hr59 / H70s bone/sinus 3 front/back SAG BONE 3.0 3.0 Hr59 / H70s bone/sinus 3 left/right AX SOFT THINS 1.0 1.0 Hr40 / H31s abdomen 3 feet/head AX BONE THINS 1.0 1.0 Hr59 / H70s bone/sinus 3 feet/head Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT 3.0 3.0 Hr40 / H31s abdomen 3 feet/head
Care
Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Rot Time Time Sensation 16 spiral 120 60 on NA 0.55 16 0.75 1.0 17.4 Go Up 32 spiral Sn 110 236 on on 50 0.55 32 0.7 1.0 9.3 Sensation 64 spiral 120 70 on NA 0.90 64 0.6 1.0 6.7 Definition 64 spiral 120 50 on on 0.80 64 0.6 1.0 7.5 Go Top 64 spiral Sn 100 581 on on 50 0.55 64 0.6 1.0 5.4 Drive 128 spiral 120 35 on on 0.80 128 0.6 1.0 3.7 Force 192 spiral 120 35 on on 0.80 192 0.6 1.0 2.5 Recon
Name of Series Thick Interval Kernel Window IR
Lvl Direction AX SOFT 3.0 3.0 Hr40 / H31s abdomen 3 feet/head AX BONE 3.0 3.0 Hr59 / H70s bone/sinus 3 feet/head COR BONE 3.0 3.0 Hr59 / H70s bone/sinus 3 front/back SAG BONE 3.0 3.0 Hr59 / H70s bone/sinus 3 left/right AX SOFT THINS 1.0 1.0 Hr40 / H31s abdomen 3 feet/head AX BONE THINS 1.0 1.0 Hr59 / H70s bone/sinus 3 feet/head Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT 3.0 3.0 Hr40 / H31s abdomen 3 feet/head

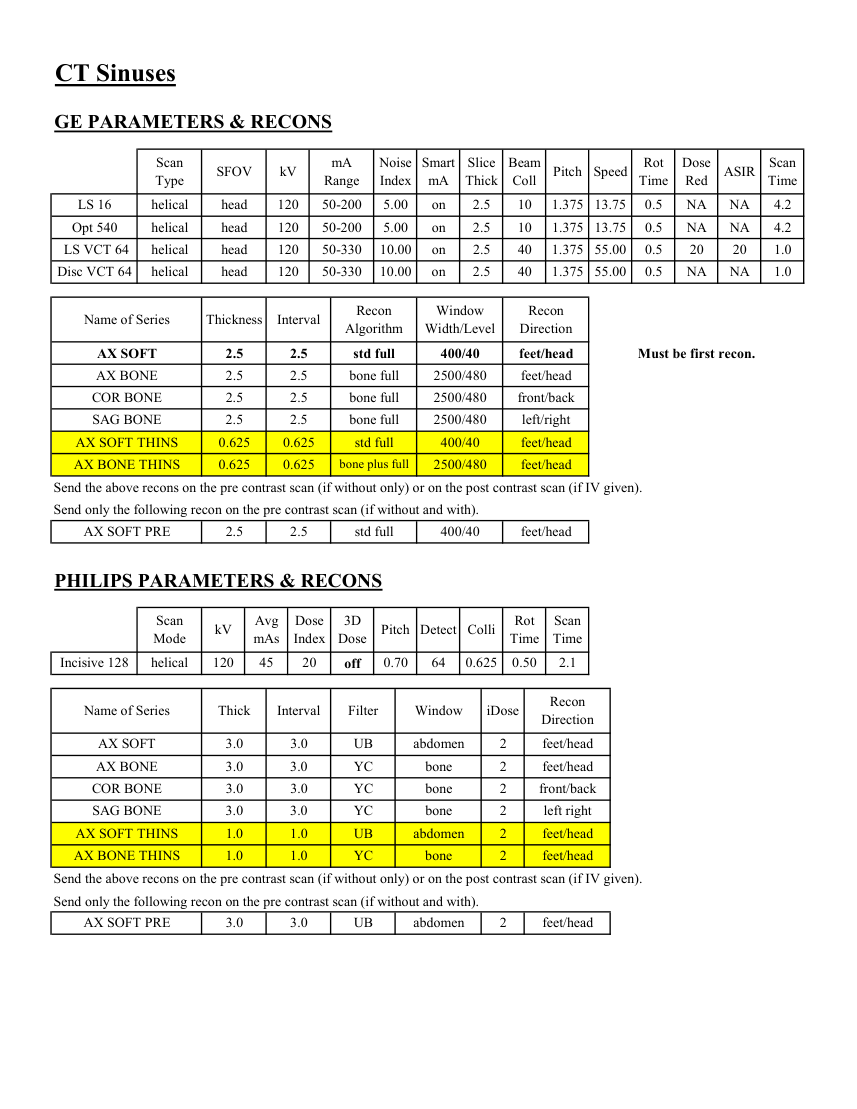

Pagina 2 — text în engleză
CT Sinuses GE PARAMETERS & RECONS Scan
Smart
Slice
Beam
Dose
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Speed Rot
Time Red ASIR Time LS 16 helical head 120 50-200 5.00 on 2.5 10 1.375 13.75 0.5 NA NA 4.2 Opt 540 helical head 120 50-200 5.00 on 2.5 10 1.375 13.75 0.5 NA NA 4.2 LS VCT 64 helical 55.00 head 120 50-330 10.00 on 2.5 40 1.375 0.5 20 20 1.0 Disc VCT 64 helical 10.00 on 2.5 40 1.375 55.00 head 120 50-330 0.5 NA NA 1.0 Window
Recon Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX SOFT 2.5 2.5 std full 400/40 feet/head Must be first recon. AX BONE 2.5 2.5 bone full 2500/480 feet/head COR BONE 2.5 2.5 bone full 2500/480 front/back SAG BONE 2.5 2.5 bone full 2500/480 left/right AX SOFT THINS 0.625 0.625 std full 400/40 feet/head AX BONE THINS 0.625 0.625 bone plus full 2500/480 feet/head Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 2.5 2.5 std full 400/40 feet/head PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Rot Scan
Mode kV Avg
mAs Index Dose Pitch Detect Colli Time Time 0.50 2.1 Incisive 128 helical 120 45 20 off 0.70 64 0.625 Name of Series Thick Interval Filter Window iDose Recon
Direction AX SOFT 3.0 3.0 UB abdomen 2 feet/head AX BONE 3.0 3.0 YC bone 2 feet/head COR BONE 3.0 3.0 YC bone 2 front/back SAG BONE 3.0 3.0 YC bone 2 left right AX SOFT THINS 1.0 1.0 UB abdomen 2 feet/head AX BONE THINS 1.0 1.0 YC bone 2 feet/head Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 3.0 3.0 UB abdomen 2 feet/head
Smart
Slice
Beam
Dose
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Speed Rot
Time Red ASIR Time LS 16 helical head 120 50-200 5.00 on 2.5 10 1.375 13.75 0.5 NA NA 4.2 Opt 540 helical head 120 50-200 5.00 on 2.5 10 1.375 13.75 0.5 NA NA 4.2 LS VCT 64 helical 55.00 head 120 50-330 10.00 on 2.5 40 1.375 0.5 20 20 1.0 Disc VCT 64 helical 10.00 on 2.5 40 1.375 55.00 head 120 50-330 0.5 NA NA 1.0 Window
Recon Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX SOFT 2.5 2.5 std full 400/40 feet/head Must be first recon. AX BONE 2.5 2.5 bone full 2500/480 feet/head COR BONE 2.5 2.5 bone full 2500/480 front/back SAG BONE 2.5 2.5 bone full 2500/480 left/right AX SOFT THINS 0.625 0.625 std full 400/40 feet/head AX BONE THINS 0.625 0.625 bone plus full 2500/480 feet/head Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 2.5 2.5 std full 400/40 feet/head PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Rot Scan
Mode kV Avg
mAs Index Dose Pitch Detect Colli Time Time 0.50 2.1 Incisive 128 helical 120 45 20 off 0.70 64 0.625 Name of Series Thick Interval Filter Window iDose Recon
Direction AX SOFT 3.0 3.0 UB abdomen 2 feet/head AX BONE 3.0 3.0 YC bone 2 feet/head COR BONE 3.0 3.0 YC bone 2 front/back SAG BONE 3.0 3.0 YC bone 2 left right AX SOFT THINS 1.0 1.0 UB abdomen 2 feet/head AX BONE THINS 1.0 1.0 YC bone 2 feet/head Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 3.0 3.0 UB abdomen 2 feet/head
