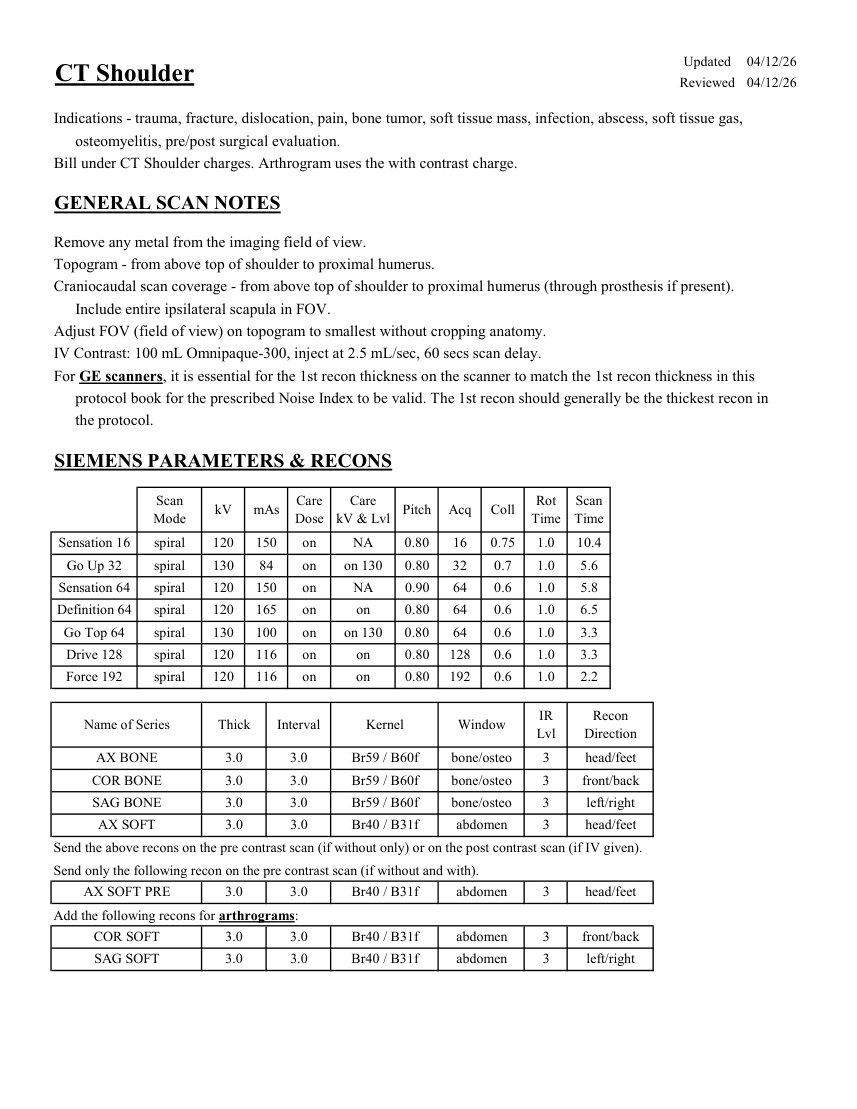

Updated 04/12/26 CT Shoulder Reviewed 04/12/26 Indications - trauma, fracture, dislocation, pain, bone tumor, soft tissue mass, infection, abscess, soft tissue gas, osteomyelitis, pre/post surgical evaluation. Bill under CT Shoulder charges. Arthrogram uses the with contrast charge. GENERAL SCAN NOTES Remove any metal from the imaging field of view. Topogram - from above top of shoulder to proximal humerus. Craniocaudal scan coverage - from above top of shoulder to proximal humerus (through prosthesis if present). Include entire ipsilateral scapula in FOV. Adjust FOV (field of view) on topogram to smallest without cropping anatomy. IV Contrast: 100 mL Omnipaque-300, inject at 2.5 mL/sec, 60 secs scan delay. For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in the protocol. SIEMENS PARAMETERS & RECONS Scan
Care
Scan
Acq Coll Rot Mode kV mAs Care
Dose kV & Lvl Pitch Time Time Sensation 16 spiral 120 150 on NA 0.80 16 0.75 1.0 10.4 Go Up 32 spiral 130 84 on on 130 0.80 32 0.7 1.0 5.6 Sensation 64 spiral 120 150 on 0.90 64 0.6 1.0 5.8 NA Definition 64 spiral 120 165 on on 0.80 64 0.6 1.0 6.5 Go Top 64 spiral 130 100 on 0.80 64 0.6 1.0 3.3 on 130 Drive 128 spiral 120 116 on on 0.80 128 0.6 1.0 3.3 Force 192 spiral 120 116 on on 0.80 192 0.6 1.0 2.2 IR
Recon
Name of Series Thick Interval Kernel Window Lvl Direction AX BONE 3.0 3.0 Br59 / B60f bone/osteo 3 head/feet COR BONE 3.0 3.0 Br59 / B60f bone/osteo 3 front/back SAG BONE 3.0 3.0 Br59 / B60f bone/osteo 3 left/right AX SOFT 3.0 3.0 Br40 / B31f abdomen 3 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 3.0 3.0 Br40 / B31f abdomen 3 head/feet Add the following recons for arthrograms: COR SOFT 3.0 3.0 Br40 / B31f abdomen 3 front/back SAG SOFT 3.0 3.0 Br40 / B31f abdomen 3 left/right

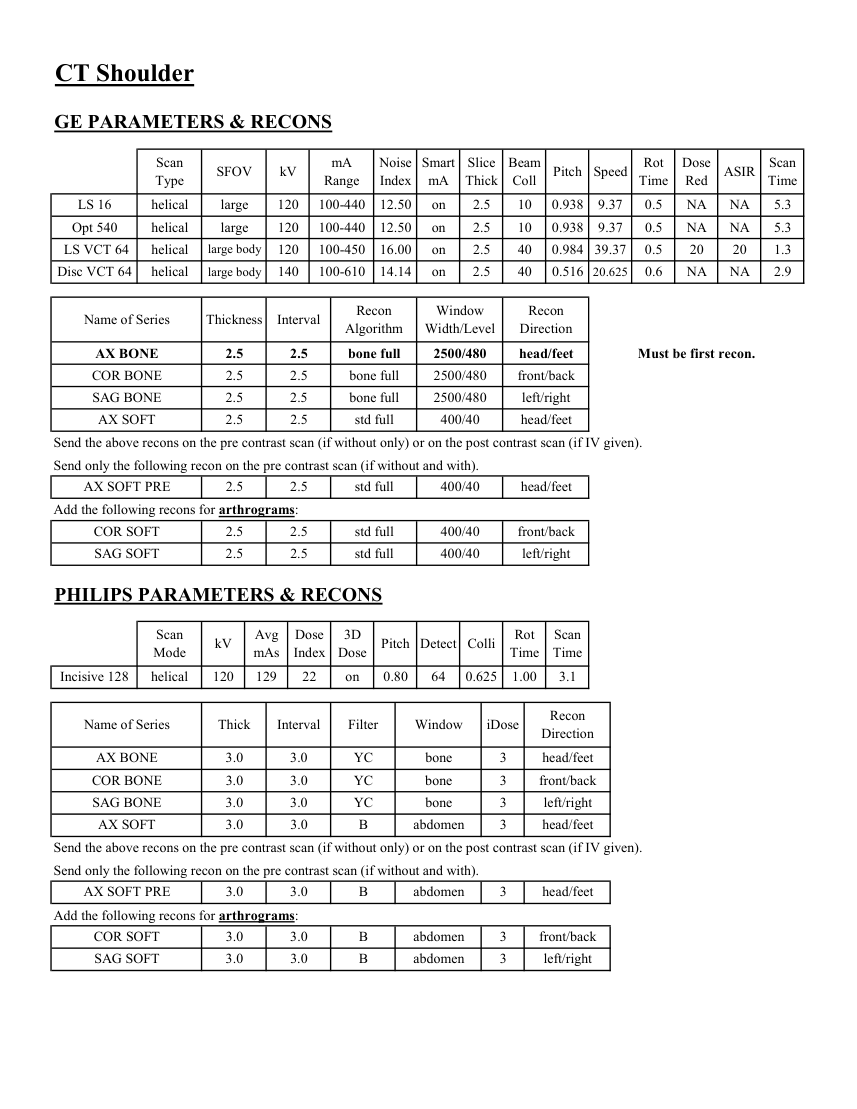

CT Shoulder GE PARAMETERS & RECONS Scan
Smart
Slice
Beam
Dose
Pitch Speed Rot
Type SFOV kV mA
Range Noise
Index mA Thick Coll Time Red ASIR Scan
Time on 2.5 10 0.938 9.37 0.5 LS 16 helical large 120 100-440 12.50 NA NA 5.3 Opt 540 helical large 120 100-440 12.50 on 10 0.938 9.37 0.5 NA 2.5 NA 5.3 40 0.984 39.37 0.5 20 20 LS VCT 64 helical large body 120 100-450 16.00 on 2.5 1.3 Disc VCT 64 helical large body 140 100-610 14.14 on 2.5 40 0.516 20.625 0.6 NA NA 2.9 Window
Recon Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX BONE 2.5 2.5 bone full 2500/480 head/feet Must be first recon. COR BONE 2.5 2.5 bone full 2500/480 front/back SAG BONE 2.5 2.5 bone full 2500/480 left/right AX SOFT 2.5 2.5 std full 400/40 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 2.5 2.5 std full 400/40 head/feet Add the following recons for arthrograms: COR SOFT 2.5 2.5 std full 400/40 front/back SAG SOFT 2.5 2.5 std full 400/40 left/right PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Rot Scan
Mode kV Avg
mAs Index Dose Pitch Detect Colli Time Time Incisive 128 helical 120 129 22 on 0.80 64 0.625 1.00 3.1 Name of Series Thick Interval Filter Window iDose Recon
Direction AX BONE 3.0 3.0 YC bone 3 head/feet COR BONE 3.0 3.0 YC bone 3 front/back SAG BONE 3.0 3.0 YC bone 3 left/right AX SOFT 3.0 3.0 B abdomen 3 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 3.0 3.0 B abdomen 3 head/feet Add the following recons for arthrograms: COR SOFT 3.0 3.0 B abdomen 3 front/back SAG SOFT 3.0 3.0 B abdomen 3 left/right

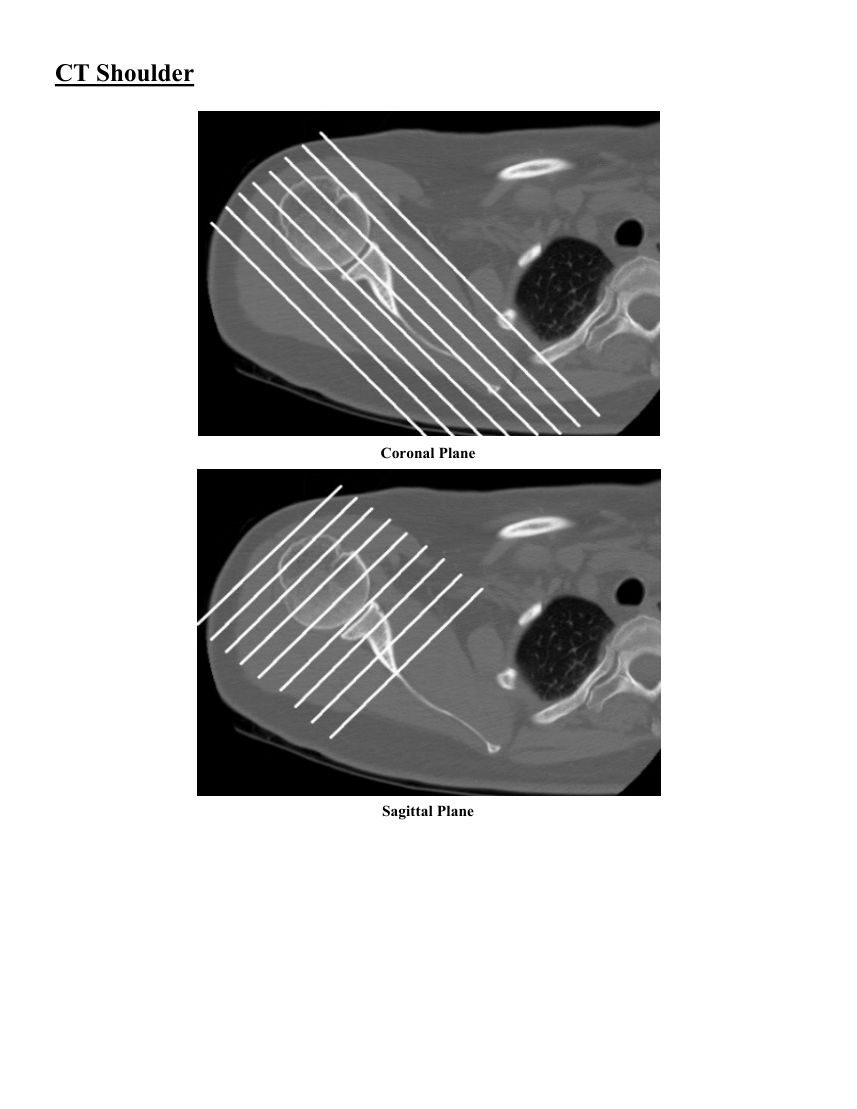

CT Shoulder Coronal Plane Sagittal Plane
