Documentul original MCB — Umăr Arthrex
Protocol · 3 pagini · consultat la 2026-09-27.
Descarcă PDF-ul integral · Sursa MCB · Catalogul MCB pentru această modalitate
Instrucțiunile, valorile și ilustrațiile din documentul original sunt păstrate în engleză. Titlul și navigarea sunt în română.

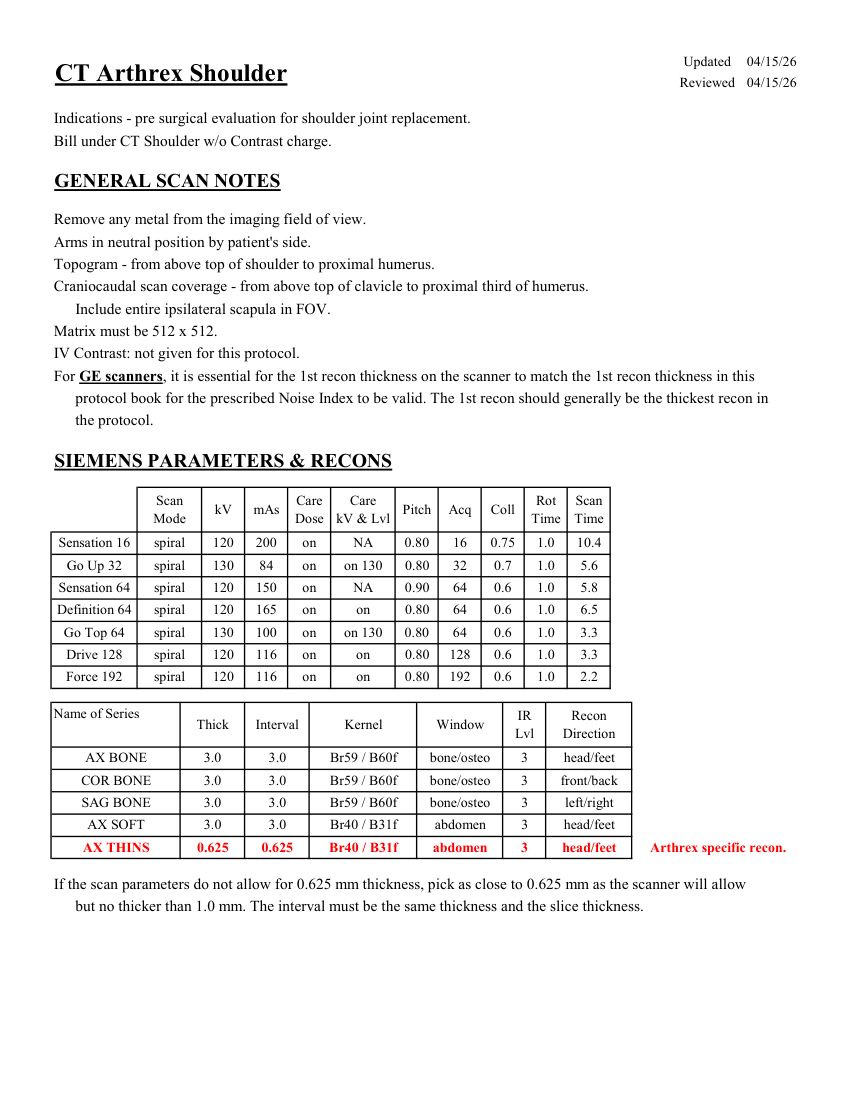

Pagina 1

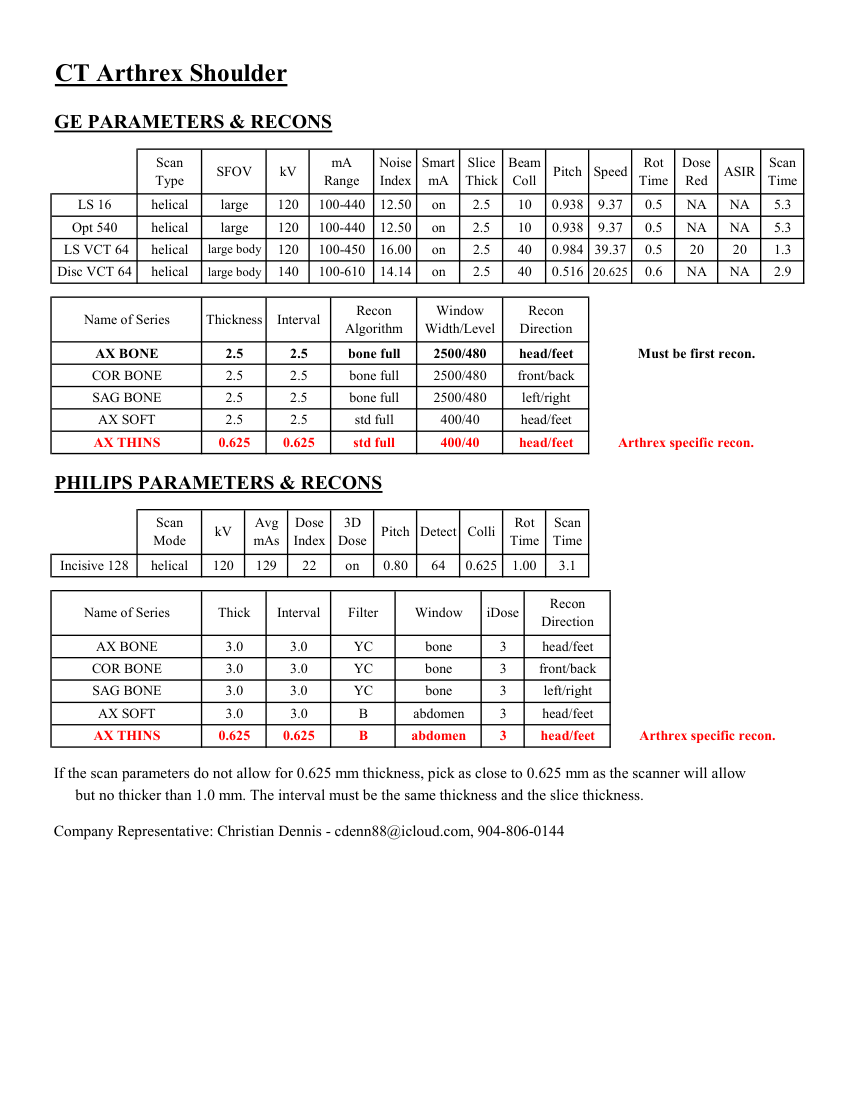

Pagina 2
Pagina 3
Textul documentului original
Pagina 1 — text în engleză
Updated 04/15/26 CT Arthrex Shoulder Reviewed 04/15/26 Indications - pre surgical evaluation for shoulder joint replacement. Bill under CT Shoulder w/o Contrast charge. GENERAL SCAN NOTES Remove any metal from the imaging field of view. Arms in neutral position by patient's side. Topogram - from above top of shoulder to proximal humerus. Craniocaudal scan coverage - from above top of clavicle to proximal third of humerus. Include entire ipsilateral scapula in FOV. Matrix must be 512 x 512. IV Contrast: not given for this protocol. For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in the protocol. SIEMENS PARAMETERS & RECONS Scan
Care
Scan
Pitch Acq Coll Rot Mode kV mAs Care
Dose kV & Lvl Time Time Sensation 16 spiral 120 200 on NA 0.80 16 0.75 1.0 10.4 Go Up 32 spiral 130 84 on 0.80 32 0.7 1.0 5.6 on 130 Sensation 64 spiral 120 150 on NA 0.90 64 0.6 1.0 5.8 Definition 64 spiral 120 165 on 0.80 64 0.6 1.0 6.5 on Go Top 64 spiral 130 100 on on 130 0.80 64 0.6 1.0 3.3 Drive 128 spiral 120 116 on on 0.80 128 0.6 1.0 3.3 Force 192 spiral 120 116 on on 0.80 192 0.6 1.0 2.2 Name of Series Recon
Thick Interval Kernel Window IR
Lvl Direction AX BONE 3.0 3.0 Br59 / B60f bone/osteo 3 head/feet COR BONE 3.0 3.0 Br59 / B60f bone/osteo 3 front/back SAG BONE 3.0 3.0 Br59 / B60f bone/osteo 3 left/right AX SOFT 3.0 3.0 Br40 / B31f abdomen 3 head/feet head/feet Arthrex specific recon. AX THINS 0.625 0.625 Br40 / B31f abdomen 3 If the scan parameters do not allow for 0.625 mm thickness, pick as close to 0.625 mm as the scanner will allow but no thicker than 1.0 mm. The interval must be the same thickness and the slice thickness.
Care
Scan
Pitch Acq Coll Rot Mode kV mAs Care
Dose kV & Lvl Time Time Sensation 16 spiral 120 200 on NA 0.80 16 0.75 1.0 10.4 Go Up 32 spiral 130 84 on 0.80 32 0.7 1.0 5.6 on 130 Sensation 64 spiral 120 150 on NA 0.90 64 0.6 1.0 5.8 Definition 64 spiral 120 165 on 0.80 64 0.6 1.0 6.5 on Go Top 64 spiral 130 100 on on 130 0.80 64 0.6 1.0 3.3 Drive 128 spiral 120 116 on on 0.80 128 0.6 1.0 3.3 Force 192 spiral 120 116 on on 0.80 192 0.6 1.0 2.2 Name of Series Recon
Thick Interval Kernel Window IR
Lvl Direction AX BONE 3.0 3.0 Br59 / B60f bone/osteo 3 head/feet COR BONE 3.0 3.0 Br59 / B60f bone/osteo 3 front/back SAG BONE 3.0 3.0 Br59 / B60f bone/osteo 3 left/right AX SOFT 3.0 3.0 Br40 / B31f abdomen 3 head/feet head/feet Arthrex specific recon. AX THINS 0.625 0.625 Br40 / B31f abdomen 3 If the scan parameters do not allow for 0.625 mm thickness, pick as close to 0.625 mm as the scanner will allow but no thicker than 1.0 mm. The interval must be the same thickness and the slice thickness.
Pagina 2 — text în engleză
CT Arthrex Shoulder GE PARAMETERS & RECONS Scan
Smart
Slice
Beam
Dose
Type SFOV kV mA
Range Noise
Index mA ASIR Scan
Thick Coll Pitch Speed Rot
Time Red Time LS 16 helical large 120 100-440 12.50 on 2.5 10 0.938 9.37 0.5 NA NA 5.3 Opt 540 helical large 120 100-440 12.50 on 2.5 10 0.938 9.37 0.5 NA NA 5.3 on 2.5 40 0.984 39.37 0.5 LS VCT 64 helical large body 120 100-450 16.00 20 20 1.3 Disc VCT 64 helical large body 140 100-610 14.14 on 2.5 40 0.516 20.625 0.6 NA NA 2.9 Window
Recon Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX BONE 2.5 2.5 bone full 2500/480 head/feet Must be first recon. COR BONE 2.5 2.5 bone full 2500/480 front/back SAG BONE 2.5 2.5 bone full 2500/480 left/right AX SOFT 2.5 2.5 std full 400/40 head/feet AX THINS 0.625 0.625 std full 400/40 head/feet Arthrex specific recon. PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Rot Scan
Mode kV Avg
mAs Index Dose Pitch Detect Colli Time Time Incisive 128 helical 120 129 22 on 0.80 64 0.625 1.00 3.1 Name of Series Thick Interval Filter Window iDose Recon
Direction AX BONE 3.0 3.0 YC bone 3 head/feet COR BONE 3.0 3.0 YC bone 3 front/back SAG BONE 3.0 3.0 YC bone 3 left/right AX SOFT 3.0 3.0 B abdomen 3 head/feet head/feet Arthrex specific recon. AX THINS 0.625 0.625 B abdomen 3 If the scan parameters do not allow for 0.625 mm thickness, pick as close to 0.625 mm as the scanner will allow but no thicker than 1.0 mm. The interval must be the same thickness and the slice thickness. Company Representative: Christian Dennis - [email protected], 904-806-0144
Smart
Slice
Beam
Dose
Type SFOV kV mA
Range Noise
Index mA ASIR Scan
Thick Coll Pitch Speed Rot
Time Red Time LS 16 helical large 120 100-440 12.50 on 2.5 10 0.938 9.37 0.5 NA NA 5.3 Opt 540 helical large 120 100-440 12.50 on 2.5 10 0.938 9.37 0.5 NA NA 5.3 on 2.5 40 0.984 39.37 0.5 LS VCT 64 helical large body 120 100-450 16.00 20 20 1.3 Disc VCT 64 helical large body 140 100-610 14.14 on 2.5 40 0.516 20.625 0.6 NA NA 2.9 Window
Recon Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX BONE 2.5 2.5 bone full 2500/480 head/feet Must be first recon. COR BONE 2.5 2.5 bone full 2500/480 front/back SAG BONE 2.5 2.5 bone full 2500/480 left/right AX SOFT 2.5 2.5 std full 400/40 head/feet AX THINS 0.625 0.625 std full 400/40 head/feet Arthrex specific recon. PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Rot Scan
Mode kV Avg
mAs Index Dose Pitch Detect Colli Time Time Incisive 128 helical 120 129 22 on 0.80 64 0.625 1.00 3.1 Name of Series Thick Interval Filter Window iDose Recon
Direction AX BONE 3.0 3.0 YC bone 3 head/feet COR BONE 3.0 3.0 YC bone 3 front/back SAG BONE 3.0 3.0 YC bone 3 left/right AX SOFT 3.0 3.0 B abdomen 3 head/feet head/feet Arthrex specific recon. AX THINS 0.625 0.625 B abdomen 3 If the scan parameters do not allow for 0.625 mm thickness, pick as close to 0.625 mm as the scanner will allow but no thicker than 1.0 mm. The interval must be the same thickness and the slice thickness. Company Representative: Christian Dennis - [email protected], 904-806-0144

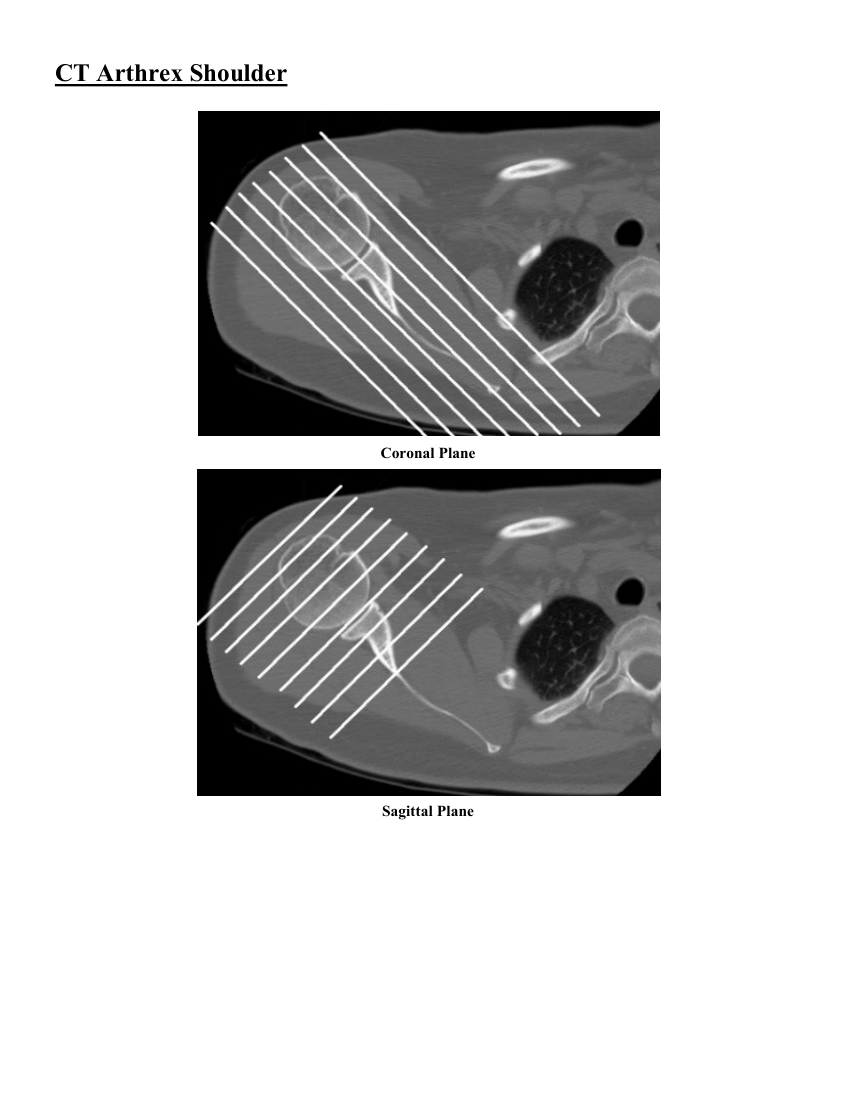

Pagina 3 — text în engleză
CT Arthrex Shoulder Coronal Plane Sagittal Plane
