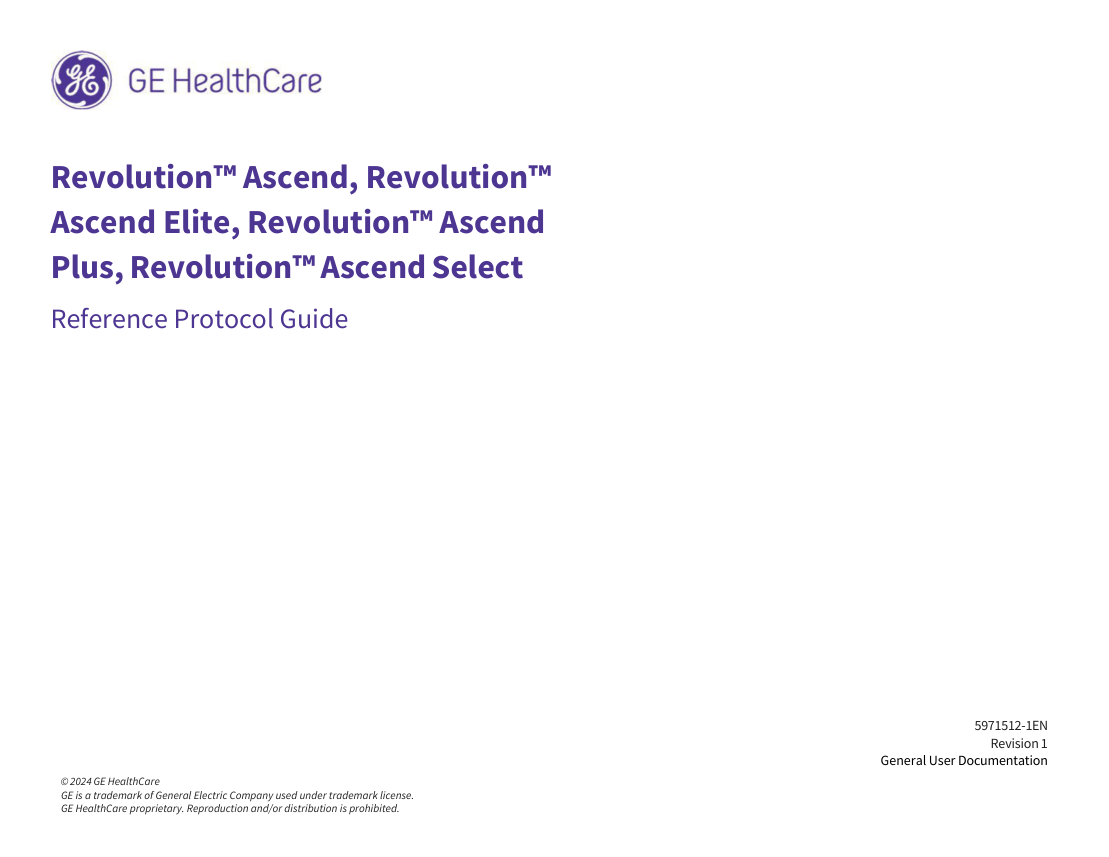

Pagina 1 — text în engleză

Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select Reference Protocol Guide
5971512-1EN Revision 1 General User Documentation © 2024 GE HealthCare GE is a trademark of General Electric Company used under trademark license.
 GE HealthCare proprietary. Reproduction and/or distribution is prohibited.

Pagina 2 — text în engleză

Page intentionally left blank

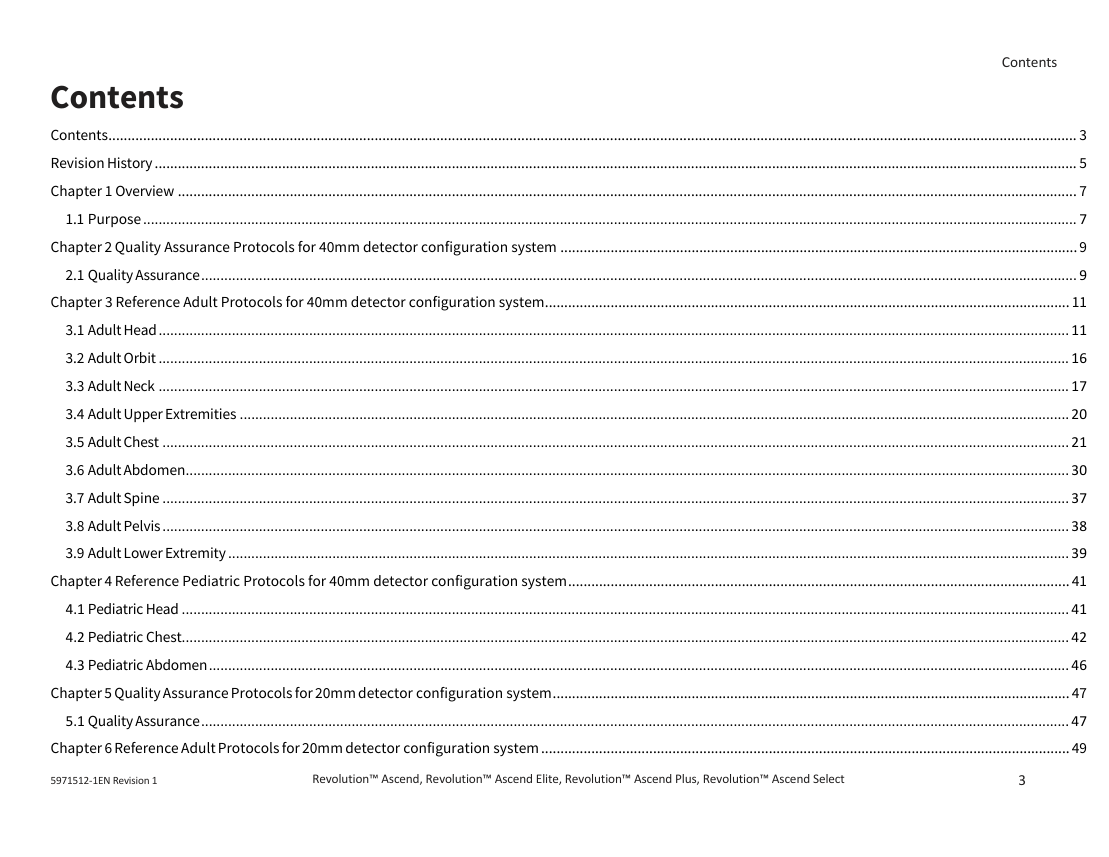

Pagina 3 — text în engleză

Contents Contents Contents ........................................................................................................................................................................................................................................................... 3 Revision History ............................................................................................................................................................................................................................................... 5 Chapter 1 Overview ......................................................................................................................................................................................................................................... 7 1.1 Purpose .................................................................................................................................................................................................................................................. 7 Chapter 2 Quality Assurance Protocols for 40mm detector configuration system ...................................................................................................................................... 9 2.1 Quality Assurance ................................................................................................................................................................................................................................... 9 Chapter 3 Reference Adult Protocols for 40mm detector configuration system ........................................................................................................................................ 11 3.1 Adult Head ............................................................................................................................................................................................................................................ 11 3.2 Adult Orbit ............................................................................................................................................................................................................................................ 16 3.3 Adult Neck ............................................................................................................................................................................................................................................ 17 3.4 Adult Upper Extremities ....................................................................................................................................................................................................................... 20 3.5 Adult Chest ........................................................................................................................................................................................................................................... 21 3.6 Adult Abdomen ..................................................................................................................................................................................................................................... 30 3.7 Adult Spine ........................................................................................................................................................................................................................................... 37 3.8 Adult Pelvis ........................................................................................................................................................................................................................................... 38 3.9 Adult Lower Extremity .......................................................................................................................................................................................................................... 39 Chapter 4 Reference Pediatric Protocols for 40mm detector configuration system .................................................................................................................................. 41 4.1 Pediatric Head ...................................................................................................................................................................................................................................... 41 4.2 Pediatric Chest ...................................................................................................................................................................................................................................... 42 4.3 Pediatric Abdomen ............................................................................................................................................................................................................................... 46 Chapter 5 Quality Assurance Protocols for 20mm detector configuration system ...................................................................................................................................... 47 5.1 Quality Assurance ................................................................................................................................................................................................................................. 47 Chapter 6 Reference Adult Protocols for 20mm detector configuration system ......................................................................................................................................... 49 3 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 4 — text în engleză

Contents 6.1 Adult Head ............................................................................................................................................................................................................................................ 49 6.2 Adult Orbit ............................................................................................................................................................................................................................................ 53 6.3 Adult Neck ............................................................................................................................................................................................................................................ 54 6.4 Adult Upper Extremities ....................................................................................................................................................................................................................... 57 6.5 Adult Chest ........................................................................................................................................................................................................................................... 58 6.6 Adult Abdomen ..................................................................................................................................................................................................................................... 65 6.7 Adult Spine ........................................................................................................................................................................................................................................... 71 6.8 Adult Pelvis ........................................................................................................................................................................................................................................... 72 6.9 Adult Lower Extremity .......................................................................................................................................................................................................................... 73 Chapter 7 Reference Pediatric Protocols for 20mm detector configuration system ................................................................................................................................... 75 7.1 Pediatric Head ...................................................................................................................................................................................................................................... 75 7.2 Pediatric Chest ...................................................................................................................................................................................................................................... 76 7.3 Pediatric Abdomen ............................................................................................................................................................................................................................... 80 5971512-1EN Revision 1 4 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 5 — text în engleză

Revision History Revision History
Revision Date Reason For Change
1 August 2024 Initial Release. The original language of this document is English, Direction Number 5971512-1EN, Revision 1, and is applicable to Revolution Ascend 1.0 software 24MW10.xx for Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select.
5 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 6 — text în engleză

Revision History Page intentionally left blank 5971512-1EN Revision 1
6 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 7 — text în engleză

Overview Chapter 1 Overview 1.1 Purpose This document provides a list of parameters provided in the GE Reference Adult and GE Reference Pediatric protocol selector. The protocols in Reference Adult Protocols are based on the parameters needed to scan an average-sized adult, and factor in the clinical aim of the protocols. The protocols in Reference Pediatric Protocols are based on age in the Head area, and in the rest of the body, use Color Coding for Kids. These protocols are designed as a starting point. They should be reviewed with your Radiologist, Physicist, and Radiation Safety Officer and revised as needed to meet the clinical needs of your department. The document is divided into protocol categories available on the system. The table for each category lists the Protocol Number, Protocol Name, Post Processing software associated with the protocol, Scan Type, SFOV, Pitch/Table Speed in mm/rotation, Rotation Time, Detector Coverage, kV, mA, SmartmA with Min/Max mA and Noise Index, Recon Type, ASiR-V Level in %, CTDIvol (mGy), DLP (mGycm), Scan Length, Phantom Type used for dose calculations and Description. Manual mA mode allows you to scan without enabling SmartmA mode. When building protocols, make sure the mA value field contains a reasonable mA value in the event that SmartmA is turned off. In GE Reference Adult Protocols, the Average (Avg) mA provided in the tables within this document are what is used in calculating the CTDI and DLP for protocols using SmartmA. The Avg mA value provided in the table is an estimate based on an average patient size (32 - 36 cm). The actual Avg mA for each image is calculated using all of the mA values for each scan rotation, as determined by SmartmA for the patient.
 All dose information described is based on NG1700 Elite, NG2000 Elite, VT1700 and VT2000 table. Use CTDI Adjustment Factors below to covert CTDI for VT2000x table. CTDI Adjustment Factors for VT2000x table Ped Body Ped Head Large Body Small Body Head Cardiac Large Cardiac Small 0.977 0.985 0.983
NOTE The mA and dose information described in all protocols is based on a system with the 0.35 second option. If the fastest rotation time for your system is 0.4sec, 0.5 sec or 0.7 sec, the mA and dose information is automatically adjusted according to the fastest rotation time available on your system for all protocols where there is a rotation mismatch. If your system is 55.3kW or 5.5MHU tube, Max mA is changed to maximum mA value of each system.
7 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 8 — text în engleză

Overview NOTE ** These protocols are installed options. As a result, the numbering is a function of when and where the option is installed. NOTE Some protocols are restricted by detector configuration. Therefore, protocol numbers that do not fit the 20mm configuration will be left blank. 5971512-1EN Revision 1
8 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 9 — text în engleză

Reference Protocol Guide Chapter 2 Quality Assurance Protocols for 40mm detector configuration system 2.1 Quality Assurance Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. Slice
Pitch mA
Rotation Detector Recon Thickness % DLP
Protocol Protocol Post Scan Recon CTDIVOI Phantom SFOV kV Description Time Coverage Range (mm) Table Speed Min- Max (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) (seconds) (mm) (mm) Interval* (mm/s) NI (mm) 30.1 Example ACR Protocols
Axial Large Body
0.5 5 40 120 270 STD 50 11.32 135.84 120 Body 32 Example protocols for ACR accreditation scans
Axial Head
1 5 20 120 170 STD 50 28.76 402.67 140 Head 16 Example protocols for ACR accreditation scans 0.984
Helical Large Body 78.75 0.5 5 40 120 220 STD 50 9.37 178.72 160 Body 32 Example protocols for ACR accreditation scans
Axial Ped Body
0.35 5 40 120 90 STD 50 2.31 27.73 120 Body 32 Example protocols for ACR accreditation scans
Axial Ped Head
0.5 5 20 120 190 STD 50 16.07 225.02 140 Head 16 Example protocols for ACR accreditation scans 0.984
Helical Ped Body 112.5 0.35 5 40 120 80 STD 50 2.09 39.7 160 Body 32 Example protocols for ACR accreditation scans
9 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 10 — text în engleză

Reference Protocol Guide Page intentionally left blank 5971512-1EN Revision 1
10 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 11 — text în engleză

Reference Protocol Guide Chapter 3 Reference Adult Protocols for 40mm detector configuration system 3.1 Adult Head Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. SFOV kV Description CTDIvol (mGy) Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) mA Min-Max NI DLP (mGy- cm) Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) 21.1 CT HEAD
Axial Head
 1 5 20 120 200 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities
21.2 Axial Head 1 5 20 120 STD# 50 33.84 473.73 140 Head 16 CT HEAD with ODM Routine head for evaluation of brain for abnormalities SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 200
Helical Head 0.531 21.3 CT HEAD Helical 0.8 0.625 20 120 90 STD# 50 22.93 223.08 80.625 Head 16 Routine head for evaluation of brain for abnormalities 13.28
21.4 MIROI Axial Head 5 120 50 STD 0 117.09 58.54 5 1 5 0 Head 16 Test bolus for determining prep delay CT HEAD ANGIO CIRC WILLIS
Helical Head 0.531 0.5 0.625 20 120 120 STD 50 19.11 185.97 80.625 Head 16 21.25 CT angiography of the head for evaluation of cerebral vasculature
21.5 MIROI Axial Head 1 5 120 50 STD 0 117.09 58.54 5 Head 16 5 0 Test bolus for determining prep delay CT HEAD ANGIO CIRC WILLIS with ODM Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select
11 5971512-1EN Revision 1

Pagina 12 — text în engleză

Reference Protocol Guide SFOV kV Description CTDIvol (mGy) Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) mA Min-Max NI DLP (mGy- cm) Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm)
0.531 Helical Head 0.5 0.625 20 120 STD 50 19.11 185.97 80.625 Head 16 21.25 CT angiography of the head for evaluation of cerebral vasculature SmartmA & ODM
 50–400 mA
 NI=7 Avg mA 120
21.6 Axial Head 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Routine head for evaluation of brain for abnormalities CT HEAD PERFUS WO & W PREFUS Cine SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170
Perfusion Cine Head 1 40 80 STD 50 255.15 1020.6 40 Head 16 5 0 CT Perfusion using Cine scan mode for evaluation of cerebral perfusion over time SmartmA & ODM
 100–200 mA NI=8.0 Avg mA 100
Axial Head 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Post Contrast Brain, Evaluation for residual tissue enhancement SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170
21.7 Axial Head 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Routine head for evaluation of brain for abnormalities CT HEAD PERFUS WO & W PREFUS Axial SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170
Perfusion Axial Head 1 40 80 STD 50 125.71 502.84 40 Head 16 5 0 CT Perfusion using Axial scan mode for evaluation of cerebral perfusion over time SmartmA & ODM mA 100– 200 mA NI=8.0 Avg mA 100
Axial Head 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Post Contrast Brain, Evaluation for residual tissue enhancement SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 5971512-1EN Revision 1
12 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 13 — text în engleză

Reference Protocol Guide SFOV kV Description CTDIvol (mGy) Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) mA Min-Max NI DLP (mGy- cm) Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm)
21.8 Axial Head 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Routine head for evaluation of brain for abnormalities SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 CT HEAD PERFUS WO 4PHASE mCTA PREFUS Cine
0.984 Group 1 DMPR Helical 0.5 0.625 40 120 STD 50 15.27 619.74 370.625 Body 32 Small Body 78.75 CT angiography of the neck and head evaluation of carotid and cerebral vasculature SmartmA & ODM
 50-500 mA NI=13.8 Avg mA 410
0.984 Group 2 DMPR Helical 0.5 0.625 40 120 STD 50 15.27 253.15 130.625 Body 32 Small Body 78.75 CT angiography of the head evaluation of cerebral vasculature SmartmA & ODM
 50-500 mA NI=13.8 Avg mA 410
0.984 Group 3 DMPR Helical 0.5 0.625 40 120 STD 50 15.27 253.15 130.625 Body 32 Small Body 78.75 Delayed CT angiography of the head evaluation of cerebral vasculature SmartmA & ODM
 50-500 mA NI=13.8 Avg mA 410
0.984 Group 4 DMPR Helical 0.5 0.625 40 120 STD 50 15.27 253.15 130.625 Body 32 Small Body 78.75 Delayed CT angiography of the head evaluation of cerebral vasculature SmartmA & ODM
 50-500 mA NI=13.8 Avg mA 410
Perfusion Cine Head 1 40 80 STD 50 255.15 1020.6 40 Head 16 5 0 CT Perfusion using Cine scan mode for evaluation of cerebral perfusion over time SmartmA & ODM
 100–200 mA NI=8.0 Avg mA 100
0.531 21.9** Helical Head 0.8 0.625 20 120 90 STD # 50 22.93 223.08 80.625 Head 16 CT HEAD Helical MAR 13.28 Routine head for evaluation of brain for abnormalities with Metal Artifact Reduction Reconstructions included
13 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 14 — text în engleză

Reference Protocol Guide SFOV kV Description CTDIvol (mGy) Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) mA Min-Max NI DLP (mGy- cm) Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval (mm) 21.10* 5 120 50 STD 0 117.09 58.54 5 Head 16 Test bolus for determining prep delay MIROI Axial Head
 1 5 0 CT HEAD ANGIO CIRC WILLIS MAR 0.5 0.625 20 120 120 STD 50 19.11 185.97 80.625 Head 16
Helical Head 0.531 21.25 CT angiography of the head for evaluation of cerebral vasculature with Metal Artifact Reduction Reconstructions included 21.11**
Axial Head
 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Routine head for evaluation of brain for abnormalities CT HEAD PERFUS WO & W PREFUS Axial Shuttle SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 SmartmA
 17 pass STD 50 97.14 777.11 80 Head 16
Perfusion Axial Head 0.5 5 40 80 2 positions CT Perfusion using Axial Shuttle scan mode for evaluation of cerebral perfusion over time 100–400 mA NI=8.0 Avg mA 200 STD# 50 28.76 402.67 140 Head 16
Axial Head
 1 5 20 120 Post Contrast Brain, Evaluation for residual tissue enhancement SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 21.12 CT HEAD DLIR
 Axial Head
 1 5 20 120 200 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities with DLIR STD# 50 33.84 473.73 140 Head 16 21.13 CT HEAD with ODM DLIR
Axial Head
1 5 20 120 Routine head for evaluation of brain for abnormalities with DLIR SmartmA &
 ODM
 100–340 mA NI=2.8
 Avg mA 200 0.531 0.8 0.625 20 120 90 STD# 50 22.93 223.08 80.625 Head 16 21.14** CT HEAD Helical DLIR
Helical Head 13.28 Routine head for evaluation of brain for abnormalities with DLIR 5 21.15** MIROI Axial Head
1 5 120 50 STD 0 117.09 58.54 5 Head 16 Test bolus for determining prep delay 0 CT HEAD ANGIO CIRC WILLIS DLIR
5971512-1EN Revision 1
14 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 15 — text în engleză

Reference Protocol Guide SFOV kV Description CTDIvol (mGy) Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) mA Min-Max NI DLP (mGy- cm) Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm)
Helical Head 0.531 21.25 0.5 0.625 20 120 120 STD 50 19.11 185.97 80.625 Head 16 CT angiography of the head for evaluation of cerebral vasculature with DLIR 21.16** MIROI Axial Head
1 5 0 5 120 50 STD 0 117.09 58.54 5 Head 16 Test bolus for determining prep delay CT HEAD ANGIO CIRC WILLIS with ODM DLIR STD 50 19.11 185.97 80.625 Head 16
Helical Head 0.531 21.25 0.5 0.625 20 120 CT angiography of the head for evaluation of cerebral vasculature with DLIR SmartmA &
 ODM 50–400 mA
 NI=7 Avg mA 120
15 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 16 — text în engleză

Reference Protocol Guide 3.2 Adult Orbit Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. SFOV kV Description CTDIvol (mGy) Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) DLP (mGy- cm) Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) Pitch Table Speed (mm/s) mA Min- Max NI Slice Thickness (mm) Interval* (mm)
Helical Head 0.531 1 0.625 20 120 75 BONE 50 23.89 232.33 80.625 22.1 CT HEAD SINUSES Supine Head 16 Axial Sinus protocol, Evaluation for any abnormality 10.63
0.969 22.2 CT HEAD ORBITS Helical Head 0.5 0.625 20 120 110 STD 50 9.61 36.01 19.375 Head 16 38.75 Axial Orbit protocol, Evaluation for abnormality soft tissues and bone structures of the orbit and face
22.3 CT HEAD FACL BNS Helical Head 0.969 1 0.625 20 120 50 13.97 129.96 75 80 BONE PLUS Head 16 Axial Facial Bone protocol, Evaluation for soft tissue and bone structures of the face 19.38
22.4 CT HEAD IAC 140 kV Axial Head 2 1.25 20 140 50 38.08 152.32 40 80 BONE PLUS Head 16 Axial scan mode, Evaluation for inner ear abnormalities
Helical Head 0.531 1 0.625 20 140 50 38.08 213.35 39.375 22.5 CT HEAD IAC Helical 140 kV 85 BONE PLUS Head 16 Helical scan mode, Evaluation for inner ear abnormalities 10.63 5971512-1EN Revision 1
16 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 17 — text în engleză

Reference Protocol Guide 3.3 Adult Neck Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed.
Slice
Pitch
Rotation Detector mA Recon Thickness % DLP
CTDIvol Protocol Protocol Post Scan Recon Phantom SFOV kV Description Min-Max Time Coverage Range (mm) Table Speed (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) NI (seconds) (mm) (mm) Interval* (mm/s) (mm) 0.516 0.8 0.625 40 120 BONE PLUS 50 20.17 290.55 110.625 Body 32 23.1 CT CERVICAL SPINE DMPR DMPR Helical Large Body 25.78 C-Spine Helical mode with DMPR, Evaluation for bone, disc and soft tissue abnormalities SmartmA & ODM
 50–500 mA NI=12.6 Avg mA 155 0.984 STD 50 8.52 157.71 150.625 Body 32 0.5 0.625 40 120 23.2 DMPR Helical Large Body 78.75 Soft Tissue Neck Evaluation of soft tissue structures for abnormality CT NECK SFT TISS NECK DMPR SmartmA & ODM
 50–500 mA NI=12.6 Avg mA 200 0.516 23.3 0.5 0.625 40 120 STD 50 12.2 249.0 170.625 Body 32 Carotid CTA Evaluation of carotid vasculature DMPR Helical Large Body 41.25 CT NECK ANGIO SmartPrep DMPR SmartmA & ODM
 80–500 mA NI=11 Avg mA 150
5 23.4 MIROI Axial Head 1.0 5 120 60 STD 0 140.5 70.25 5 Head 16 Test bolus for determining prep delay 0 CT HEAD NECK CIRC WILLIS CAR ART
17 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 18 — text în engleză

Reference Protocol Guide Slice
Pitch
Rotation Detector mA Recon Thickness % DLP
Protocol Protocol Post Scan Recon CTDIvol Phantom SFOV kV Description Min-Max Time Coverage Range (mm) Table Speed (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) NI (seconds) (mm) (mm) Interval* (mm/s) (mm) 0.516 STD 50 12.2 249.0 170.625 Body 32 0.5 0.625 40 120
Helical Large Body 41.25 CT angiography of the neck and head evaluation of carotid and cerebral vasculature Smart mA & ODM
 80–500 mA NI=11 Avg mA 150 5 23.5 MIROI Axial Head
1 5 120 60 STD 0 140.5 70.25 5 Head 16 Test bolus for determining prep delay 0 CT HEAD NECK CIRC WILLIS CAR ART Hi Res 0.516 DTL 50 12.2 249.0 170.625 Body 32 0.5 0.625 40 120
Helical Large Body 41.25 CT angiography of the neck and head evaluation of carotid and cerebral vasculature Smart mA & ODM 80–500 mA NI=11 Avg mA 150 0.516 0.8 0.625 40 120 23.6 BONE PLUS 50 20.17 290.55 110.625 Body 32 DMPR Helical Large Body 25.78 CT CERVICAL SPINE DMPR MAR SmartmA 50–500 mA NI=12.6 Avg mA 155 C-Spine Helical mode with DMPR, Evaluation for soft tissue, disc and bone abnormalities with Metal artifact reduction reconstruction 0.984 STD 50 8.52 157.71 150.625 Body 32 23.7 0.5 0.625 40 120 DMPR Helical Large Body 78.75 CT NECK SFT TISS NECK DMPR MAR Soft Tissue Neck Evaluation of soft tissue structures for abnormality with metal artifact reductions. SmartmA 50–500 mA NI=12.6 Avg mA 200 5 23.8** MIROI Axial Head
1.0 5 120 60 STD 0 140.5 70.25 5.0 Head 16 Test bolus for determining prep delay 0 CT HEAD NECK CIRC WILLIS CAR ART MAR 5971512-1EN Revision 1
18 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 19 — text în engleză

Reference Protocol Guide Slice
Pitch
Rotation Detector mA Recon Thickness % DLP
Protocol Protocol Post Scan Recon CTDIvol Phantom SFOV kV Description Min-Max Time Coverage Range (mm) Table Speed (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) NI (seconds) (mm) (mm) Interval* (mm/s) (mm) 0.516 STD 50 12.2 249.0 170.625 Body 32 0.5 0.625 40 120
Helical Large Body 41.25 ODM
 80–500 mA NI=11 Avg mA 150 CT angiography of the neck and head evaluation of carotid and cerebral vasculature with metal artifact reduction reconstructions included 23.9 BONE PLUS 50 20.17 290.55 110.625 Body 32 DMPR Helical Large Body 0.516 25.78 0.8 0.625 40 120 CT CERVICAL SPINE DMPR DLIR C-Spine Helical mode with DMPR, Evaluation for bone, disc and soft tissue abnormalities with DLIR SmartmA & ODM 50–500 mA NI=12.6 Avg mA 155 STD 50 8.52 157.71 150.625 Body 32 23.10 DMPR Helical Large Body 0.984 78.75 0.5 0.625 40 120 Soft Tissue Neck Evaluation of soft tissue structures for abnormality with DLIR CT NECK SFT TISS NECK DMPR DLIR SmartmA & ODM 50–500 mA NI=12.6 Avg mA 200 23.11 DMPR Helical Large Body 0.516 41.25 0.5 0.625 40 120 STD 50 12.2 249.0 170.625 Body 32 Carotid CTA Evaluation of carotid vasculature with DLIR CT NECK ANGIO SmartPrep DMPR DLIR SmartmA & ODM 80–500 mA NI=11
 Avg mA 150 23.12 MIROI Axial Head
1.0 5 0 5 120 60 STD 0 140.5 70.25 5 Head 16 CT HEAD NECK CIRC WILLIS CAR ART DLIR
Test bolus for determining prep delay STD 50 12.2 249.0 170.625 Body 32
Helical Large Body 0.516 41.25 0.5 0.625 40 120 CT angiography of the neck and head evaluation of carotid and cerebral vasculature with DLIR Smart mA & ODM 80–500 mA NI=11 Avg mA 150
19 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 20 — text în engleză

Reference Protocol Guide 3.4 Adult Upper Extremities Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed.
Slice
Pitch
Thickness Rotation Detector mA Recon DLP
CTDIvol Protocol Protocol Post Scan Recon % Phant (mm) SFOV kV Description Min-Max NI Time Coverage Range Table Speed (mGy) Number Name Process Type Type ASiR-V om Interval (mGy- cm) (seconds) (mm) (mm) (mm/s) (cm) (mm) 0.516 1.25 24.1 1 40 140 STD 50 25.87 346.8 101.25 Body 32 ODM
 80–500 mA NI=21.4 DMPR Helical Large Body 20.63 0.625 CT UPPER EXTREMITY SHOULDER Avg mA 110 Shoulder with DMPR, Evaluation of soft tissue and bone of shoulder area 0.516 1.25 24.2 1 40 140 STD 50 25.87 346.8 101.25 Body 32 DMPR Helical Large Body 0.625 20.63 ODM
 80–500 mA NI=21.4 Avg mA 110 CT UPPER EXTREMITY SHOULDER MAR Shoulder with DMPR, Evaluation of soft tissue and bone of shoulder area with Metal Artifact reduction reconstructions included STD 50 25.87 346.8 101.25 Body 32 24.3* DMPR Helical Large Body 0.516 20.63 1 1.25 0.625 40 140 ODM 80–500 mA
 NI=21.4 Avg mA 110 Shoulder with DMPR, Evaluation of soft tissue and bone of shoulder area with DLIR CT UPPER EXTREMITY SHOULDER DLIR 5971512-1EN Revision 1
20 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 21 — text în engleză

Reference Protocol Guide 3.5 Adult Chest Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. Slice
Pitch mA Rotation Detector Recon Thickness
DLP
Protocol Protocol Post Scan Recon % CTDIvol Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (mGy) (cm) (mGy- cm) Speed (seconds) (mm) (mm) Interval* (mm/s) (mm) SmartmA
 1.375 STD 50 3.81 139.94 322.5 Body 32 0.5 2.5 40 120 25.1 CT CHEST SmartPrep DMPR Helical Large Body 110 Evaluation of chest region for abnormalities with SmartPrep and DMPR 50-500 mA NI=18 Avg mA 125 SmartmA 1.375 0.5 5.0 40 120 STD 50 3.81 114.92 255.00 Body 32 Evaluation of chest region for abnormalities 25.2 CT CHST ABD PEL
Helical Large Body 110 50-500 mA NI=13 Avg mA 125 SmartmA
 0.984 STD 50 5.75 166.47 255.00 Body 32 0.5 5.0 40 120
Group 2
Helical Large Body 78.75 Evaluation of abdominal pelvic region for abnormalities 50-500 mA NI=12 Avg mA 135 SmartmA 0.984 50–500 mA
 0.5 0.625 40 120 25.3 CT NECK CHST ABD PEL DMPR Helical Large Body STD 50 8.52 221.07 225 Body 32 Evaluation of Neck region for abnormalities 78.75 NI=12.6 Avg mA 200
21 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 22 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed (seconds) (mm) (mm) Interval* (mm/s) (mm)
Group 2 DMPR Helical Large Body 1.531 122.5 0.5 0.625 40 120 STD 50 5.48 193.37 300 Body 32 Evaluation of Chest region for abnormalities SmartmA 50-500 mA NI=22.0 Avg mA 200 STD 50 13.97 614.65 405 Body 32
Group 3 DMPR Helical Large Body 0.984 49.22 0.8 0.625 40 120 Evaluation of abdominal
 and pelvic region for abnormalities SmartmA 50-500mA
 NI=18 Avg mA 205 25.4 CT CHST ANGIO
 Helical Large Body 0.984 78.75 0.5 0.625 40 120 STD 50 7.67 256.94 300.625 Body 32 Evaluation of thoracic aortic aneurysm SmartmA 50-500 mA NI=22.1 Avg mA 180 STD 50 12.35 414.68 301.25 Body 32 25.5
Helical Large Body 0.984 78.75 0.5 1.25 40 120 CT CHST ANGIO PULM ARTS SmartPrep Evaluation of thoracic vasculature for abnormalities. SmartmA 50-500 mA NI=21.4 Avg mA 290 25.6 Helical Large Body 0.969 38.75 0.5 1.25 20 120 120 BONE 50 5.45 119.3 201.25 Body 32 CT CHST LO DOSE Assessment Advanced Lung Analysis Acquisition of data for Advanced Lung Analysis (ALA) software for lung nodule assessment 5971512-1EN Revision 1
22 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 23 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed (seconds) (mm) (mm) Interval* (mm/s) (mm) 25.7 CT CHST Hi Res
Axial Large Body
0.5 1.25 10 1.25 120 190 Bone Plus 50 2.65 13.26 41.25 Body 32 Axial scan mode, Evaluation of lung fields in high resolution mode
Axial Large Body
0.5 1.25 10 1.25 120 190 Bone Plus 50 2.65 13.26 41.25 Body 32 Axial scan mode, Evaluation of lung fields in high resolution mode
Axial Large Body
0.5 1.25 10 1.25 120 190 Bone Plus 50 2.65 13.26 41.25 Body 32 Axial scan mode, Evaluation of lung fields in high resolution mode STD 50 4.85 67.88 140 Body 32 25.8** COR ARTS CALC SCORE SmartScore Cardiac Large
0.35 2.5 40 120 Cardiac SmartSc ore Prospectively gated Cardiac Cine scan for acquisition of data for coronary artery calcification analysis SmartmA 50–400 mA NI=20 Avg mA 215 STD 50 22.55 393.13 140 Body 32 Cardiac Large 0.22 25.14 0.35 0.625 40 120 25.9** COR ARTS CCTA SmartPrep
Cardiac SSSeg Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries SmartmA 50-500 mA NI=30 Avg mA 169
ECG mA Phase 70-80 62-310 mA
23 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 24 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed (seconds) (mm) (mm) Interval (mm/s) (mm) 25.10* COR ARTS CCTA MIROI Axial Large Body
1 5 0 5 120 40 STD 0 49.17 24.59 5 Body 32 Timing bolus scan for Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries SmartmA
 50-500 mA NI=30 Avg mA 169 STD 50 22.55 393.13 140 Body 32 Cardiac Large 0.22 25.14 0.35 0.625 40 120
Cardiac SSSeg Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries ECG mA Phase 70-80 62-310 mA 0 5 120 40 STD 0 49.17 24.59 5 Body 32 25.11** COR ARTS CCTA Low Dose MIROI Axial Large Body
1 5 Timing bolus scan for Prospectively gated Cardiac Cine scan for evaluation of coronary arteries SmartmA
 STD 50 5.42 75.95 140 Body 32
Cardiac SSP Cardiac Small
0.35 0.625 40 120 Prospectively gated Cardiac Cine scan for evaluation of coronary function 50–500mA NI=30 Avg mA 275 Phase 70-80 25.12** COR ARTS CCTA Hi Res MIROI Axial Large Body
1 5 0 5 120 40 STD 0 49.17 24.59 5 Body 32 Timing bolus scan for Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries 5971512-1EN Revision 1
24 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 25 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed (seconds) (mm) (mm) Interval* (mm/s) (mm) SmartmA
 50-500mA NI=30 Avg mA 169 DTL 50 22.55 393.13 140 Body 32
Cardiac SSSeg Cardiac Large 0.22 25.14 0.35 0.625 40 120 Retrospectively gated Cardiac Helical scan using Detail for evaluation of coronary arteries ECG mA Phase 70-80 62-310mA 25.13** COR ARTS CCTA Function MIROI Axial Large Body
1 5 0 5 120 40 STD 0 49.17 24.59 5 Body 32 Timing bolus scan for Retrospectively gated Cardiac Helical scan for evaluation of coronary function SmartmA
 STD 50 36.17 630.77 140 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 120 Retrospectively gated Cardiac Helical scan for evaluation of coronary function 50-500 mA NI=30 Avg mA 310 SmartmA
 0.22 50–500mA NI=30 Avg mA 285 STD 50 38.02 665.35 140.625 Body 32 25.14** ANGIO HEART TAVI TAVR
Cardiac SSSeg
 Cardiac Large 25.14 0.35 0.625 40 120 Retrospectively gated Cardiac Helical scan for evaluation of coronary function, valve implantation planning and valve replacement planning ECG mA Phase 25-80 62-310 mA SmartmA
 STD 50 3.73 199.5 500.625 Body 32 Helical scan for valve planning
Group 2
Helical Large Body 0.984 112.5 0.35 0.625 40 120 50–500mA NI=30 Avg mA 125
25 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 26 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed (seconds) (mm) (mm) Interval* (mm/s) (mm) 25.15 CT CHEST for Advantage 4D Advantage 4D Cine Large Body
0.5 2.5 0 40 120 160 STD 50 72.75 2327.93 320 Body 32 Cine scan mode for acquisition data for Advantage 4D for retrospective gating SmartmA
 STD 50 3.81 139.94 320.625 Body 32 1.375 110.00 0.5 0.625 40 120 25.16 CT CHEST SmartPrep MAR DMPR Helical Large Body 50-500 mA
 NI=22 Avg mA 125 Evaluation of Neck region for abnormalities with SmartPrep and DMPR with Metal Artifact reduction reconstructions included 25.17 STD 50 12.35 414.68 301.25 Body 32
Helical Large Body 0.984 78.75 0.5 1.25 40 120 CT CHST ANGIO PULM ARTS SmartPrep MAR Evaluation of thoracic vasculature for abnormalities. SmartmA
 50-500 mA NI=21.4 Avg mA 290 25.18**
Helical Large Body 0.984 78.75 0.5 2.5 2.0 40 120 30 STD 0 Optional 1.28 36.43 252.5 Body 32 Low dose helical scan for evaluation of Lung Cancer Screening CT Low Dose Lung Cancer Screening 50-70 kg (110-155 lbs) 25.19**
Helical Large Body 0.984 78.75 0.5 2.5 2.0 40 120 50 STD 0 Optional 2.13 60.72 252.5 Body 32 Low dose helical scan for evaluation of Lung Cancer Screening CT Low Dose Lung Cancer Screening 70-90 kg (155-200 lbs) 25.20**
Helical Large Body 0.984 78.75 0.5 2.5 2.0 40 120 80 STD 0 Optional 3.41 97.16 252.5 Body 32 Low dose helical scan for evaluation of Lung Cancer Screening CT Low Dose Lung Cancer Screening 90- 120 kg (200-265 lbs) 5971512-1EN Revision 1
26 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 27 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed (seconds) (mm) (mm) Interval (mm/s) (mm) SmartmA
 STD 50 3.21 117.84 322.5 Body 32 25.21 DMPR Helical Large Body 1.375 110.00 0.5 2.5 40 100 Evaluation of chest region for abnormalities with SmartPrep and DMPR CT CHEST SmartPrep Auto Prescription 70-480 mA NI=19.4 Avg mA 170 SmartmA
 25.22* CT CHST ANGIO Auto Prescription
 Helical Large Body 0.984 78.75 0.5 0.625 40 100 STD 50 6.46 216.92 300.625 Body 32 Evaluation of thoracic aortic aneurysm 70-480 mA
 NI=23.8 Avg mA 245
0.22 25.23** 0.35 0.625 40 100 STD 50 19.0 331.29 140 Body 32 Cardiac Large
Cardiac SSSeg 25.14 COR ARTS CCTA SmartPrep Auto Prescription Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries SmartmA
 50-480 mA NI=32.4 Avg mA 230
ECG mA Phase 70-80
 84-420 mA 25.24 STD 50 3.81 139.94 322.5 Body 32 DMPR Helical Large Body 1.375 110 0.5 2.5 40 120 CT CHEST SmartPrep True Enhance DL Evaluation of chest region for abnormalities with SmartPrep and DMPR with True Enhance DL SmartmA
 50-500 mA
 NI=18 Avg mA 125 STD 50 7.67 256.94 300.625 Body 32 25.25 CT CHST ANGIO True Enhance DL
Helical Large Body 0.984 78.75 0.5 0.625 40 120 Evaluation of thoracic aortic aneurysm with True Enhance DL
 SmartmA 50-500 mA NI=22.1 Avg mA 180 STD 50 12.35 414.68 301.25 Body 32 25.26**
Helical Large Body 0.984 78.75 0.5 1.25 40 120 Evaluation of thoracic vasculature for abnormalities with True Enhance DL SmartmA
 50-500 mA NI=21.4 Avg mA 290 CT CHST ANGIO PULM ARTS SmartPrep
 True Enhance DL
27 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 28 — text în engleză

Reference Protocol Guide Slice
Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed (seconds) (mm) (mm) Interval (mm/s) (mm) 25.27 STD 50 3.81 139.94 322.5 Body 32 DMPR Helical Large Body 1.375 110 0.5 2.5 40 120 CT CHEST SmartPrep DLIR Evaluation of chest region for abnormalities with SmartPrep and DMPR with DLIR SmartmA 50-500 mA
 NI=18
 Avg mA 125 25.28* STD 50 12.35 414.68 301.25 Body 32
Helical Large Body 0.984 78.75 0.5 1.25 40 120 Evaluation of thoracic vasculature for abnormalities with DLIR
CT CHST ANGIO PULM ARTS SmartPrep DLIR SmartmA 50-500 mA NI=21.4 Avg mA 290 STD 50 22.55 393.13 140 Body 32 Cardiac Large 0.22 25.14 0.35 0.625 40 120 25.29** COR ARTS CCTA SmartPrep DLIR
Cardiac SSSeg Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries with DLIR SmartmA 50-500 mA NI=30 Avg mA 169
ECG mA
 Phase 70-80 62-310 mA 25.30** COR ARTS CCTA Hi Res DLIR MIROI Axial Large Body
1 5 0 5 120 40 STD 0 49.17 24.59 5 Body 32 Timing bolus scan for Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries DTL 50 22.55 393.13 140 Body 32
Cardiac SSSeg Cardiac Large 0.22 25.14 0.35 0.625 40 120 Retrospectively gated Cardiac Helical scan using Detail for evaluation of coronary arteries with DLIR SmartmA 50-500 mA
 NI=30 Avg mA 169
ECG mA
 Phase 70-80 62-310 mA
5971512-1EN Revision 1
28 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 29 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max NI Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed (seconds) (mm) (mm) Interval (mm/s) (mm) SmartmA 50–500 mA NI=30 Avg mA 285 STD 50 38.02 665.35 140.625 Body 32 25.31* ANGIO HEART TAVI TAVR DLIR
Cardiac SSSeg
 Cardiac Large 0.22 25.14 0.35 0.625 40 120
Retrospectively gated Cardiac Helical scan for evaluation of coronary function, valve implantation planning and valve replacement planning with DLIR ECG mA
 Phase 25-80 62-310 mA SmartmA
Group 2
Helical Large Body 0.984 112.5 0.35 0.625 40 120 STD 50 3.73 199.5 500.625 Body 32 Helical scan for valve planning with DLIR
 50–500 mA NI=30 Avg mA 125
29 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 30 — text în engleză

Reference Protocol Guide 3.6 Adult Abdomen Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) STD 50 13.29 710.97 500.625 Body 32 26.1 DMPR Helical Large Body 0.984 49.22 0.8 0.625 40 120 CT ABD PELVIS SmartPrep DMPR SmartmA
 50-500 mA NI=18 Avg mA 195 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures 26.2 STD 50 7.5 401.06 505 Body 32 DMPR Helical Large Body 0.984 49.22 0.8 5 40 120 CT ABD PELVIS 5mm SmartPrep DMPR SmartmA
 50-500 mA NI=12 Avg mA 110 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures and DMPR 26.3 STD 50 13.29 710.97 500.625 Body 32 DMPR Helical Large Body 0.984 49.22 0.8 0.625 40 120 CT ABD PELVIS URO DMPR Helical Helical scan for evaluation of kidney, ureters and bladder for renal stone SmartmA
 50-500 mA NI=18 Avg mA 195 26.4 MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation multi phase liver CT ABD MULTIPH LIVER
Group 1
Helical Large Body STD 50 6.39 137.45 185 Body 32 Acquisition for early arterial, phase of the liver 0.984 78.75 0.5 5 40 120 SmartmA 50–500 mA NI=12 Avg mA 150 5971512-1EN Revision 1
30 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 31 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Rotation Time (seconds) Detector Coverage (mm) mA Min-Max NI % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) STD 50 6.39 137.45 185 Body 32 Acquisition for late arterial phase of the liver
Group 2
Helical Large Body 0.984 78.75 0.5 5 40 120 SmartmA 50–500 mA NI=12 Avg mA 150 STD 50 6.39 278.0 405 Body 32 Acquisition for portal venous phase of the liver
Group 3
Helical Large Body 0.984 78.75 0.5 5 40 120 SmartmA 50–500 mA NI=12 Avg mA 150 STD 50 8.73 380.45 400.625 Body 32 26.5 DMPR Helical Large Body 0.984 78.75 0.5 0.625 40 120 CT ABD PELVIS ANGIO SmartPrep Axial scan with DMPR and SmartPrep Evaluation for abdominal aortic aneurysm SmartmA
 50-500 mA NI=22.1 Avg mA 205 26.6 CT ABD PEL LE ANGIO MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation of vascular structures STD 50 13.03 1349.8 1000.625 Body 32
Helical Large Body 0.984 65.63 0.6 0.625 40 120 SmartmA
 50-500 mA NI=22.1 Avg mA 255 Evaluation of vascular structures of abdomen, femurs and lower extremities (Runoff) 26.7 CT Colon Pro 3D Helical Large Body 0.984 78.75 0.5 1.25 0.625 40 120 75 STD 50 3.19 139.00 401.25 Body 32 Helical scan mode Supine acquisition for using Advantage CTC Pro for evaluation of the colon CT ABD PELVIS COLONOGRA PHY 0.984
CT Colon Pro 3D Helical Large Body 78.75 0.5 1.25 0.625 40 120 75 STD 50 3.19 139.00 401.25 Body 32 Helical scan mode Prone acquisition for using Advantage CTC Pro for evaluation of the colon
31 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 32 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Rotation Time (seconds) Detector Coverage (mm) mA Min-Max NI % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) 26.8 Trauma Full Body DMPR
Axial Head
1 5 20 120 200 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities STD 50 5.68 152.68 252.5 Body 32
DMPR Helical Large Body 0.969 38.75 0.5 2.5 20 120 SmartmA 80–500 mA NI=9.1 Avg mA 125 C-Spine Helical mode with DMPR, Evaluation for soft tissue, disc and bone abnormalities
Group 1 DMPR Helical Large Body 1.531 122.50 0.5 5 40 120 STD 50 3.83 133.68 300 Body 32 Evaluation of chest region for abnormalities. SmartmA
 80-500 mA NI=13 Avg mA 140 STD 50 7.45 320.61 400 Body 32
Group 2 DMPR Helical Large Body 0.984 78.75 0.5 5 40 120 Evaluation of abdominal and pelvic region for abnormalities. SmartmA
 80-500 mA NI=12 Avg mA 175 26.9 STD 50 27.32 1460.18 505 Body32 DMPR Helical Large Body 0.516 25.78 0.8 5 40 120 Evaluation of abdominal and pelvic region for abnormalities. CT ABD PELVIS XXL Pt. 5mm Smart Prep SmartmA 50-500 mA NI= 12 Avg mA 210 26.10 CT GUIDE BX DRAIN 5mm
Helical Large Body STD 50 4.69 250.72 505 Body32 Localization scan for CT interventional scan 0.984 78.75 0.5 5 40 120 SmartmA
 50-500 mA NI= 12 Avg mA 110
Smart
 Step Large Body
0.8 5 10 120 60 STD 0 364.66 364.66 10 Body32 Step and Shoot scan for interventional scan 5971512-1EN Revision 1
32 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 33 — text în engleză

Reference Protocol Guide Protocol Name
Protocol Number
Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) mA Min-Max NI SFOV kV Description Pitch Table Speed (mm/s) Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Slice Thickness (mm) Interval (mm) 26.11*
Helical Large Body STD 50 4.69 250.72 505 Body32 Localization scan for CT interventional scan 0.984 78.75 0.5 5 40 120 CT GUIDE BX DRAIN 3D Guidance 2.5mm/17i SmartmA 50-500 mA NI= 12 Avg mA 110
Large Body
0.8 2.5 40 120 60 STD 0 296.74 1186.97 40 Body32 Step and Shoot scan for interventional scan 3D Guidan ce 26.12**
Helical Large Body STD 50 4.69 250.72 505 Body32 Localization scan for CT interventional scan 0.984 78.75 0.5 5 40 120 CT GUIDE BX DRAIN 3D Guidance 2.5mm/9i SmartmA 50-500 mA NI= 12 Avg mA 110
Lage Body
0.8 2.5 20 120 60 STD 0 311.58 623.16 20 Body32 Step and Shoot scan for interventional scan 3D Guidan ce 26.13 STD 50 7.5 401.06 505 Body 32 DMPR Helical Large Body 0.984 49.22 0.8 5 40 120 SmartmA 50-500 mA NI= 12 Avg mA 110 CT ABD PELVIS 5mm SmartPrep DMPR MAR Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures with MAR reconstructions included 26.14 STD 50 8.73 380.45 400.625 Body 32 DMPR Helical Large Body 0.984 78.75 0.5 0.625 40 120 Axial scan with DMPR and Smart- Prep Evaluation for abdominal aortic aneurysm with MAR reconstructions SmartmA 50-500 mA NI= 22.1
 Avg mA 205 CT ABD PELVIS ANGIO SmartPrep MAR 26.15** STD 50 7.5 401.06 505 Body 32 DMPR Helical Large Body 0.984 49.22 0.8 5 40 120 SmartmA 50-500 mA NI=12 Avg mA 110 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures and DMPR CT ABD PELVIS 5mm SmartPrep DMPR Auto Prescription
33 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 34 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Rotation Time (seconds) Detector Coverage (mm) mA Min-Max NI % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval (mm) STD 50 6.2 269.68 400.625 Body 32 26.16 DMPR Helical Large Body 0.984 78.75 0.5 0.625 40 100 Axial scan with DMPR and SmartPrep Evaluation for abdominal aortic aneurysm SmartmA
 70-480 mA NI=25.8 Avg mA 235 CT ABD PELVIS ANGIO SmartPrep Auto Prescription 26.17* MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation of vascular structures CT ABD PEL LE ANGIO Auto Prescription STD 50 13.03 1349.8 1000.625 Body 32
Helical Large Body 0.984 65.63 0.6 0.625 40 120 SmartmA
 50-500 mA NI=22.1 Avg mA 255 Evaluation of vascular structures of abdomen, femurs and lower extremities (Runoff) STD 50 13.29 710.97 500.625 Body 32 26.18** DMPR Helical Large Body 0.984 49.22 0.8 0.625 40 120 SmartmA
 50-500 mA NI= 18 Avg mA 195 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures with True Enhance DL
CT ABD PELVIS SmartPrep DMPR True Enhance DL STD 50 7.5 401.06 505 Body 32 26.19** DMPR Helical Large Body 0.984 49.22 0.8 5 40 120 SmartmA
 50-500 mA NI= 12 Avg mA 110 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures and DMPR with True Enhance DL
CT ABD PELVIS 5mm SmartPrep DMPR True Enhance DL 26.20** STD 50 13.29 710.97 500.625 Body 32 DMPR Helical Large Body 0.984 49.22 0.8 0.625 40 120 CT ABD PELVIS URO DMPR Helical True Enhance DL Helical scan for evaluation of kidney, ureters and bladder for renal stone with True Enhance DL SmartmA
 50-500 mA NI= 18 Avg mA 195
5971512-1EN Revision 1
34 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 35 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm)
26.21** 1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation multi phase liver MIROI Axial Large Body
CT ABD MULTIPH LIVER True Enhance DL
SmartmA
STD 50 6.39 137.45 185 Body32 Group 1
Helical Large Body 0.984 78.75 0.5 5 40 120
Acquisition for early arterial, phase of the liver with True Enhance DL
 50-500 mA NI= 12 Avg mA 150
Group 2 STD 50 6.39 137.45 185 Body32 0.984 78.75 0.5 5 40 120
Helical Large Body Acquisition for late arterial phase of the liver with True Enhance DL SmartmA
 50-500 mA NI= 12 Avg mA 150
STD 50 6.39 278.0 405 Body32 Group 3
Helical Large Body 0.984 78.75 0.5 5 40 120
Acquisition for portal venous phase of the liver with True Enhance DL SmartmA
 50-500 mA NI= 12 Avg mA 150 SmartmA
 STD 50 8.73 380.45 400.625 Body 32 26.22** DMPR Helical Large Body 0.984 78.75 0.5 0.625 40 120 Axial scan with DMPR and SmartPrep Evaluation for abdominal aortic aneurysm with True Enhance DL 50-500 mA NI= 22.1 Avg mA 205 CT ABD PELVIS ANGIO SmartPrep True Enhance DL 5
1 26.23** MIROI Axial Large Body 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation of vascular structures CT ABD PEL LE ANGIO True Enhance DL
SmartmA
0.984 STD 50 13.03 1349.8 1000.625 Body 32
Helical Large Body 65.63 0.6 0.625 40 120
50-500 mA NI= 22.1
 Avg mA 255 Evaluation of vascular structures of abdomen, femurs and lower extremities (Runoff) with True Enhance DL
35 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 36 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm)
26.24** MIROI Axial Large Body 1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation multi phase liver CT ABD MULTIPH LIVER DLIR
SmartmA
Acquisition for early arterial, phase of the liver with DLIR STD 50 6.39 137.45 185 Body32 Group 1
Helical Large Body 0.984 78.75 0.5 5 40 120
50-500 mA NI= 12 Avg mA 150 Acquisition for late STD 50 6.39 137.45 185 Body32
Group 2
Helical Large Body 0.984 78.75 0.5 5 40 120 arterial phase of the liver with DLIR SmartmA
 50-500 mA NI= 12 Avg mA 150
STD 50 6.39 278.0 405 Body32 Acquisition for portal venous phase of the liver with DLIR Group 3
Helical Large Body 0.984 78.75 0.5 5 40 120
SmartmA
 50-500 mA NI= 12 Avg mA 150 SmartmA
 STD 50 8.73 380.45 400.625 Body 32 26.25** DMPR Helical Large Body 0.984 78.75 0.5 0.625 40 120 CT ABD PELVIS ANGIO SmartPrep DLIR Axial scan with DMPR and SmartPrep Evaluation for abdominal aortic aneurysm with DLIR 50-500 mA NI= 22.1 Avg mA 205
1 5 20 120 200 STD# 50 33.84 473.73 140 Head 16
Axial Head 26.26** Trauma Full Body DMPR DLIR Routine head for evaluation of brain for abnormalities with DLIR
SmartmA
STD 50 5.68 152.68 252.5 Body 32 DMPR Helical Large Body 0.969 38.75 0.5 2.5 20 120
C-Spine Helical mode with DMPR, Evaluation for soft tissue, disc and bone abnormalities with DLIR 80–500 mA NI=9.1 Avg mA 125
Group 1 DMPR Helical Large Body 1.531 122.50 0.5 5 40 120 STD 50 3.83 133.68 300 Body 32 Evaluation of chest region for abnormalities with DLIR SmartmA
 80-500 mA NI= 13 Avg mA 140 STD 50 7.45 320.61 400 Body 32
Group 2 DMPR Helical Large Body 0.984 78.75 0.5 5 40 120 SmartmA
 80-500 mA NI= 12 Evaluation of abdominal and pelvic region for abnormalities with DLIR Avg mA 175 5971512-1EN Revision 1
36 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 37 — text în engleză

Reference Protocol Guide 3.7 Adult Spine Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. Pitch Rotation mA Recon SFOV kV Description Min-Max NI Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) CTDIvol (mGy) Detector Coverage (mm) DLP (mGy- cm) % ASiR- V Time (seconds) Range (mm) Slice Thickness (mm) Interval (mm) Table Speed (mm/s) Smart-mA
 0.516 20.63 1 0.625 40 120 27.1 CT L SPINE DMPR DMPR Helical Large Body BONE PLUS 50 43.1 902.51 175.625 Body 32 Evaluation of soft tissue and bony structures of lumbar spine with DMPR 50-500 mA NI=20 Avg mA 265 Smart-mA
 0.516 20.63 1 0.625 40 120 27.2 CT L SPINE DMPR MAR DMPR Helical Large Body BONE PLUS 50 43.1 902.51 175.625 Body 32 50-500 mA NI=20 Avg mA 265 Evaluation of soft tissue and bony structures of lumbar spine with DMPR with metal artifact reductions reconstructions included Smart-mA
 27.3 DMPR Helical Large Body 0.516 20.63 1 0.625 40 120 BONE PLUS 50 43.1 902.51 175.625 Body 32 Evaluation of soft tissue and bony structures of lumbar spine with DMPR CT L SPINE DMPR Auto Prescription 50-500 mA NI=18 Avg mA 265 Smart-mA
 0.516 20.63 1 0.625 40 120 27.4 CT L SPINE DLIR DMPR Helical Large Body BONE PLUS 50 43.1 902.51 175.625 Body 32 Evaluation of soft tissue and bony structures of lumbar spine with DMPR 50-500 mA NI=20
 Avg mA 265 Smart-mA
 27.5* DMPR Helical Large Body 0.516 20.63 1 0.625 40 120 BONE PLUS 50 43.1 902.51 175.625 Body 32 CT L SPINE DMPR MAR DLIR 50-500 mA NI=20
 Avg mA 265 Evaluation of soft tissue and bony structures of lumbar spine with DMPR with metal artifact reductions reconstructions Included with DLIR
37 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 38 — text în engleză

Reference Protocol Guide 3.8 Adult Pelvis Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed.
Pitch Rotation Recon mA % DLP
Protocol Protocol Post Scan Recon Phantom CTDIvol Detector
 Coverage SFOV kV Description Time Range Table Speed Number Name Process Type Type (mGy) (cm) (mm) Min-Max NI ASiR- V (mGy - cm) (seconds) (mm) (mm/s) Slice Thickness (mm) Interval (mm) 0.984 39.38 1 1.25 40 120 BONE PLUS 50 14.06 400.51 251.25 Body 32 28.1 CT PELVIS DMPR DMPR Helical Large Body Evaluation of pelvis bony structures for fracture with DMPR SmartmA
 50–500 mA NI=20 Avg mA 165 BONE PLUS 50 14.06 400.51 251.25 Body 32 28.2 CT PELVIS DMPR MAR DMPR Helical Large Body 0.984 39.38 1 1.25 40 120 SmartmA
 50–500 mA NI=20 Avg mA 165 Evaluation of pelvis bony structures for fracture with DMPR with metal artifact reductions reconstructions included BONE PLUS 50 14.06 400.51 251.25 Body 32 28.3* CT PELVIS DMPR DILR DMPR Helical Large Body 0.984 39.38 1 1.25 40 120 Evaluation of pelvis bony structures for fracture with DMPR with DLIR SmartmA
 50–500 mA NI=20
 Avg mA 165 5971512-1EN Revision 1
38 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 39 — text în engleză

Reference Protocol Guide 3.9 Adult Lower Extremity Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed.
Pitch Rotation Recon mA % DLP
Protocol Protocol Post Scan Recon Phantom CTDIvol Detector Coverage SFOV kV Description Min-Max Time Range ASiR- V Table Speed Number Name Process Type Type (mGy) (cm) (mm) (mGy- cm) NI (seconds) (mm) (mm/s) Slice Thickness (mm) Interval* (mm) 0.531 10.63 1 0.625 20 120 29.1 CT LE ANKLE
Helical Large Body STD 50 9.94 136.54 120.625 Body 32 Evaluation of soft tissue and bony anatomy of ankle area SmartmA
 50–200 mA NI=22.1 Avg mA 60 29.2** STD 50 9.94 136.54 120.625 Body 32 0.531 10.63 1 0.625 20 120
Helical Large Body CT LE ANKLE MAR Evaluation of soft tissue and bony anatomy of ankle area with metal artifact reductions reconstructions included SmartmA
 50–200 mA NI=22.1 Avg mA 60
39 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 40 — text în engleză

Reference Protocol Guide Page intentionally left blank
5971512-1EN Revision 1
40 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 41 — text în engleză

Reference Protocol Guide Chapter 4 Reference Pediatric Protocols for 40mm detector configuration system 4.1 Pediatric Head Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. Pitch Rotation mA Recon % DLP
Protocol Protocol Post Scan Recon Phantom CTDIvol Min-Max Detector Coverage SFOV kV Description Time Range Table Speed Number Name Process Type Type (mGy) (cm) NI (mm) ASiR- V (mGy- cm) (seconds) (mm) (mm/s) Slice Thickness (mm) Interval* (mm)
CT HEAD Ped 31.1 Axial Head 1 5 20 120 110 STD 50 18.61 223.33 120 Head 16 Routine head for children (5 years to 18 years) 5 years to 18 years
CT HEAD Ped 31.2 Axial Head 0.5 5 20 120 200 STD 50 16.92 203.03 120 Head 16 Routine head for children (18 months to 5 years) 18 months to 5 years
CT HEAD Ped 31.3 Axial 0.5 5 20 120 145 STD 50 12.27 147.2 120 Head 16 Ped Head Routine head for infant (up to 18 months) to 18 months
41 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 42 — text în engleză

Reference Protocol Guide 4.2 Pediatric Chest Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. Pitch
Rotation mA Recon Protocol Name SFOV kV Description Protocol Number Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Detector Coverage (mm) % ASiR -V DLP (mGy- cm) Min-Max NI Range (mm) Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) Time (seconds ) CT CHEST 35.1.1 6.0-7.5 kg
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 50 STD 50 1.12 11.25 78.75 Body 32 Weight and height based routine chest protocol (13.2-16.5 lbs) 35.1.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment
 6.0-7.5 kg
 (13.2-16.5 lbs) STD 50 5.39 59.3 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 80 Weight and height based cardiac vascular assessment protocol ECG mA
 34-170 mA Phase 40-80 Avg mA 140 CT CHEST
 35.2.1 7.5-9.5kg
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 70 STD 50 1.57 15.76 78.75 Body 32 Weight and height based routine chest protocol (16.5-20.9 lbs) 35.2.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for weight and height based cardiac protocol CT CHST HEART Vascular Assessment
 7.5-9.5 kg
 (16.5-20.9 lbs) STD 50 5.7 62.68 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 80 Weight and height based cardiac vascular assessment protocol ECG 36-180 mA Phase 40-80 Avg mA=148 5971512-1EN Revision 1
42 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 43 — text în engleză

Reference Protocol Guide Pitch
Rotation mA Recon Protocol Name SFOV kV Description Min-Max NI Protocol Number Post Process Scan Type Recon Type CTDIvol (mGy) Phanto m (cm) Detector Coverage (mm) % ASiR -V DLP (mGy- cm) Range (mm) Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) Time (seconds ) 35.3.1
Helical Small Body 1.375 55.00 0.5 3.75 20 120 75 STD 50 2.1 21.87 82.5 Body 32 Weight and height based routine chest protocol CT CHEST 9.5-11.5 kg
 (20.9-25.4 lbs) 35.3.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for weight and height based cardiac protocol CT CHST HEART Vascular Assessment 9.5-11.5 kg
 (20.9-25.4 lbs) STD 50 6.01 66.07 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 80 Weight and height based cardiac vascular assessment protocol ECG 38-190 mA Phase 40-80 Avg mA 156 35.4.1
Helical Small Body 1.375 55.00 0.5 5 20 120 70 STD 50 1.96 22.62 95.0 Body 32 Weight and height based routine chest protocol CT CHEST
 11.5-14.5 kg (25.4-32.0 lbs) 35.4.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment
 11.5-14.5 kg (25.4-32.0 lbs) STD 50 6.47 71.15 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 80 Weight and height based cardiac vascular assessment protocol ECG 41-205 mA Phase 40-80 Avg mA 168 35.5.1
Helical Small Body 1.375 55.00 0.5 5 20 120 75 STD 50 2.1 24.24 95.0 Body 32 Weight and height based routine chest protocol CT CHEST
 14.5-18.5 kg (32.0-40.8 lbs) 35.5.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for weight and height based cardiac protocol CT CHST HEART Vascular Assessment 14.5-18.5 kg (32.0-40.8 lbs) 43 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 44 — text în engleză

Reference Protocol Guide Pitch
Rotation mA Recon Protocol Name SFOV kV Description Protocol Number Post Process Scan Type Recon Type CTDIvol (mGy) Phanto m (cm) Detector
 Coverage (mm) % ASiR -V DLP (mGy- cm) Min-Max NI Range (mm) Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) Time (seconds ) STD 50 7.16 78.78 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 80 Weight and height based cardiac vascular assessment protocol ECG 46-230 mA Phase 40-80 Avg mA 186 35.6.1
Helical Small Body 1.375 55.00 0.5 5 20 120 80 STD 50 2.24 25.85 95.0 Body 32 Weight and height based routine chest protocol CT CHEST
 18.5-22.5 kg (40.8-49.6 lbs) 35.6.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment 18.5-22.5 kg (40.8-49.6 lbs) STD 50 7.47 82.17 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 80 Weight and height based cardiac vascular assessment protocol ECG 48-240 mA Phase 40-80 Avg mA 194 35.7.1
Helical Large Body 1.375 110.00 0.5 5 40 120 80 STD 50 2.44 35.89 105.0 Body 32 Weight and height based routine chest protocol CT CHEST
 22.5-31.5kg (49.6-69.5 lbs) 35.7.2** MIROI Axial Small Body
1 5 0 5 100 50 STD 0 40.53 20.26 5 Body 32 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment 22.5-31.5 kg (49.6-69.5 lbs) STD 50 12.54 137.9 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 100 Weight and height based cardiac vascular assessment protocol ECG 42-210 mA Phase 40-80 Avg mA 171 35.8.1
Helical Large Body 1.375 110.00 0.5 5 40 120 85 STD 50 2.59 43.32 125.00 Body 32 Weight and height based routine chest protocol CT CHEST
 31.5-40.5 kg (69.5-89.3 lbs) 5971512-1EN Revision 1
44 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 45 — text în engleză

Reference Protocol Guide Pitch
Rotation mA Recon Protocol Name SFOV kV Description Protocol Number Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Detector Coverage (mm) % ASiR -V DLP (mGy- cm) Min-Max NI Range (mm) Table Speed (mm/s) Slice Thickness (mm) Interval (mm) Time (seconds ) 35.8.2* CT CHST HEART Vascular Assessment
 MIROI Axial Small Body
1 5 0 5 100 50 STD 0 40.53 20.26 5 Body 32 Timing bolus for Weight and height based cardiac protocol 31.5-40.5 kg (69.5-89.3 lbs) STD 50 13.64 149.99 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 100 Weight and height based cardiac vascular assessment protocol ECG 46-230 mA Phase 40-80 Avg mA 186 35.9.1
Helical Large Body 1.375 110.00 0.5 5 40 120 95 STD 50 2.9 57.11 155.0 Body 32 Weight and height based routine chest protocol CT CHEST
 40.5-55.0 kg (89.3-121.3 lbs) 35.9.2** CT CHST HEART Vascular Assessment
 MIROI Axial Small Body
1 5 0 5 100 50 STD 0 40.53 20.26 5 Body 32 Timing bolus for Weight and height based cardiac protocol 40.5-55.0 kg (89.3-121.3 lbs) STD 50 14.44 158.86 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 25.14 0.35 0.625 40 100 Weight and height based cardiac vascular assessment protocol ECG 50-250 mA Phase 40-80 Avg mA 197
45 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 46 — text în engleză

Reference Protocol Guide 4.3 Pediatric Abdomen Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. Pitch
Rotation Recon % DLP
mA Protocol Protocol Post Scan Recon CTDIvol Phantom Slice Thickness (mm) SFOV kV Description Time Range Table Speed (mGy) Number Name Process Type Type (cm) Detector Coverage (mm) ASiR- V (mGy- cm) (seconds (mm) Min-Max NI (mm/s) Interval* (mm) ) 36.1.1 CT ABDOMEN 6.0-7.5 kg (13.2-16.5 lbs)
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 60 STD 50 1.34 14.01 82.5 Body 32 Weight and height based routine abdomen protocol 36.2.1 CT ABDOMEN 7.5-9.5 kg (16.5-20.9 lbs)
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 95 STD 50 2.13 24.58 93.75 Body 32 Weight and height based routine abdomen protocol 36.3.1 CT ABDOMEN 9.5-11.5 kg (20.9-25.4 lbs)
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 110 STD 50 2.46 31.23 105 Body 32 Weight and height based routine abdomen protocol 1.375 55.00 0.5 5 20 120 75 STD 50 2.1 28.44 115 Body 32 Weight and height based routine abdomen protocol 36.4.1 CT ABDOMEN 11.5-14.5 kg (25.4-32.0 lbs)
Helical Small Body 1.375 55.00 0.5 5 20 120 80 STD 50 2.24 30.33 115 Body 32 Weight and height based routine abdomen protocol 36.5.1 CT ABDOMEN 14.5-18.5 kg (32.0-40.8 lbs)
Helical Small Body 36.6.1 CT ABDOMEN 18.5-22.5 kg (40.8-49.6 lbs)
Helical Large Body 1.375 55.00 0.5 5 20 120 70 STD 50 2.24 34.83 135 Body 32 Weight and height based routine abdomen protocol 1.375 110.00 0.5 5 40 120 90 STD 50 2.74 54.1 155 Body 32 Weight and height based routine abdomen protocol 36.7.1 CT ABDOMEN 22.5-31.5 kg (49.6-69.5 lbs)
Helical Large Body 1.375 110.00 0.5 5 40 120 100 STD 50 3.05 60.11 155 Body 32 Weight and height based routine abdomen protocol 36.8.1 CT ABDOMEN 31.5-40.5 kg (69.5-89.3 lbs)
Helical Large Body 1.375 110.00 0.5 5 40 120 120 STD 50 3.66 90.43 205 Body 32 Weight and height based routine abdomen protocol 36.9.1 CT ABDOMEN 40.5-55.0 kg (89.3-121.3 lbs)
Helical Large Body 5971512-1EN Revision 1
46 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 47 — text în engleză

Reference Protocol Guide Chapter 5 Quality Assurance Protocols for 20mm detector configuration system 5.1 Quality Assurance Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. Pitch mA
Rotation Detector Recon % DLP
Protocol Protocol Post Scan Recon CTDIVOI Phantom SFOV kV Description Time Coverage Range Min- Max Table Speed (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) (seconds) (mm) (mm) Slice Thicknes s (mm) Interval* (mm) NI (mm/s) 30.1
Axial Large Body
0.5 5 20 120 270 STD 50 12.47 174.65 140 Body 32 Example protocols for ACR accreditation scans Example ACR Protocols
Axial Head
1 5 20 120 170 STD 50 28.76 402.67 140 Head 16 Example protocols for ACR accreditation scans 0.969 0.5 5 20 120 220 STD 50 10.49 182.52 160 Body 32 Example protocols for ACR accreditation scans
Helical Large Body 38.75
Axial Ped Body
0.35 5 20 120 90 STD 50 2.43 33.96 140 Body 32 Example protocols for ACR accreditation scans
Axial Ped Head
0.5 5 20 120 190 STD 50 16.07 225.02 140 Head 16 Example protocols for ACR accreditation scans
47 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 48 — text în engleză

Reference Protocol Guide Pitch mA
Rotation Detector Recon % DLP
CTDIVOI Protocol Protocol Post Scan Recon Phantom SFOV kV Description Time Coverage Range Table Speed Min- Max (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) (seconds) (mm) (mm) Slice Thickness (mm) Interval* (mm) (mm/s) NI 0.969 0.35 5 20 120 80 STD 50 2.23 38.7 160 Body 32 Example protocols for ACR accreditation scans
Helical Ped Body 55.36 5971512-1EN Revision 1 48
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 49 — text în engleză

Reference Protocol Guide Chapter 6 Reference Adult Protocols for 20mm detector configuration system 6.1 Adult Head Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed.
SFOV kV Description Recon Type CTDIvol (mGy) DLP (mGy-cm) Protocol Number Protocol Name Post Process Scan Type Phantom (cm) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) 21.1 CT HEAD
 Axial Head
 1 5 20 120 200 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities SmartmA & ODM
 21.2
Axial Head
 1 5 20 120 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities CT HEAD with ODM 100–340 mA NI=2.8 Avg mA 200 0.8 0.625 20 120 90 STD# 50 22.93 223.08 80.625 Head 16 Routine head for evaluation of brain for abnormalities 21.3 CT HEAD Helical
Helical Head 0.531 13.28 21.4 MIROI Axial Head
 1 Test bolus for determining prep delay 5 0 5 120 50 STD 0 117.09 58.54 5 Head 16 CT HEAD ANGIO CIRC WILLIS 49 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 50 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Pitch Table Speed (mm/s) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Slice Thickness (mm) Interval* (mm)
Helical Head 0.531 21.25 0.5 0.625 20 120 120 STD 50 19.11 185.97 80.625 Head 16 CT angiography of the head for evaluation of cerebral vasculature 21.5 MIROI Axial Head
 1 5 0 5 120 50 STD 0 117.09 58.54 5 Head 16 Test bolus for determining prep delay CT HEAD ANGIO CIRC WILLIS with ODM
STD 50 19.11 185.97 80.625 Head 16
Helical Head 0.531 21.25 0.5 0.625 20 120 CT angiography of the head for evaluation of cerebral vasculature SmartmA & ODM
 50–400 mA NI=7 Avg mA 120 21.6
Axial Head
 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Routine head for evaluation of brain for abnormalities SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 CT HEAD PERFUS WO & W PREFUS Cine STD 50 267.91 535.81 20 Head 16
Perfusion Cine Head
 1 5 0 20 80 CT Perfusion using Cine scan mode for evaluation of cerebral perfusion over time SmartmA & ODM
 100–200 mA NI=8.0 Avg mA 100
Axial Head
 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Post Contrast Brain, Evaluation for residual tissue enhancement SmartmA & ODM
 100-340mA NI=2.8 Avg mA 170 21.7
Axial Head
 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Routine head for evaluation of brain for abnormalities SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 CT HEAD PERFUS WO & W PREFUS Axial Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select
5971512-1EN Revision 1 50

Pagina 51 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) STD 50 132.0 263.99 20 Head 16
Perfusion Axial Head
 1 5 0 20 80 CT Perfusion using Axial scan mode for evaluation of cerebral perfusion over time SmartmA & ODM
 100–200 mA NI=8.0 Avg mA 100
Axial Head
 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Post Contrast Brain, Evaluation for residual tissue enhancement
SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 21.9 CT HEAD Helical MAR
 Helical Head 0.531 13.28 0.8 0.625 20 120 90 STD # 50 22.93 223.08 80.625 Head 16 Routine head for evaluation of brain for abnormalities with Metal Artifact Reduction Reconstructions included 21.10 MIROI Axial Head
 1 5 0 5 120 50 STD 0 117.09 58.54 5 Head 16 Test bolus for determining prep delay CT HEAD ANGIO CIRC WILLIS MAR
Helical Head 0.531 0.5 0.625 20 120 120 STD 50 19.11 185.97 80.625 Head 16 21.25 CT angiography of the head for evaluation of cerebral vasculature with Metal Artifact Reduction Reconstructions included 21.11**
Axial Head
 1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Routine head for evaluation of brain for abnormalities CT HEAD PERFUS WO & W PREFUS Axial Shuttle SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 0.5 5 20 80 STD 50 102.0 407.99 40 Head 16
Perfusion Axial Head CT Perfusion using Axial Shuttle scan mode for evaluation of cerebral perfusion over time 17 pass 2 positio ns SmartmA
 100–400 mA NI=8.0 Avg mA 200 51 5971512-1EN Revision 1 Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 52 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Rotation Time (seconds) Detector Coverage (mm) mA Min-Max NI % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm)
Axial Head
1 5 20 120 STD# 50 28.76 402.67 140 Head 16 Post Contrast Brain, Evaluation for residual tissue enhancement SmartmA & ODM
 100–340 mA NI=2.8 Avg mA 170 21.12** CT HEAD DLIR
Axial Head
1 5 20 120 200 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities with DLIR 21.13**
Axial Head
1 5 20 120 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities with DLIR CT HEAD with ODM DLIR SmartmA & ODM 100–340 mA NI=2.8 Avg mA 200 21.14** CT HEAD Helical DLIR
Helical Head 0.531
 13.28 0.8 0.625 20 120 90 STD# 50 22.93 223.08 80.625 Head 16 Routine head for evaluation of brain for abnormalities with DLIR 21.15** MIROI Axial Head
1 5 0 5 120 50 STD 0 117.09 58.54 5 Head 16 Test bolus for determining prep delay CT HEAD ANGIO CIRC WILLIS DLIR
Helical Head 0.531
 21.25 0.5 0.625 20 120 120 STD 50 19.11 185.97 80.625 Head 16 CT angiography of the head for evaluation of cerebral vasculature with DLIR 21.16** MIROI Axial Head
1 5 0 5 120 50 STD 0 117.09 58.54 5 Head 16 Test bolus for determining prep delay CT HEAD ANGIO CIRC WILLIS with ODM DLIR STD 50 19.11 185.97 80.625 Head 16
Helical Head 0.531
 21.25 0.5 0.625 20 120 CT angiography of the head for evaluation of cerebral vasculature with DLIR SmartmA & ODM 50–400 mA NI=7 Avg mA 120 5971512-1EN Revision 1 52
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 53 — text în engleză

Reference Protocol Guide 6.2 Adult Orbit Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. SFOV kV Description CTDIvol (mGy) Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) DLP (mGy- cm) Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) Pitch Table Speed (mm/s) mA Min- Max NI Slice Thickness (mm) Interval* (mm) 22.1 CT HEAD SINUSES Supine
Helical Head 0.531 10.63 1 0.625 20 120 75 BONE 50 23.89 232.33 80.625 Head 16 Axial Sinus protocol, Evaluation for any abnormality 22.2 CT HEAD ORBITS
Helical Head 0.969 38.75 0.5 0.625 20 120 110 STD 50 9.61 36.01 19.375 Head 16 Axial Orbit protocol, Evaluation for abnormality soft tissues and bone structures of the orbit and face 22.3 CT HEAD FACL BNS
Helical Head 0.969 19.38 1 0.625 20 120 80 BONE PLUS 50 13.97 129.96 75 Head 16 Axial Facial Bone protocol, Evaluation for soft tissue and bone structures of the face 22.4 CT HEAD IAC 140 kV
Axial Head
 2 1.25 20 140 80 BONE PLUS 50 38.08 152.32 40 Head 16 Axial scan mode, Evaluation for inner ear abnormalities 22.5 CT HEAD IAC Helical 140 kV
Helical Head 0.531 10.63 1 0.625 20 140 85 BONE PLUS 50 38.08 213.35 39.375 Head 16 Helical scan mode, Evaluation for inner ear abnormalities 53 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 54 — text în engleză

Reference Protocol Guide 6.3 Adult Neck Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. Slice
Pitch
Rotation Detector Recon mA Thickness % DLP
CTDIvol Protocol Protocol Post Scan Recon Phantom SFOV kV Description Min-Max Time Coverage Range (mm) Table Speed (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) NI (seconds) (mm) (mm) Interval* (mm/s) (mm) 0.531 13.28 0.8 0.625 20 120 BONE PLUS 50 20.55 261.66 110.625 Body 32 23.1 CT CERVICAL SPINE DMPR DMPR Helical Large Body C-Spine Helical mode with DMPR, Evaluation for bone, disc and soft tissue abnormalities SmartmA & ODM
 50–500 mA NI=12.6 Avg mA 155 23.2 STD 50 9.09 153.4 150.625 Body 32 DMPR Helical Large Body 0.969 38.75 0.5 0.625 20 120 CT NECK SFT TISS NECK DMPR Soft Tissue Neck Evaluation of soft tissue structures for abnormality SmartmA & ODM
 50–500 mA NI=12.6 Avg mA 200 23.3 0.531 21.25 0.5 0.625 20 120 STD 50 12.43 232.89 170.625 Body 32 Carotid CTA Evaluation of carotid vasculature DMPR Helical Large Body CT NECK ANGIO SmartPrep DMPR SmartmA & ODM
 80–500 mA NI=11 Avg mA 150
5 23.4 MIROI Axial Head
1 5 120 60 STD 0 140.5 70.25 5 Head 16 Test bolus for determining prep delay CT HEAD NECK CIRC WILLIS CAR ART 0 STD 50 12.43 232.89 170.625 Body 32 0.531 21.25 0.5 0.625 20 120
Helical Large Body CT angiography of the neck and head evaluation of carotid and cerebral vasculature SmartmA
 & ODM
 80–500 mA NI=11 Avg mA 150 5971512-1EN Revision 1 54
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 55 — text în engleză

Reference Protocol Guide Slice
Pitch
Rotation Detector mA Recon Thickness % DLP
Protocol Protocol Post Scan Recon CTDIvol Phantom SFOV kV Description Min-Max Time Coverage Range (mm) Table Speed (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) NI (seconds) (mm) (mm) Interval* (mm/s) (mm)
5 23.5 MIROI Axial Head
 1 5 120 60 STD 0 140.5 70.25 5 Head 16 Test bolus for determining prep delay CT HEAD NECK CIRC WILLIS CAR ART Hi Res 0 DTL 50 12.43 232.89 170.625 Body 32 0.531 21.25 0.5 0.625 20 120
Helical Large Body CT angiography of the neck and head evaluation of carotid and cerebral vasculature SmartmA
 & ODM 80–500 mA NI=11 Avg mA 150 23.6 0.531 13.28 0.8 0.625 20 120 BONE PLUS 50 20.55 261.66 110.625 Body 32 DMPR Helical Large Body CT CERVICAL SPINE DMPR MAR SmartmA 50–500 mA NI=12.6 Avg mA 155 C-Spine Helical mode with DMPR, Evaluation for soft tissue, disc and bone abnormalities with Metal artifact reduction reconstruction STD 50 9.09 153.4 150.625 Body 32 23.7 DMPR Helical Large Body 0.969 38.75 0.5 0.625 20 120 CT NECK SFT TISS NECK DMPR MAR Soft Tissue Neck Evaluation of soft tissue structures for abnormality with metal artifact reductions. SmartmA 50–500 mA NI=12.6 Avg mA 200 5 23.8** MIROI Axial Head
 1 5 120 60 STD 0 140.5 70.25 5.0 Head 16 Test bolus for determining prep delay 0 CT HEAD NECK CIRC WILLIS CAR ART MAR STD 50 12.43 232.89 170.625 Body 32
Helical Large Body 0.531 21.25 0.5 0.625 20 120 CT angiography of the neck and head evaluation of carotid and cerebral vasculature with metal artifact reduction reconstructions included SmartmA
 & ODM
 80–500 mA NI=11 Avg mA 150
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select
55 5971512-1EN Revision 1

Pagina 56 — text în engleză

Reference Protocol Guide Slice
Pitch
Rotation Detector Recon mA Thickness % DLP
CTDIvol Protocol Protocol Post Scan Recon Phantom SFOV kV Description Min-Max Time Coverage Range (mm) Table Speed (mGy) Number Name Process Type Type (cm) ASiR- V (mGy- cm) NI (seconds) (mm) (mm) Interval (mm/s) (mm) 23.9 0.531 13.28 0.8 0.625 20 120 BONE PLUS 50 20.55 261.66 110.625 Body 32 DMPR Helical Large Body CT CERVICAL SPINE DMPR DILR C-Spine Helical mode with DMPR, Evaluation for bone, disc and soft tissue abnormalities with DLIR SmartmA
 & ODM 80–500 mA NI=12.6 Avg mA 155 23.10 STD 50 9.09 153.4 150.625 Body 32 0.969 38.75 0.5 0.625 20 120 DMPR Helical Large Body CT NECK SFT TISS NECK DMPR DLIR Soft Tissue Neck Evaluation of soft tissue structures for
 abnormality with DLIR SmartmA & ODM 50–500 mA NI=12.6 Avg mA 200 23.11 STD 50 12.43 232.89 170.625 Body 32 Carotid CTA Evaluation of carotid vasculature with DLIR DMPR Helical Large Body 0.531 21.25 0.5 0.625 20 120 CT NECK ANGIO SmartPrep DMPR DLIR SmartmA & ODM 80–500 mA NI=11
 Avg mA 150 5 23.12* MIROI Axial Head
 1 5 120 60 STD 0 140.5 70.25 5 Head 16 Test bolus for determining prep delay 0 CT HEAD NECK CIRC WILLIS CAR ART DLIR STD 50 12.43 232.89 170.625 Body 32
Helical Large Body 0.531 21.25 0.5 0.625 20 120 CT angiography of the neck and head evaluation of carotid and cerebral vasculature with DLIR SmartmA
 & ODM
 80–500 mA NI=11 Avg mA 150
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select
5971512-1EN Revision 1 56

Pagina 57 — text în engleză

Reference Protocol Guide 6.4 Adult Upper Extremities Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. Slice
Pitch
Rotation Detector mA Recon Thickness DLP
Protocol Protocol Post Scan Recon % CTDIvol Phantom SFOV kV Description Min-Max Time Coverage Range (mm) Table Speed (mGy) Number Name Process Type Type ASiR (cm) (mGy- cm) NI (seconds) (mm) (mm) Interval (mm/s) -V (mm) 1.25 20 140 24.1 STD 50 27.56 323.31 101.25 Body 32 DMPR Helical Large Body 0.531 10.63 1 0.625 CT UPPER EXTREMITY SHOULDER Shoulder with DMPR, Evaluation of soft tissue and bone of shoulder area SmartmA 80–500 mA NI=21.4 Avg mA 115 1.25 24.2 20 140 STD 50 27.56 323.31 101.25 Body 32 0.531 10.63 1 DMPR Helical Large Body 0.625 SmartmA
 80–500 mA NI=21.4 Avg mA 115 CT UPPER EXTREMITY SHOULDER MAR Shoulder with DMPR, Evaluation of soft tissue and bone of shoulder area with Metal Artifact reduction reconstructions included STD 50 26.36 309.26 101.25 Body 32 24.3* DMPR Helical Large Body 0.531 10.63 1 1.25 0.625 20 140 Shoulder with DMPR, Evaluation of soft tissue and bone of shoulder area with DLIR SmartmA
 80–500 mA NI=21.4 Avg mA 110 CT UPPER EXTREMITY SHOULDER DLIR
57 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 58 — text în engleză

Reference Protocol Guide 6.5 Adult Chest Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. Slice
Pitch mA Rotation Detector Recon Thickness
Protocol Protocol Post Scan Recon % Phantom
CTDIvol DLP
SFOV kV Description Table Min-Max Time Coverage Range (mm) Number Name Process Type Type ASiR- (mGy) (cm) (mGy- cm) Speed NI (seconds) (mm) (mm) Interval* V (mm/s) (mm) STD 50 4.0 138.23 322.5 Body 32 1.375 55.00 0.5 2.5 20 120 25.1 CT CHEST SmartPrep DMPR Helical Large Body SmartmA 50-500 mA NI=18 Evaluation of chest region for abnormalities with SmartPrep and DMPR Avg mA 125 SmartmA 25.2 CT CHST ABD PEL
Helical Large Body 1.375
 55.00 0.5 5.0 20 120 STD 50 4.0 111.97 255.00 Body 32 Evaluation of chest region for abnormalities 50-500 mA NI=13 Avg mA 125 SmartmA
Group 2
Helical Large Body 0.969
 38.75 0.5 5.0 20 120 STD 50 6.13 167.58 255.00 Body 32 Evaluation of abdominal pelvic region for abnormalities 50-500 mA NI=12 Avg mA 135 SmartmA 25.3 DMPR Helical Large Body 0.969
 38.75 0.5 0.625 20 120 STD 50 9.09 220.99 225 Body 32 Evaluation of Neck region for abnormalities CT NECK CHST ABD PEL 50–500 mA NI=12.6 Avg mA 200 SmartmA
Group 2 DMPR Helical Large Body 1.531
 61.25 0.5 0.625 20 120 STD 50 5.75 188.19 300 Body 32 Evaluation of Chest region for abnormalities 50-500 mA NI=22.0 Avg mA 200 5971512-1EN Revision 1 58
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 59 — text în engleză

Reference Protocol Guide Slice Pitch Rotation Detector mA Recon Thickness
Protocol Protocol Post Scan Recon % CTDIvol Phantom
DLP
SFOV kV Description Table Min-Max Time Coverage Range (mm) Number Name Process Type Type ASiR- (mGy) (cm) (mGy- cm) Speed NI (seconds) (mm) (mm) Interval* V (mm/s) (mm) SmartmA STD 50 14.54 615.25 405 Body 32 Evaluation of abdominal and
 pelvic region for abnormalities
Group 3 DMPR Helical Large Body 0.969
 24.22 0.8 0.625 20 120 50-500 mA NI=18 Avg mA 200 SmartmA 25.4 CT CHST ANGIO
Helical Large Body 0.969
 38.75 0.5 0.625 20 120 STD 50 8.18 260.75 300.625 Body 32 Evaluation of thoracic aortic aneurysm 50-500 mA NI=22.1 Avg mA 180 25.5
Helical Large Body 0.969
 38.75 0.5 1.25 20 120 STD 50 13.83 441.15 301.25 Body 32 Evaluation of thoracic vasculature for abnormalities. SmartmA 50-500 mA NI=21.4 Avg mA 290 CT CHST ANGIO PULM ARTS SmartPrep 25.6 Helical Large Body 0.969
 38.75 0.5 1.25 20 120 120 BONE 50 5.45 119.3 201.25 Body 32 Advanced Lung Analysis CT CHST LO DOSE Assessment Acquisition of data for Advanced Lung Analysis (ALA) software for lung nodule assessment 25.7 CT CHST Hi Res
Axial Large Body
0.5 1.25 10 1.25 120 190 Bone Plus 50 2.65 13.26 41.25 Body 32 Axial scan mode, Evaluation of lung fields in high resolution mode
Axial Large Body
0.5 1.25 10 1.25 120 190 Bone Plus 50 2.65 13.26 41.25 Body 32 Axial scan mode, Evaluation of lung fields in high resolution mode
Axial Large Body
0.5 1.25 10 1.25 120 190 Bone Plus 50 2.65 13.26 41.25 Body 32 Axial scan mode, Evaluation of lung fields in high resolution mode 59 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 60 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
Protocol Protocol Post Scan Recon % CTDIvol DLP Phantom
SFOV kV Description Table Min-Max Time Coverage Range (mm) Number Name Process Type Type ASiR- (cm) (mGy) (mGy- cm) Speed NI (seconds) (mm) (mm) Interval* V (mm/s) (mm) STD 50 4.68 65.46 140 Body 32 Cardiac Large
0.35 2.5 20 120 25.8 COR ARTS CALC SCORE SmartScore Cardiac SmartSc ore SmartmA 50–400 mA NI=20 Avg mA 215 Prospectively gated Cardiac Cine scan for acquisition of data for coronary artery calcification analysis SmartmA 50-500 mA NI=30 25.9 STD 50 24.84 389.75 140 Body 32 Avg mA 169
Cardiac SSSeg Cardiac Large 0.22
 12.57 0.35 0.625 20 120 COR ARTS CCTA SmartPrep Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries ECG mA Phase70-80 62-310 mA 5 5 120 40 STD 0 49.17 24.59 5 Body 32
25.10** COR ARTS CCTA MIROI Axial Large Body
1 0 Timing bolus scan for Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries 0.35 0.625 20 120 STD 50 24.84 389.75 140 Body 32 SmartmA 50-500 mA NI=30 Avg mA 169
Cardiac SSSeg Cardiac Large 0.22
 12.57 Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries ECG mA Phase 70-80 62-310 mA 5 25.12** 5 120 40 STD 0 49.17 24.59 5 Body 32
MIROI Axial Large Body
1 COR ARTS CCTA Hi Res 0 Timing bolus scan for Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries
5971512-1EN Revision 1 60
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 61 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max Time Coverage Range (mm) Number Name Process Type Type ASiR- (cm) (mGy) (mGy- cm) Speed NI (seconds) (mm) (mm) Interval* V (mm/s) (mm) SmartmA 50-500 mA NI=30 Avg mA 169 DTL 50 24.84 389.75 140 Body 32
Cardiac SSSeg Cardiac Large 0.22
 12.57 0.35 0.625 20 120 Retrospectively gated Cardiac Helical scan using Detail for evaluation of coronary arteries ECG mA Phase 70-80 62-310 mA 25.13** 5 120 40 STD 0 49.17 24.59 5 Body 32
MIROI Axial Large Body
1 5 COR ARTS CCTA Function 0 Timing bolus scan for Retrospectively gated Cardiac Helical scan for evaluation of coronary function STD 50 39.87 625.46 140 Body 32 0.22
 12.57 0.35 0.625 20 120
Cardiac SSSeg Cardiac Small Retrospectively gated Cardiac Helical scan for evaluation of coronary function SmartmA 50-500 mA NI=30 Avg mA 310 SmartmA 50–500 mA NI=30 Avg mA 285 25.14** STD 50 41.9 659.89 140.625 Body 32
Cardiac SSSeg
 Cardiac Large 0.22
 12.57 0.35 0.625 20 120 ANGIO HEART TAVI TAVR Retrospectively gated Cardiac Helical scan for evaluation of coronary function, valve implantation planning and valve replacement planning ECG mA Phase 25-80 62-310mA STD 50 3.92 207.23 500.625 Body 32 Helical scan for valve planning
Group 2
Helical Large Body 1.531
 87.5 0.35 0.625 20 120 SmartmA 50–500 mA NI=30 Avg mA 195 25.15 Advantage 4D Cine Large Body
0.5 2.5 20 120 160 STD 50 76.39 2444.33 320 Body 32 Cine scan mode for acquisition data for Advantage 4D for retrospective gating CT CHEST for Advantage 4D 61 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 62 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max Time Coverage Range (mm) Number Name Process Type Type ASiR-V (cm) (mGy) (mGy- cm) Speed NI (seconds) (mm) (mm) Interval (mm/s) (mm) 1.375 25.16 STD 50 4 138.23 320.625 Body 32 DMPR Helical Large Body 55.00 0.5 0.625 20 120 CT CHEST SmartPrep MAR SmartmA 50-500 mA NI=22 Avg mA 125 Evaluation of chest region for abnormalities with SmartPrep and DMPR with Metal Artifact reduction reconstructions included 25.17*
Helical Large Body 0.969
 38.75 0.5 1.25 20 120 STD 50 13.83 441.15 301.25 Body 32 Evaluation of thoracic vasculature for abnormalities. SmartmA 50-500 mA NI=21.4 Avg mA 290 CT CHST ANGIO PULM ARTS SmartPrep MAR 0 2.5 25.18** 1.36 36.64 252.5 Body 32 20 120 30 STD
Helical Large Body 0.969
 38.75 0.5 CT Low Dose Lung Cancer Screening 50-70 kg 2.0
Optional Low dose helical scan for evaluation of Lung Cancer Screening (110-155 lbs) 0 2.5 20 120 50 STD 25.19** 2.27 61.07 252.5 Body 32
Helical Large Body 0.969
 38.75 0.5 2.0
Optional Low dose helical scan for evaluation of Lung Cancer Screening CT Low Dose Lung Cancer Screening 70-90 kg (155-200 lbs) 0 2.5 25.20** 3.64 97.71 252.5 Body 32 20 120 80 STD
Helical Large Body 0.969
 38.75 0.5 2.0
Optional Low dose helical scan for evaluation of Lung Cancer Screening CT Low Dose Lung Cancer Screening 90-120 kg (200-265 lbs) 5971512-1EN Revision 1 62
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 63 — text în engleză

Reference Protocol Guide Slice Pitch mA Rotation Detector Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max Time Coverage Range (mm) Number Name Process Type Type ASiR- (cm) (mGy) (mGy- cm) Speed NI (seconds) (mm) (mm) Interval V (mm/s) (mm) 1.375 25.21 STD 50 3.37 116.4 322.5 Body 32 DMPR Helical Large Body 55.00 0.5 2.5 20 100 Evaluation of chest region for abnormalities with SmartPrep and DMPR CT CHEST SmartPrep Auto Prescription SmartmA 70-480 mA NI=19.4 Avg mA 170 25.22*
Helical Large Body 0.969
 38.75 0.5 0.625 20 100 STD 50 7.23 230.74 300.625 Body 32 Evaluation of thoracic aortic aneurysm CT CHST ANGIO Auto Prescription SmartmA 70-480 mA NI=23.8 Avg mA 245 SmartmA 50-480 mA NI=32.4 Avg mA 230 25.23** STD 50 20.93 328.4 140 Body 32
Cardiac SSSeg Cardiac Large 0.22
 12.57 0.35 0.625 20 100 Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries COR ARTS CCTA SmartPrep Auto Prescription ECG mA Phase 70-80 84-420 mA 25.24 STD 50 4.0 138.23 322.5 Body 32 DMPR Helical Large Body 1.375 55.00 0.5 2.5 20 120 CT CHEST SmartPrep True Enhance DL SmartmA 50-500 mA
 NI=18 Avg mA 125 Evaluation of chest region for abnormalities with SmartPrep and DMPR with True Enhance DL 25.25 STD 50 8..18 260.75 300.625 Body 32
Helical Large Body 0.969
 38.75 0.5 0.625 20 120 Evaluation of thoracic aortic aneurysm with True Enhance DL CT CHST ANGIO True Enhance DL SmartmA 50-500 mA NI=22.1 Avg mA 180 25.26** STD 50 13.83 441.15 301.25 Body 32
Helical Large Body 0.969
 38.75 0.5 1.25 20 120 Evaluation of thoracic vasculature for abnormalities with True Enhance DL SmartmA 50-500 mA NI=21.4 Avg mA 290 CT CHST ANGIO PULM ARTS SmartPrep True Enhance DL 25.27** STD 50 4.0 138.23 322.5 Body 32 Evaluation of chest region for abnormalities with SmartPrep 1.375 55.00 0.5 2.5 20 120 DMPR Helical Large Body CT CHEST SmartPrep DLIR SmartmA 50-500 mA
 NI=18 Avg mA 125 and DMPR with DLIR
63 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 64 — text în engleză

Reference Protocol Guide Slice
Pitch Rotation Detector mA Recon Thickness
CTDIvol DLP Protocol Protocol Post Scan Recon % Phantom
SFOV kV Description Table Min-Max Time Coverage Range (mm) Number Name Process Type Type ASiR- (cm) (mGy) (mGy- cm) Speed NI (seconds) (mm) (mm) Interval V (mm/s) (mm) 25.28* STD 50 13.83 441.15 301.25 Body 32
Helical Large Body 0.969
 38.75 0.5 1.25 20 120 Evaluation of thoracic vasculature for abnormalities with DLIR SmartmA 50-500 mA NI=21.4 Avg mA 290 CT CHST ANGIO PULM ARTS SmartPrep DLIR 25.29** STD 50 24.84 389.75 140 Body 32
Cardiac SSSeg Cardiac Large 0.22
 12.57 0.35 0.625 20 120 Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries with DLIR COR ARTS CCTA SmartPrep DLIR SmartmA 50-500 mA NI=30 Avg mA 169
ECG mA Phase70-80 62-310 mA 25.30** MIROI Axial Large Body
1 5 0 5 120 40 STD 0 49.17 24.59 5 Body 32 COR ARTS CCTA Hi Res DLIR Timing bolus scan for Retrospectively gated Cardiac Helical scan for evaluation of coronary arteries DTL 50 24.84 389.75 140 Body 32
Cardiac SSSeg Cardiac Large 0.22 12.57 0.35 0.625 20 120 Retrospectively gated Cardiac evaluation of coronary arteries with DLIR SmartmA 50-500 mA NI=30 Avg mA 169
ECG mA Phase70-80 62-310 mA 25.31** STD 50 41.9 659.89 140.625 Body 32
Cardiac
 SSSeg
 Cardiac Large 0.22 12.57 0.35 0.625 20 120 ANGIO
 HEART TAVI
 TAVR DLIR Retrospectively gated Cardiac Helical scan for evaluation of coronary function, valve implantation planning and valve replacement planning with DLIR SmartmA 50-500 mA NI=30 Avg mA 285
ECG mA Phase25-80 62-310 mA
Group 2
Helical Large Body 1.531 87.5 0.35 0.625 20 120 STD 50 3.92 207.23 500.625 Body 32 Helical scan for valve planning with DLIR SmartmA 50–500 mA
 NI=30 Avg mA 195 5971512-1EN Revision 1 64
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 65 — text în engleză

Reference Protocol Guide 6.6 Adult Abdomen Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Slice Thickness (mm) Interval* (mm) Pitch Table Speed (mm/s ) 26.1 STD 50 13.81 716.59 500.625 Body 32 DMPR Helical Large Body 0.969 24.22 0.8 0.625 20 120 CT ABD PELVIS SmartPrep DMPR Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures SmartmA 50-500 mA NI=18 Avg mA 190 26.2 STD 50 8.0 414.87 505 Body 32 DMPR Helical Large Body 0.969 24.22 0.8 5 20 120 CT ABD PELVIS 5mm SmartPrep DMPR SmartmA 50-500 mA NI=12 Avg mA 110 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures and DMPR 26.3 STD 50 13.81 716.59 500.625 Body 32 DMPR Helical Large Body 0.969 24.22 0.8 0.625 20 120 Helical scan for evaluation of kidney, ureters and bladder for renal stone CT ABD PELVIS URO DMPR Helical SmartmA 50-500 mA NI=18 Avg mA 190 26.4 MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation multi phase liver CT ABD MULTIPH LIVER
Group 1
Helical Large Body STD 50 6.82 135.5 185 Body 32 Acquisition for early arterial, phase of the liver 0.969 38.75 0.5 5 20 120 SmartmA 50–500 mA NI=12 Avg mA 150
Group 2
Helical Large Body STD 50 6.82 135.5 185 Body 32 Acquisition for late arterial phase of the liver 0.969 38.75 0.5 5 20 120 SmartmA 50–500 mA NI=12 Avg mA 150 65 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 66 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Rotation Time (seconds) Detector Coverage (mm) mA Min-Max NI % ASiR- V Recon Range (mm) DLP (mGy- cm) Slice Thickness (mm) Interval* (mm) Pitch Table Speed (mm/s )
Group 3
Helical Large Body STD 50 6.82 285.46 405 Body 32 Acquisition for portal venous phase of the liver 0.969 38.75 0.5 5 20 120 SmartmA 50–500 mA NI=12 Avg mA 150 26.5 STD 50 9.09 380.61 400.625 Body 32 DMPR Helical Large Body 0.969 38.75 0.5 0.625 20 120 Axial scan with DMPR and SmartPrep Evaluation for abdominal aortic aneurysm CT ABD PELVIS ANGIO SmartPrep SmartmA 50-500 mA NI=22.1 Avg mA 200 26.6 CT ABD PEL LE ANGIO MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation of vascular structures STD 50 14.31 1468.17 1000.625 Body 32
Helical Large Body 1.375 45.83 0.6 0.625 20 120 Evaluation of vascular structures of abdomen, femurs and lower extremities (Runoff) SmartmA 50-500 mA NI=22.1 Avg mA 355 26.7 CT Colon Pro 3D Helical Large Body 0.969 38.75 0.5 1.25 0.625 20 120 75 STD 50 3.41 142.73 401.25 Body 32 CT ABD PELVIS COLONOGRA PHY Helical scan mode Supine acquisition for using Advantage CTC Pro for evaluation of the colon
CT Colon Pro 3D Helical Large Body 0.969 38.75 0.5 1.25 0.625 20 120 75 STD 50 3.41 142.73 401.25 Body 32 Helical scan mode Prone acquisition for using Advantage CTC Pro for evaluation of the colon 26.8 Trauma Full Body DMPR
Axial Head
1 5 20 120 200 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities STD 50 5.68 152.68 252.5 Body 32
DMPR Helical Large Body 0.969 38.75 0.5 2.5 20 120 C-Spine Helical mode with DMPR, Evaluation for soft tissue, disc and bone abnormalities SmartmA 80–500 mA NI=9.1 Avg mA 125 5971512-1EN Revision 1 66
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 67 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Rotation Time (seconds) Detector Coverage (mm) mA Min-Max NI % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval* (mm)
Group 1 DMPR Helical Large Body STD 50 4.02 129.97 300 Body 32 Evaluation of chest region for abnormalities. 1.531 61.25 0.5 5 20 120 SmartmA 80-500 mA NI=13 Avg mA 140 STD 50 7.73 319.66 400 Body 32
Group 2 DMPR Helical Large Body 0.969 38.75 0.5 5 20 120 Evaluation of abdominal and pelvic region for abnormalities. SmartmA 80-500 mA NI=12 Avg mA 170 26.10** CT GUIDE BX DRAIN 5mm
Helical Large Body STD 50 5.0 259.32 505 Body32 Localization scan for CT interventional scan 0.969 38.75 0.5 5 20 120 SmartmA 50-500 NI= 12 Avg mA 110
Smart Step Large Body
0.8 5 10 120 60 STD 0 364.66 364.66 10 Body32 Step and Shoot scan for interventional scan 26.12** STD 50 5.0 259.32 505 Body32 Localization scan for CT interventional scan
Helical Large Body 0.969 38.75 0.5 5 20 120 CT GUIDE BX DRAIN 3D Guidance 2.5mm/9i SmartmA 50-500 NI= 12 Avg mA 110
Large Body
0.8 2.5 20 120 60 STD 0 311.58 623.16 20 Body32 Step and Shoot scan for interventional scan 3D Guidan ce 26.13 STD 50 8.0 414.87 505 Body 32 DMPR Helical Large Body 0.969 24.22 0.8 5 20 120 CT ABD PELVIS 5mm SmartPrep DMPR MAR SmartmA 50-500 NI= 12 Avg mA 110 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures with MAR reconstructions included 26.14 STD 50 9.09 380.61 400.625 Body 32 DMPR Helical Large Body 0.969 38.75 0.5 0.625 20 120 Axial scan with DMPR and Smart- Prep Evaluation for abdominal aortic aneurysm with MAR reconstructions CT ABD PELVIS ANGIO SmartPrep MAR SmartmA 50-500 NI= 22.1 Avg mA 200 67 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 68 — text în engleză

Reference Protocol Guide Protocol Name SFOV kV Description Protocol Number Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Rotation Time (seconds) Detector Coverage (mm) mA Min-Max NI % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval (mm) 26.15 STD 50 8.0 414.87 505 Body 32 DMPR Helical Large Body 0.969 24.22 0.8 5 20 120 SmartmA 50-500 mA NI=12 Avg mA 110 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures and DMPR CT ABD PELVIS 5mm SmartPrep DMPR Auto Prescription 26.16 STD 50 6.61 276.91 400.625 Body 32 DMPR Helical Large Body 0.969 38.75 0.5 0.625 20 100 Axial scan with DMPR and SmartPrep Evaluation for abdominal aortic aneurysm SmartmA 70-480 mA NI=25.8 Avg mA 235 CT ABD PELVIS ANGIO SmartPrep Auto Prescription 26.17* MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation of vascular structures CT ABD PEL LE ANGIO Auto Prescription STD 50 14.59 1487.04 1000.625 Body 32
Helical Large Body 0.969 32.29 0.6 0.625 20 120 Evaluation of vascular structures of abdomen, femurs, and lower extremities (Runoff) SmartmA 50-500 mA NI=22.1 Avg mA 255
26.18**
DMPR
Helical
0.8
0.625
20
120
STD
50
13.81
716.59
500.625
Body 32
Large Body
0.969 24.22 SmartmA
 50-500 mA NI=18 Avg mA 190 CT ABD PELVIS SmartPrep DMPR True Enhance DL Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures with True Enhance DL
26.19**
DMPR
Helical
0.8
5
20
120
STD
50
8.0
414.87
505
Body 32
Large Body
0.969 24.22 SmartmA
 50-500 mA NI=12 Avg mA 110 Basic Abdomen Pelvis and SmartPrep Evaluation for abnormalities of abdominal and pelvic structures and DMPR with True Enhance DL CT ABD PELVIS 5mm SmartPrep DMPR True Enhance DL
26.20**
DMPR
Helical
0.8
0.625
20
120
STD
50
13.81
716.59
500.625
Body 32
0.969 24.22
Large Body SmartmA
 50-500 mA NI=18 Avg mA 190
Helical scan for evaluation of kidney, ureters, and bladder for renal stone with True Enhance DL CT ABD PELVIS URO DMPR Helical True Enhance DL
5971512-1EN Revision 1 68
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 69 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval (mm) 26.21* MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation multi phase liver CT ABD MULTIPH LIVER True Enhance DL STD 50 6.82 135.5 185 Body 32
Group 1
Helical Large Body 0.969 38.75 0.5 5 20 120 Acquisition for early arterial, phase of the liver with True Enhance DL SmartmA 50–500 mA NI=12 Avg mA 150 STD 50 6.82 135.5 185 Body 32
Group 2
Helical Large Body 0.969 38.75 0.5 5 20 120 Acquisition for late arterial phase of the liver with True Enhance DL SmartmA 50–500 mA NI=12 Avg mA 150 STD 50 6.82 285.46 405 Body 32
Group 3
Helical Large Body 0.969 38.75 0.5 5 20 120 Acquisition for portal venous phase of the liver with True Enhance DL SmartmA 50–500 mA NI=12 Avg mA 150 STD 50 9.09 380.61 400.625 Body 32 26.22 DMPR Helical Large Body 0.969 38.75 0.5 0.625 20 120 SmartmA
 50-500 mA NI=22.1 Avg mA 200 Axial scan with DMPR and SmartPrep Evaluation for abdominal aortic aneurysm with True Enhance DL CTABD PELVIS ANGIO SmartPrep True Enhance DL 26.23 MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation of vascular structures CT ABD PEL LE ANGIO True Enhance DL
Helical Large Body 1.375 45.83 0.6 0.625 20 120 STD 50 14.31 1468.1 7 1000.625 Body 32 SmartmA
 50-500 mA NI=22.1 Avg mA 355 Evaluation of vascular structures of abdomen, femurs and lower extremities (Runoff) with True Enhance DL
69 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 70 — text în engleză

Reference Protocol Guide SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) mA Min-Max NI Rotation Time (seconds) Detector Coverage (mm) % ASiR- V Recon Range (mm) DLP (mGy- cm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval (mm) 26.24* MIROI Axial Large Body
1 5 0 5 120 80 STD 0 98.34 49.17 5 Body 32 Timing Bolus for Evaluation multi phase liver CT ABD MULTIPH LIVER DLIR STD 50 6.82 135.5 185 Body 32 Acquisition for early arterial, phase of the liver with DLIR
Group 1
Helical Large Body 0.969 38.75 0.5 5 20 120 SmartmA 50–500 mA NI=12 Avg mA 150
Group 2
Helical Large Body 0.969 38.75 0.5 5 20 120 STD 50 6.82 135.5 185 Body 32 Acquisition for late arterial phase of the liver with DLIR SmartmA 50–500 mA NI=12 Avg mA 150
Group 3
Helical Large Body 0.969 38.75 0.5 5 20 120 STD 50 6.82 285.46 405 Body 32 Acquisition for portal venous phase of the liver with DLIR SmartmA 50–500 mA NI=12 Avg mA 150 26.25** STD 50 9.09 380.61 400.625 Body 32 DMPR Helical Large Body 0.969 38.75 0.5 0.625 20 120 CTABD PELVIS ANGIO SmartPrep DLIR SmartmA
 50-500 mA NI=22.1 Avg mA 200
Axial scan with DMPR and SmartPrep Evaluation for abdominal aortic aneurysm with DLIR 26.26**
Axial Head
1 5 20 120 200 STD# 50 33.84 473.73 140 Head 16 Routine head for evaluation of brain for abnormalities DLIR Trauma Full Body DMPR DILR STD 50 5.68 152.68 252.5 Body 32
DMPR Helical Large Body 0.969 38.75 0.5 2.5 20 120 SmartmA 80–500 mA NI=9.1 Avg mA 125 C-Spine Helical mode with DMPR, Evaluation for soft tissue, disc and bone Abnormalities with DLIR
Group 1 DMPR Helical Large Body 1.531 61.25 0.5 5 20 120 STD 50 4.02 129.97 300 Body 32 Evaluation of chest region for Abnormalities with DLIR SmartmA
 80-500 mA NI=13 Avg mA 140 STD 50 7.73 319.66 400 Body 32
Group 2 DMPR Helical Large Body 0.969 38.75 0.5 5 20 120 Evaluation of abdominal and pelvic region for abnormalities with DLIR SmartmA
 80-500 mA NI=12 Avg mA 170 5971512-1EN Revision 1 70
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 71 — text în engleză

Reference Protocol Guide 6.7 Adult Spine Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. mA
Pitch Rotation Recon SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type Phantom (cm) CTDIvol (mGy) Detector
 Coverage (mm) Min- Max NI Range (mm) % ASiR- V Table Speed (mm/s) Time (seconds) DLP (mGy- cm) Slice Thickness (mm) Interval (mm) 0.531 0.8 0.625 20 120 27.1 CT L SPINE DMPR DMPR Helical Large Body BONE PLUS 50 45.92 883.92 175.625 Body 32 13.28 Smart-mA 50-500 mA NI=20 Evaluation of soft tissue and bony structures of lumbar spine with DMPR Avg mA 330 0.531 0.8 0.625 20 120 27.2 CT L SPINE DMPR MAR DMPR Helical Large Body BONE PLUS 50 45.92 883.92 175.625 Body 32 13.28 Smart-mA 50-500 mA NI=20 Avg mA 330 Evaluation of soft tissue and bony structures of lumbar spine with DMPR with metal artifact reductions reconstructions included 0.531 27.3 1 0.625 20 120 DMPR Helical Large Body BONE PLUS 50 46.09 887.18 175.625 Body 32 10.63 Smart-mA 50-500 mA NI=18 Evaluation of soft tissue and bony structures of lumbar spine with DMPR CT L SPINE DMPR Auto Prescription Avg mA 265 0.531 13.28 0.8 0.625 20 120 27.4 CTLSPINE DMPR DLIR DMPR Helical Large Body Smart-mA 50-500 mA NI=20 BONE PLUS 50 45.92 883.92 175.625 Body 32 Evaluation of soft tissue and
 bony structures of lumbar spine with DMPR with DLIR Avg mA 330 27.5* 0.531 13.28 0.8 0.625 20 120 DMPR Helical Large Body Smart-mA 50-500 mA NI=20 BONE PLUS 50 45.92 883.92 175.625 Body 32 CTLSPINE DMPR MAR DLIR Avg mA 330 Evaluation of soft tissue and bony structures of lumbar spine with DMPR with metal artifact reductions reconstructions included with DLIR 71 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 72 — text în engleză

Reference Protocol Guide 6.8 Adult Pelvis Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. Rotation Recon Pitch mA %
Protocol Protocol Post Scan Recon Phantom CTDIvol DLP Detector Coverage SFOV kV Description Table Speed Min-Max NI Time Range (mm) Number Name Process Type Type (mGy) (cm) ASiR- V (mm/s) (seconds) (mm) (mGy- cm) Slice Thickness (mm) Interval (mm) SmartmA 50–500 mA 28.1 CT PELVIS DMPR DMPR Helical Large Body BONE PLUS 50 15.00 402.92 251.25 Body 32 0.969
 19.38 1 1.25 20 120 Evaluation of pelvis bony structures for fracture with DMPR NI=20 Avg mA 165 28.2 CT PELVIS DMPR MAR DMPR Helical Large Body BONE PLUS 50 15.00 402.92 251.25 Body 32 0.969
 19.38 1 1.25 20 120 SmartmA 50–500 mA NI=20 Avg mA 165 Evaluation of pelvis bony structures for fracture with DMPR with metal artifact reductions reconstructions included 28.3* CTPELVIS DMPR DLIR DMPR Helical Large Body 0.969
 19.38 1 1.25 20 120 BONE PLUS 50 15.00 402.92 251.25 Body 32 Evaluation of pelvis bony structures for fracture with DMPR with DLIR SmartmA 50–500 mA NI=20 Avg mA 165 5971512-1EN Revision 1 72
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 73 — text în engleză

Reference Protocol Guide 6.9 Adult Lower Extremity Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed.
Pitch Rotation Recon mA % DLP
Protocol Protocol Post Scan Recon Phantom CTDIvol Detector
 Coverage SFOV kV Description Min-Max Time Range Table Speed Number Name Process Type Type (mGy) (cm) (mm) ASiR- V (mGy- cm) NI (seconds) (mm) (mm/s) Slice Thickness (mm) Interval* (mm) 29.1 CT LE ANKLE
Helical Large Body STD 50 9.94 136.54 120.625 Body 32 Evaluation of soft tissue and bony anatomy of ankle area 0.531 10.63 1 0.625 20 120 SmartmA 50–200 mA NI=22.1 Avg mA 60 STD 50 9.94 136.54 120.625 Body 32 29.2**
Helical Large Body 0.531 10.63 1 0.625 20 120 CT LE ANKLE
 MAR Evaluation of soft tissue and bony anatomy of ankle area with metal artifact reductions reconstructions included SmartmA 50–200 mA NI=22.1 Avg mA 60 73 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 74 — text în engleză

Reference Protocol Guide Page intentionally left blank 5971512-1EN Revision 1 74
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 75 — text în engleză

Reference Protocol Guide Chapter 7 Reference Pediatric Protocols for 20mm detector configuration system 7.1 Pediatric Head Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. Pitch mA Rotation Recon % DLP
Protocol Protocol Post Scan Recon Phantom CTDIvol Detector
 Coverage SFOV kV Description Time Range Table Speed Min- Max Number Name Process Type Type (mGy) (cm) (mm) ASiR- V (mGy- cm) (seconds) (mm) (mm/s) NI Slice Thickness (mm) Interval* (mm) 31.1
Axial Head
1 5 20 120 110 STD 50 18.61 223.33 120 Head 16 Routine head for children (5 years to 18 years) CT HEAD Ped 5 years to 18 years 31.2
Axial Head
0.5 5 20 120 200 STD 50 16.92 203.03 120 Head 16 Routine head for children (18 months to 5 years) CT HEAD Ped 18 months to 5 years 31.3 CT HEAD Ped to 18 months
Axial Ped Head
0.5 5 20 120 145 STD 50 12.27 147.2 120 Head 16 Routine head for infant (up to 18 months) 75 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 76 — text în engleză

Reference Protocol Guide 7.2 Pediatric Chest Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated. NOTE ** These protocols are installed options. As a result the numbering is a function of when and where the option is installed. Pitch
Rotation mA Recon Phantom Protocol Name SFOV kV Description (cm) Protocol Number Post Process Scan Type Recon Type CTDIvol (mGy) Detector
 Coverage (mm) % ASiR -V DLP (mGy- cm) Time (seconds) Min-Max NI Range (mm) Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) 35.1.1
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 50 STD 50 1.12 11.25 78.75 Body 32 Weight and height based routine chest protocol CT CHEST 6.0-7.5 kg (13.2-16.5 lbs)
35.1.2** MIROI Axial Small Body
1 5 0 Timing bolus for Weight and height based cardiac protocol 5 80 50 STD 0 21.29 10.65 5 Body 32 CT CHST HEART Vascular Assessment
 6.0-7.5 kg
 (13.2-16.5 lbs) STD 50 5.66 52.35 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 12.57 0.35 0.625 20 80 Weight and height based cardiac vascular assessment protocol ECG
 34-170 mA Phase 40-80 Avg mA 140 35.2.1
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 70 STD 50 1.57 15.76 78.75 Body 32 Weight and height based routine chest protocol CT CHEST
 7.5-9.5kg
 (16.5-20.9 lbs) 35.2.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for weight and height based cardiac protocol CT CHST HEART Vascular Assessment
 7.5-9.5 kg
 (16.5-20.9 lbs) STD 50 5.98 55.35 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 12.57 0.35 0.625 20 80 Weight and height based cardiac vascular assessment protocol ECG 36-180 mA Phase 40-80 Avg mA=148 5971512-1EN Revision 1 76
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 77 — text în engleză

Reference Protocol Guide Pitch
Rotation mA Recon Phantom Protocol Name SFOV kV Description (cm) Protocol Number Post Process Scan Type Recon Type CTDIvol (mGy) Detector
 Coverage (mm) % ASiR -V DLP (mGy- cm) Time (seconds) Min-Max NI Range (mm) Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) 35.3.1
Helical Small Body 1.375 55.00 0.5 3.75 20 120 75 STD 50 2.1 21.87 82.5 Body 32 Weight and height based routine chest protocol CT CHEST 9.5-11.5 kg
 (20.9-25.4 lbs) 35.3.2** 5 80 50 STD 0 21.29 10.65 5 Body 32 MIROI Axial Small Body
1 5 0 Timing bolus for weight and height based cardiac protocol CT CHST HEART Vascular Assessment 9.5-11.5 kg
 (20.9-25.4 lbs) STD 50 6.31 58.34 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 12.57 0.35 0.625 20 80 Weight and height based cardiac vascular assessment protocol ECG 38-190 mA Phase 40-80 Avg mA 156
Helical Small Body 1.375 55.00 0.5 5 20 120 70 STD 50 1.96 22.62 95.0 Body 32 Weight and height based routine chest protocol 35.4.1 CT CHEST
 11.5-14.5 kg (25.4-32.0 lbs) 35.4.2** 5 80 50 STD 0 21.29 10.65 5 Body 32 MIROI Axial Small Body
1 5 0 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment 11.5-14.5 kg (25.4-32.0 lbs) STD 50 6.79 62.83 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 12.57 0.35 0.625 20 80 Weight and height based cardiac vascular assessment protocol ECG 41-205 mA Phase 40-80 Avg mA 168 35.5.1
Helical Small Body 1.375 55.00 0.5 5 20 120 75 STD 50 2.1 24.24 95.0 Body 32 Weight and height based routine chest protocol CT CHEST
 14.5-18.5 kg (32.0-40.8 lbs) 35.5.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for weight and height based cardiac protocol CT CHST HEART Vascular Assessment 14.5-18.5 kg (32.0-40.8 lbs) 77 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 78 — text în engleză

Reference Protocol Guide Pitch
Rotation mA Recon SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Detector Coverage (mm) % ASiR -V DLP (mGy- cm) Time (seconds) Min-Max NI Range (mm) Table Speed (mm/s) Slice Thickness (mm) Interval* (mm) STD 50 7.52 69.56 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 12.57 0.35 0.625 20 80 Weight and height based cardiac vascular assessment protocol ECG 46-230 mA Phase 40-80 Avg mA 186 35.6.1
Helical Small Body 1.375 55.00 0.5 5 20 120 80 STD 50 2.24 25.85 95.0 Body 32 Weight and height based routine chest protocol CT CHEST
 18.5-22.5 kg (40.8-49.6 lbs) 35.6.2** MIROI Axial Small Body
1 5 0 5 80 50 STD 0 21.29 10.65 5 Body 32 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment
 18.5-22.5 kg (40.8-49.6 lbs) STD 50 7.84 72.55 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 12.57 0.35 0.625 20 80 Weight and height based cardiac vascular assessment protocol ECG 48-240 mA Phase 40-80 Avg mA 194 35.7.1
Helical Large Body 1.375 55.00 0.5 5 20 120 80 STD 50 2.56 32.12 105.0 Body 32 Weight and height based routine chest protocol CT CHEST
 22.5-31.5 kg (49.6-69.5 lbs) 35.7.2** MIROI Axial Small Body
1 5 0 5 100 50 STD 0 40.53 20.26 5 Body 32 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment
 22.5-31.5 kg (49.6-69.5 lbs) STD 50 13.16 121.76 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 12.57 0.35 0.625 20 100 Weight and height based cardiac vascular assessment protocol ECG 42-210 mA Phase 40-80 Avg mA 171 35.8.1
Helical Large Body 1.375 55.00 0.5 5 20 120 85 STD 50 2.72 39.57 125.00 Body 32 Weight and height based routine chest protocol CT CHEST
 31.5-40.5 kg (69.5-89.3 lbs) 5971512-1EN Revision 1 78
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 79 — text în engleză

Reference Protocol Guide mA Recon SFOV kV Description Protocol Number Protocol Name Post Process Scan Type Recon Type CTDIvol (mGy) Phantom (cm) Detector Coverage (mm) Rotation Time (seconds) % ASiR -V DLP (mGy- cm) Min-Max NI Range (mm) Pitch Table Speed (mm/s) Slice Thickness (mm) Interval (mm) 35.8.2* MIROI Axial Small Body
1 5 0 5 100 50 STD 0 40.53 20.26 5 Body 32 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment
 31.5-40.5 kg (69.5-89.3 lbs) STD 50 14.32 132.44 75.625 Body 32 Cardiac Small 0.22 12.57 0.35 0.625 20 100
Cardiac SSSeg Weight and height based cardiac vascular assessment protocol ECG 46-230 mA Phase 40-80 Avg mA 186 35.9.1
Helical Large Body 1.375 55.00 0.5 5 20 120 95 STD 50 3.04 53.35 155.0 Body 32 Weight and height based routine chest protocol CT CHEST
 40.5-55.0 kg (89.3-121.3 lbs) 35.9.2** MIROI Axial Small Body
1 5 0 5 100 50 STD 0 40.53 20.26 5 Body 32 Timing bolus for Weight and height based cardiac protocol CT CHST HEART Vascular Assessment
 40.5-55.0 kg (89.3-121.3 lbs) STD 50 15.92 147.22 75.625 Body 32
Cardiac SSSeg Cardiac Small 0.22 12.57 0.35 0.625 20 100 Weight and height based cardiac vascular assessment protocol ECG 50-250 mA Phase 40-80 Avg mA 197 79 5971512-1EN Revision 1
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 80 — text în engleză

Reference Protocol Guide 7.3 Pediatric Abdomen Interval* • For Helical acquisitions, Interval is equal to Slice Thickness, unless otherwise indicated. • For Axial and Cine acquisitions, Interval is equal to Detector Coverage, unless otherwise indicated.
Pitch mA
Recon % DLP
Protocol Protocol Post Scan Recon CTDIvol Phantom Slice Thickness (mm) SFOV kV Description Range Table Speed Detector Coverage (mm) Min- Max Rotation Time (seconds) Number Name Process Type Type (cm) (mGy) ASiR- V (mGy- cm) (mm/s) (mm) NI Interval* (mm) 36.1.1 CT ABDOMEN 6.0-7.5 kg (13.2-16.5 lbs)
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 60 STD 50 1.34 14.01 82.5 Body 32 Weight and height based routine abdomen protocol 36.2.1 CT ABDOMEN 7.5-9.5 kg (16.5-20.9 lbs)
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 95 STD 50 2.13 24.58 93.75 Body 32 Weight and height based routine abdomen protocol 36.3.1 CT ABDOMEN 9.5-11.5 kg (20.9-25.4 lbs)
Helical Ped Body 1.375 68.75 0.4 3.75 20 120 110 STD 50 2.46 31.23 105 Body 32 Weight and height based routine abdomen protocol 36.4.1 CT ABDOMEN 11.5-14.5 kg (25.4-32.0 lbs)
Helical Small Body 1.375 55.00 0.5 5 20 120 75 STD 50 2.1 28.44 115 Body 32 Weight and height based routine abdomen protocol 36.5.1 CT ABDOMEN 14.5-18.5 kg (32.0-40.8 lbs)
Helical Small Body 1.375 55.00 0.5 5 20 120 80 STD 50 2.24 30.33 115 Body 32 Weight and height based routine abdomen protocol 36.6.1 CT ABDOMEN 18.5-22.5 kg (40.8-49.6 lbs)
Helical Large Body 1.375 55.00 0.5 5 20 120 70 STD 50 2.24 34.83 135 Body 32 Weight and height based routine abdomen protocol 36.7.1 CT ABDOMEN 22.5-31.5 kg (49.6-69.5 lbs)
Helical Large Body 1.375 55.00 0.5 5 20 120 90 STD 50 2.88 50.54 155 Body 32 Weight and height based routine abdomen protocol 36.8.1 CT ABDOMEN 31.5-40.5 kg (69.5-89.3 lbs)
Helical Large Body 1.375 55.00 0.5 5 20 120 100 STD 50 3.2 56.15 155 Body 32 Weight and height based routine abdomen protocol 1.375 36.9.1 CT ABDOMEN 40.5-55.0 55.00 0.5 5 20 120 120 STD 50 3.84 86.6 205 Body 32 Weight and height based routine abdomen protocol kg (89.3-121.3 lbs)
Helical Large Body 5971512-1EN Revision 1 80
Revolution™ Ascend, Revolution™ Ascend Elite, Revolution™ Ascend Plus, Revolution™ Ascend Select

Pagina 81 — text în engleză

Page intentionally left blank 81 5971512-1EN Revision 1
R l ti ™A d R l ti ™A d Elit R l ti ™A d Pl R l ti ™A d S l t

Pagina 82 — text în engleză

www.gehealthcare.com
