CT — Torace și abdomen de rutină (MCB)
Sursă și prelucrare editorială
- Proveniență
- 1 referință declarată
- Fidelitatea preluării
- Nedocumentată
- Revizuire medicală
- Nedocumentată
Referințele declarate nu confirmă singure fidelitatea preluării sau aprobarea protocolului pentru utilizare locală.
Detalii despre surse și verificări
MCB Radiology — 5 Routine CA
- Ediție / versiune a sursei
- Neprecizată
- Pagină / secțiune
- Pagini: 1–4
- Relația cu protocolul
- Document original importat integral; atribuirea autorilor rămâne cea din PDF.
- Data consultării
- 2026-09-27
Prelucrarea acestei pagini
- Mod de prelucrare
- Titlu și navigare în română; documentul sursă în engleză.; PDF original integral, previzualizare și text extras automat; fără completarea parametrilor clinici lipsă.
- Adaptări față de sursă
- Nedocumentate; absența evidenței nu confirmă o preluare integrală.
- Responsabil pentru prelucrare
- Neprecizat
- Atribuire existentă în pagină
- MCB Radiology (portalul sursă). Această atribuire nu identifică automat autorul sursei sau revizorul medical.
- Versiunea paginii
- mcb-83491981a730
- Actualizare declarată a paginii
- 2026-09-27 — distinctă de revizuirea medicală.
Verificarea fidelității: Nedocumentată
Revizuirea medicală: Nedocumentată
Documentul original MCB — Torace și abdomen de rutină
Protocol · 4 pagini · consultat la 2026-09-27.
Descarcă PDF-ul integral · Sursa MCB · Catalogul MCB pentru această modalitate
Instrucțiunile, valorile și ilustrațiile din documentul original sunt păstrate în engleză. Titlul și navigarea sunt în română.
Pagina 1
Pagina 2
Pagina 3
Pagina 4
Textul documentului original

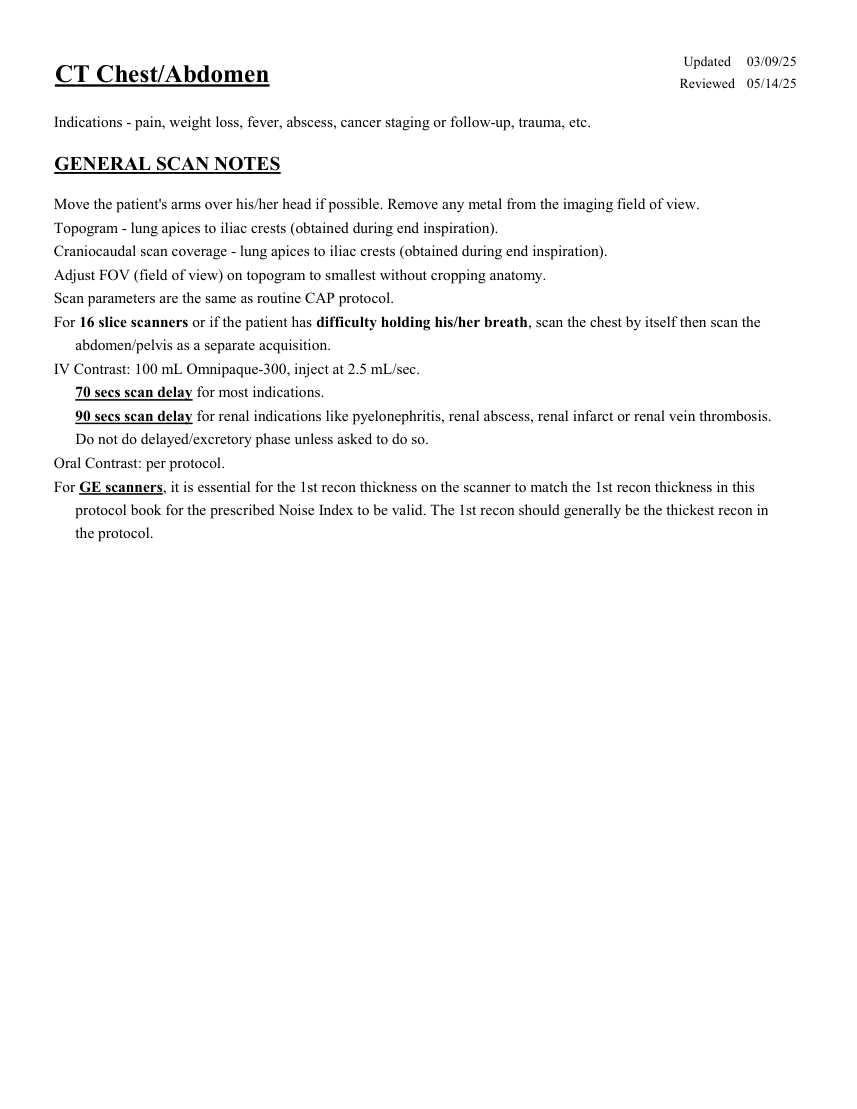

Pagina 1 — text în engleză
Updated 03/09/25 CT Chest/Abdomen Reviewed 05/14/25 Indications - pain, weight loss, fever, abscess, cancer staging or follow-up, trauma, etc. GENERAL SCAN NOTES Move the patient's arms over his/her head if possible. Remove any metal from the imaging field of view. Topogram - lung apices to iliac crests (obtained during end inspiration). Craniocaudal scan coverage - lung apices to iliac crests (obtained during end inspiration). Adjust FOV (field of view) on topogram to smallest without cropping anatomy. Scan parameters are the same as routine CAP protocol. For 16 slice scanners or if the patient has difficulty holding his/her breath, scan the chest by itself then scan the abdomen/pelvis as a separate acquisition. IV Contrast: 100 mL Omnipaque-300, inject at 2.5 mL/sec. 70 secs scan delay for most indications. 90 secs scan delay for renal indications like pyelonephritis, renal abscess, renal infarct or renal vein thrombosis. Do not do delayed/excretory phase unless asked to do so. Oral Contrast: per protocol. For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in the protocol.

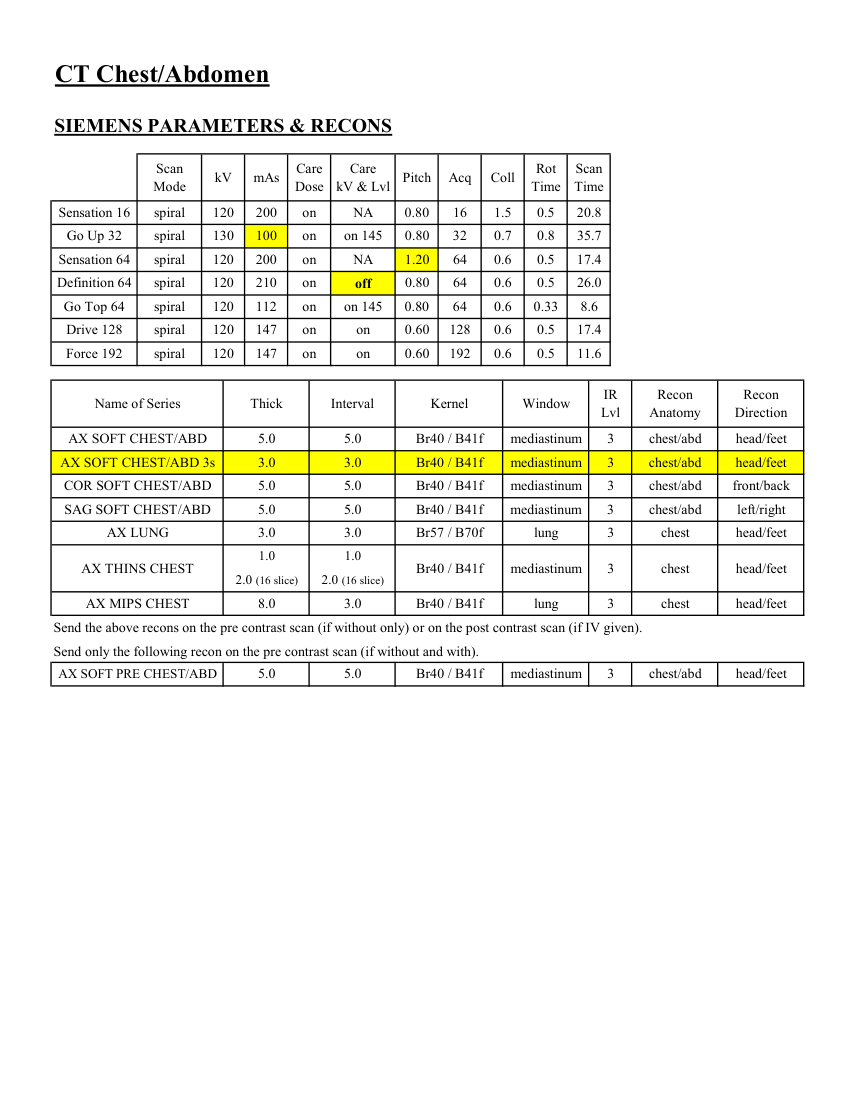

Pagina 2 — text în engleză
CT Chest/Abdomen SIEMENS PARAMETERS & RECONS Scan
Care
Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Rot Time Time Sensation 16 spiral 120 200 on NA 0.80 16 1.5 0.5 20.8 Go Up 32 spiral 130 100 on on 145 0.80 32 0.7 0.8 35.7 Sensation 64 spiral 120 200 on NA 1.20 64 0.6 0.5 17.4 Definition 64 spiral 120 210 on off 0.80 64 0.6 0.5 26.0 Go Top 64 spiral 120 112 on on 145 0.80 64 0.6 0.33 8.6 Drive 128 spiral 120 147 on on 0.60 128 0.6 0.5 17.4 Force 192 spiral 120 147 on on 0.60 192 0.6 0.5 11.6 Recon
Recon
Name of Series Kernel Window IR
Thick Interval Lvl Anatomy Direction AX SOFT CHEST/ABD Br40 / B41f mediastinum 3 chest/abd head/feet 5.0 5.0 AX SOFT CHEST/ABD 3s Br40 / B41f mediastinum 3 chest/abd head/feet 3.0 3.0 COR SOFT CHEST/ABD Br40 / B41f mediastinum 3 5.0 5.0 chest/abd front/back SAG SOFT CHEST/ABD Br40 / B41f mediastinum 3 5.0 5.0 chest/abd left/right head/feet AX LUNG Br57 / B70f lung 3 3.0 3.0 chest 1.0 1.0 AX THINS CHEST Br40 / B41f mediastinum 3 chest head/feet 2.0 (16 slice) 2.0 (16 slice) AX MIPS CHEST Br40 / B41f lung 3 8.0 3.0 chest head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE CHEST/ABD Br40 / B41f mediastinum 3 chest/abd head/feet 5.0 5.0
Care
Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Rot Time Time Sensation 16 spiral 120 200 on NA 0.80 16 1.5 0.5 20.8 Go Up 32 spiral 130 100 on on 145 0.80 32 0.7 0.8 35.7 Sensation 64 spiral 120 200 on NA 1.20 64 0.6 0.5 17.4 Definition 64 spiral 120 210 on off 0.80 64 0.6 0.5 26.0 Go Top 64 spiral 120 112 on on 145 0.80 64 0.6 0.33 8.6 Drive 128 spiral 120 147 on on 0.60 128 0.6 0.5 17.4 Force 192 spiral 120 147 on on 0.60 192 0.6 0.5 11.6 Recon
Recon
Name of Series Kernel Window IR
Thick Interval Lvl Anatomy Direction AX SOFT CHEST/ABD Br40 / B41f mediastinum 3 chest/abd head/feet 5.0 5.0 AX SOFT CHEST/ABD 3s Br40 / B41f mediastinum 3 chest/abd head/feet 3.0 3.0 COR SOFT CHEST/ABD Br40 / B41f mediastinum 3 5.0 5.0 chest/abd front/back SAG SOFT CHEST/ABD Br40 / B41f mediastinum 3 5.0 5.0 chest/abd left/right head/feet AX LUNG Br57 / B70f lung 3 3.0 3.0 chest 1.0 1.0 AX THINS CHEST Br40 / B41f mediastinum 3 chest head/feet 2.0 (16 slice) 2.0 (16 slice) AX MIPS CHEST Br40 / B41f lung 3 8.0 3.0 chest head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE CHEST/ABD Br40 / B41f mediastinum 3 chest/abd head/feet 5.0 5.0

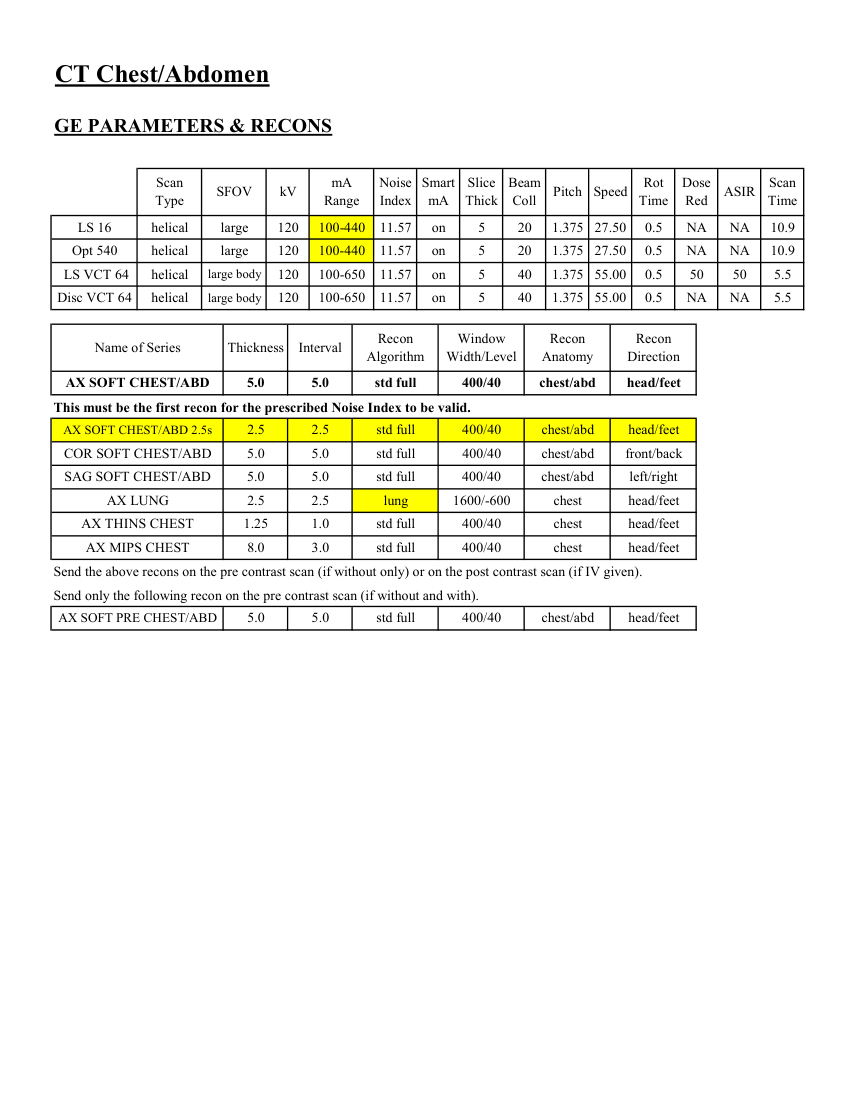

Pagina 3 — text în engleză
CT Chest/Abdomen GE PARAMETERS & RECONS Scan
Smart
Slice
Beam
Dose
Scan
Speed Rot
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Time Red ASIR Time LS 16 helical large 120 100-440 11.57 on 5 20 NA 1.375 27.50 0.5 NA 10.9 Opt 540 helical large 120 100-440 11.57 on 5 20 1.375 27.50 0.5 NA NA 10.9 LS VCT 64 helical large body 120 100-650 11.57 on 5 40 1.375 55.00 0.5 50 50 5.5 Disc VCT 64 helical large body 120 100-650 11.57 on 5 40 1.375 55.00 0.5 NA NA 5.5 Window
Recon
Recon
Name of Series Thickness Interval Recon
Algorithm Width/Level Anatomy Direction AX SOFT CHEST/ABD 5.0 5.0 std full 400/40 chest/abd head/feet This must be the first recon for the prescribed Noise Index to be valid. AX SOFT CHEST/ABD 2.5s 2.5 2.5 std full 400/40 chest/abd head/feet COR SOFT CHEST/ABD 5.0 5.0 std full 400/40 chest/abd front/back SAG SOFT CHEST/ABD 5.0 5.0 std full 400/40 chest/abd left/right AX LUNG 2.5 2.5 lung 1600/-600 chest head/feet AX THINS CHEST 1.25 1.0 std full 400/40 chest head/feet AX MIPS CHEST 8.0 3.0 std full 400/40 chest head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE CHEST/ABD 5.0 5.0 std full 400/40 chest/abd head/feet
Smart
Slice
Beam
Dose
Scan
Speed Rot
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Time Red ASIR Time LS 16 helical large 120 100-440 11.57 on 5 20 NA 1.375 27.50 0.5 NA 10.9 Opt 540 helical large 120 100-440 11.57 on 5 20 1.375 27.50 0.5 NA NA 10.9 LS VCT 64 helical large body 120 100-650 11.57 on 5 40 1.375 55.00 0.5 50 50 5.5 Disc VCT 64 helical large body 120 100-650 11.57 on 5 40 1.375 55.00 0.5 NA NA 5.5 Window
Recon
Recon
Name of Series Thickness Interval Recon
Algorithm Width/Level Anatomy Direction AX SOFT CHEST/ABD 5.0 5.0 std full 400/40 chest/abd head/feet This must be the first recon for the prescribed Noise Index to be valid. AX SOFT CHEST/ABD 2.5s 2.5 2.5 std full 400/40 chest/abd head/feet COR SOFT CHEST/ABD 5.0 5.0 std full 400/40 chest/abd front/back SAG SOFT CHEST/ABD 5.0 5.0 std full 400/40 chest/abd left/right AX LUNG 2.5 2.5 lung 1600/-600 chest head/feet AX THINS CHEST 1.25 1.0 std full 400/40 chest head/feet AX MIPS CHEST 8.0 3.0 std full 400/40 chest head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE CHEST/ABD 5.0 5.0 std full 400/40 chest/abd head/feet

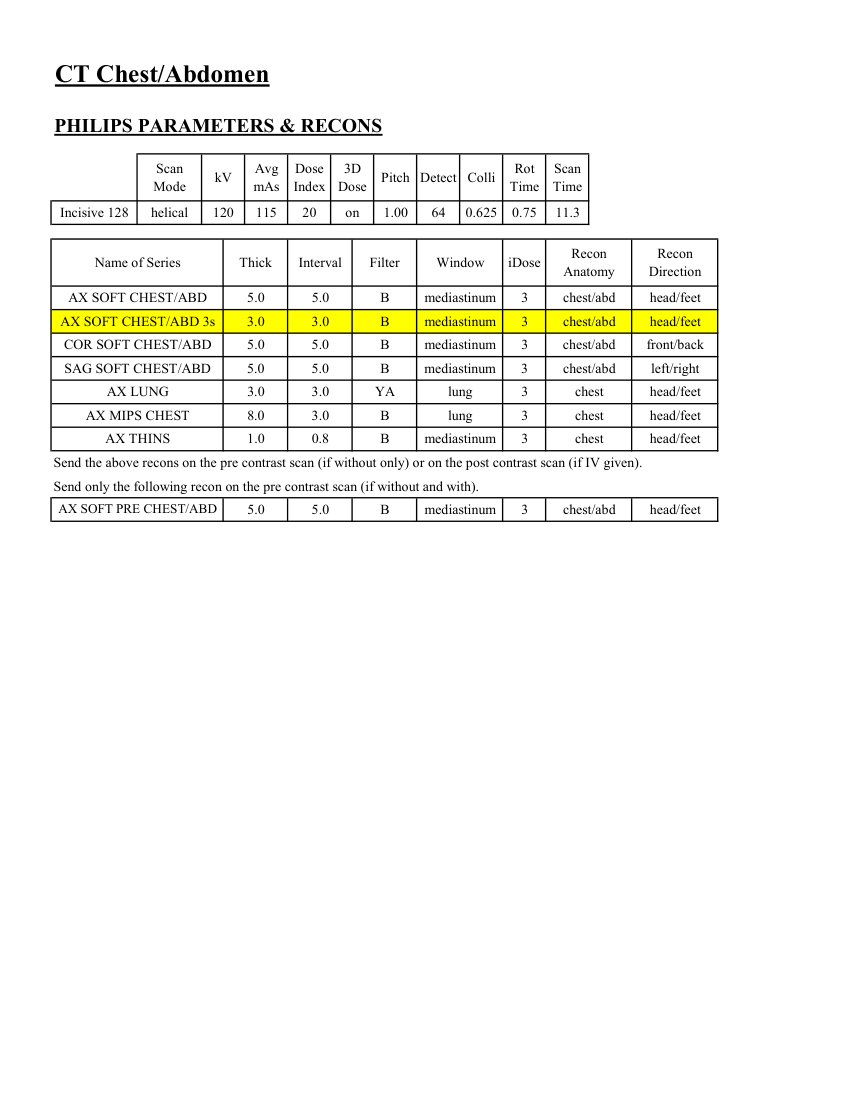

Pagina 4 — text în engleză
CT Chest/Abdomen PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Scan
Pitch Detect Colli Rot Mode kV Avg
mAs Index Dose Time Time Incisive 128 helical 120 115 20 on 1.00 64 0.625 0.75 11.3 Recon
Name of Series Thick Interval Filter Window iDose Recon
Anatomy Direction AX SOFT CHEST/ABD 5.0 5.0 B mediastinum 3 chest/abd head/feet AX SOFT CHEST/ABD 3s 3.0 3.0 B mediastinum 3 chest/abd head/feet COR SOFT CHEST/ABD 5.0 5.0 B mediastinum 3 chest/abd front/back chest/abd left/right SAG SOFT CHEST/ABD 5.0 5.0 B mediastinum 3 AX LUNG 3.0 3.0 YA lung 3 chest head/feet AX MIPS CHEST 8.0 3.0 B lung 3 chest head/feet AX THINS 1.0 0.8 B mediastinum 3 chest head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). chest/abd head/feet AX SOFT PRE CHEST/ABD 5.0 5.0 B mediastinum 3
Dose
3D
Scan
Pitch Detect Colli Rot Mode kV Avg
mAs Index Dose Time Time Incisive 128 helical 120 115 20 on 1.00 64 0.625 0.75 11.3 Recon
Name of Series Thick Interval Filter Window iDose Recon
Anatomy Direction AX SOFT CHEST/ABD 5.0 5.0 B mediastinum 3 chest/abd head/feet AX SOFT CHEST/ABD 3s 3.0 3.0 B mediastinum 3 chest/abd head/feet COR SOFT CHEST/ABD 5.0 5.0 B mediastinum 3 chest/abd front/back chest/abd left/right SAG SOFT CHEST/ABD 5.0 5.0 B mediastinum 3 AX LUNG 3.0 3.0 YA lung 3 chest head/feet AX MIPS CHEST 8.0 3.0 B lung 3 chest head/feet AX THINS 1.0 0.8 B mediastinum 3 chest head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). chest/abd head/feet AX SOFT PRE CHEST/ABD 5.0 5.0 B mediastinum 3
