Documentul original MCB — Rinichi
Protocol · 4 pagini · consultat la 2026-09-27.
Descarcă PDF-ul integral · Sursa MCB · Catalogul MCB pentru această modalitate
Instrucțiunile, valorile și ilustrațiile din documentul original sunt păstrate în engleză. Titlul și navigarea sunt în română.
Pagina 1
Pagina 2
Pagina 3
Pagina 4
Textul documentului original

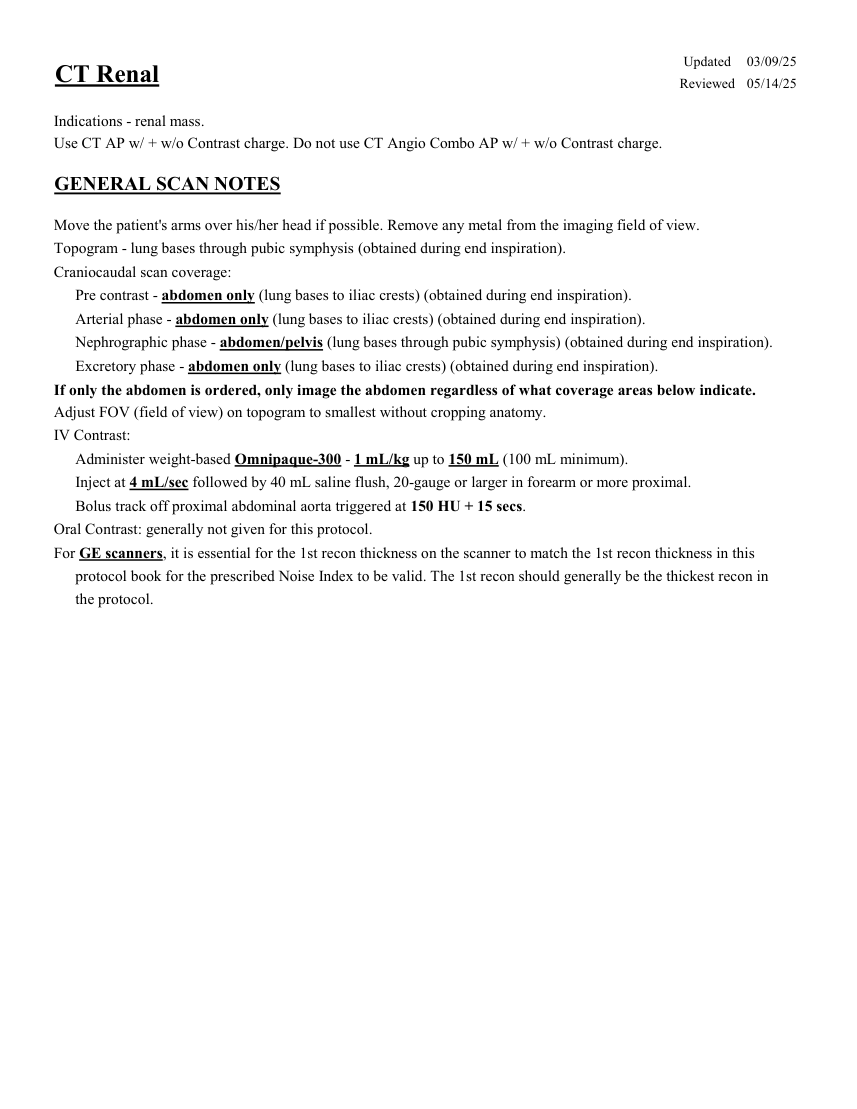

Pagina 1 — text în engleză
Updated 03/09/25 CT Renal Reviewed 05/14/25 Indications - renal mass. Use CT AP w/ + w/o Contrast charge. Do not use CT Angio Combo AP w/ + w/o Contrast charge. GENERAL SCAN NOTES Move the patient's arms over his/her head if possible. Remove any metal from the imaging field of view. Topogram - lung bases through pubic symphysis (obtained during end inspiration). Craniocaudal scan coverage: Pre contrast - abdomen only (lung bases to iliac crests) (obtained during end inspiration). Arterial phase - abdomen only (lung bases to iliac crests) (obtained during end inspiration). Nephrographic phase - abdomen/pelvis (lung bases through pubic symphysis) (obtained during end inspiration). Excretory phase - abdomen only (lung bases to iliac crests) (obtained during end inspiration). If only the abdomen is ordered, only image the abdomen regardless of what coverage areas below indicate. Adjust FOV (field of view) on topogram to smallest without cropping anatomy. IV Contrast: Administer weight-based Omnipaque-300 - 1 mL/kg up to 150 mL (100 mL minimum). Inject at 4 mL/sec followed by 40 mL saline flush, 20-gauge or larger in forearm or more proximal. Bolus track off proximal abdominal aorta triggered at 150 HU + 15 secs. Oral Contrast: generally not given for this protocol. For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in the protocol.

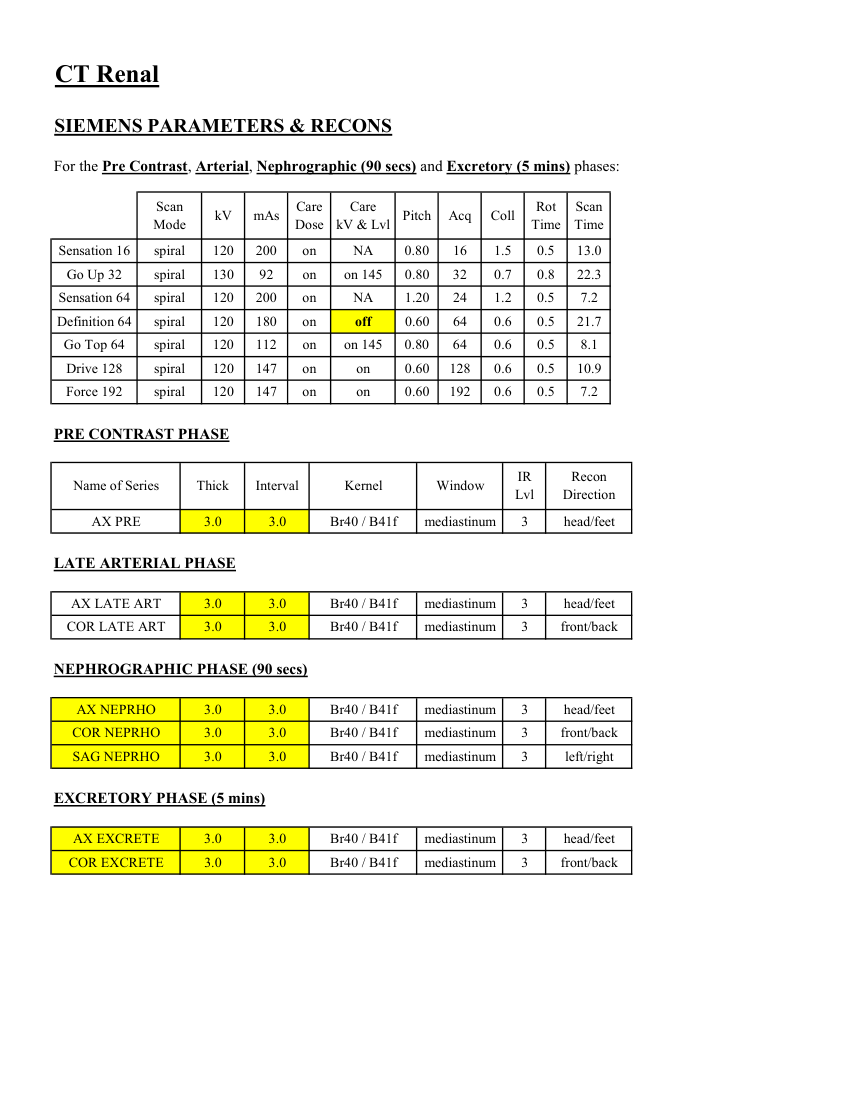

Pagina 2 — text în engleză
CT Renal SIEMENS PARAMETERS & RECONS For the Pre Contrast, Arterial, Nephrographic (90 secs) and Excretory (5 mins) phases: Scan
Care
Rot Scan
Acq Coll Pitch Mode kV mAs Care
Dose kV & Lvl Time Time Sensation 16 spiral 120 200 on NA 0.80 16 1.5 0.5 13.0 Go Up 32 spiral 130 92 on on 145 0.80 32 0.7 0.8 22.3 Sensation 64 spiral 120 200 on NA 1.20 0.5 24 1.2 7.2 Definition 64 spiral 120 180 on off 0.60 64 0.6 0.5 21.7 Go Top 64 spiral 120 112 on 0.5 8.1 on 145 0.80 64 0.6 Drive 128 spiral 120 147 on on 0.60 128 0.6 0.5 10.9 Force 192 spiral 120 147 on on 0.60 192 0.6 0.5 7.2 PRE CONTRAST PHASE IR
Recon
Name of Series Thick Interval Window Kernel Lvl Direction AX PRE 3.0 3.0 mediastinum head/feet Br40 / B41f 3 LATE ARTERIAL PHASE AX LATE ART 3.0 3.0 head/feet Br40 / B41f mediastinum 3 COR LATE ART 3.0 3.0 mediastinum front/back Br40 / B41f 3 NEPHROGRAPHIC PHASE (90 secs) AX NEPRHO 3.0 3.0 mediastinum Br40 / B41f 3 head/feet COR NEPRHO 3.0 3.0 mediastinum front/back Br40 / B41f 3 SAG NEPRHO 3.0 3.0 mediastinum Br40 / B41f 3 left/right EXCRETORY PHASE (5 mins) AX EXCRETE 3.0 3.0 mediastinum head/feet Br40 / B41f 3 COR EXCRETE 3.0 3.0 mediastinum Br40 / B41f 3 front/back
Care
Rot Scan
Acq Coll Pitch Mode kV mAs Care
Dose kV & Lvl Time Time Sensation 16 spiral 120 200 on NA 0.80 16 1.5 0.5 13.0 Go Up 32 spiral 130 92 on on 145 0.80 32 0.7 0.8 22.3 Sensation 64 spiral 120 200 on NA 1.20 0.5 24 1.2 7.2 Definition 64 spiral 120 180 on off 0.60 64 0.6 0.5 21.7 Go Top 64 spiral 120 112 on 0.5 8.1 on 145 0.80 64 0.6 Drive 128 spiral 120 147 on on 0.60 128 0.6 0.5 10.9 Force 192 spiral 120 147 on on 0.60 192 0.6 0.5 7.2 PRE CONTRAST PHASE IR
Recon
Name of Series Thick Interval Window Kernel Lvl Direction AX PRE 3.0 3.0 mediastinum head/feet Br40 / B41f 3 LATE ARTERIAL PHASE AX LATE ART 3.0 3.0 head/feet Br40 / B41f mediastinum 3 COR LATE ART 3.0 3.0 mediastinum front/back Br40 / B41f 3 NEPHROGRAPHIC PHASE (90 secs) AX NEPRHO 3.0 3.0 mediastinum Br40 / B41f 3 head/feet COR NEPRHO 3.0 3.0 mediastinum front/back Br40 / B41f 3 SAG NEPRHO 3.0 3.0 mediastinum Br40 / B41f 3 left/right EXCRETORY PHASE (5 mins) AX EXCRETE 3.0 3.0 mediastinum head/feet Br40 / B41f 3 COR EXCRETE 3.0 3.0 mediastinum Br40 / B41f 3 front/back

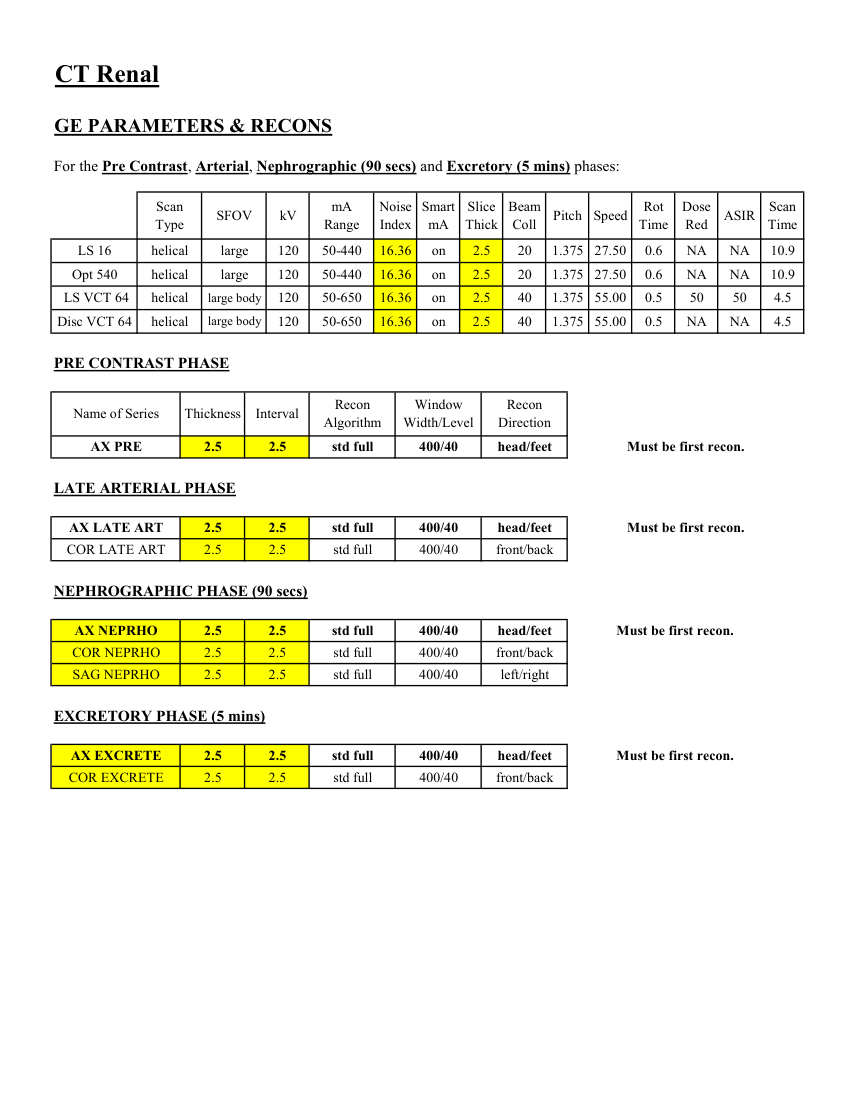

Pagina 3 — text în engleză
CT Renal GE PARAMETERS & RECONS For the Pre Contrast, Arterial, Nephrographic (90 secs) and Excretory (5 mins) phases: Scan
Smart
Slice
Beam
Dose
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Speed Rot
Time Red ASIR Time LS 16 27.50 helical large 120 50-440 16.36 on 2.5 20 1.375 0.6 NA NA 10.9 Opt 540 120 50-440 16.36 on helical large 2.5 20 1.375 27.50 0.6 NA NA 10.9 LS VCT 64 50-650 16.36 on helical large body 120 2.5 40 1.375 55.00 0.5 50 50 4.5 Disc VCT 64 helical large body 120 50-650 16.36 on 2.5 40 1.375 55.00 0.5 NA NA 4.5 PRE CONTRAST PHASE Recon
Window
Recon
Name of Series Thickness Interval Algorithm Width/Level Direction AX PRE 2.5 2.5 std full 400/40 head/feet Must be first recon. LATE ARTERIAL PHASE AX LATE ART 2.5 2.5 std full 400/40 head/feet Must be first recon. COR LATE ART 2.5 2.5 std full 400/40 front/back NEPHROGRAPHIC PHASE (90 secs) AX NEPRHO 2.5 2.5 std full 400/40 head/feet Must be first recon. COR NEPRHO 2.5 2.5 std full 400/40 front/back SAG NEPRHO 2.5 2.5 std full 400/40 left/right EXCRETORY PHASE (5 mins) AX EXCRETE 2.5 2.5 std full 400/40 head/feet Must be first recon. std full 400/40 COR EXCRETE 2.5 2.5 front/back
Smart
Slice
Beam
Dose
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Speed Rot
Time Red ASIR Time LS 16 27.50 helical large 120 50-440 16.36 on 2.5 20 1.375 0.6 NA NA 10.9 Opt 540 120 50-440 16.36 on helical large 2.5 20 1.375 27.50 0.6 NA NA 10.9 LS VCT 64 50-650 16.36 on helical large body 120 2.5 40 1.375 55.00 0.5 50 50 4.5 Disc VCT 64 helical large body 120 50-650 16.36 on 2.5 40 1.375 55.00 0.5 NA NA 4.5 PRE CONTRAST PHASE Recon
Window
Recon
Name of Series Thickness Interval Algorithm Width/Level Direction AX PRE 2.5 2.5 std full 400/40 head/feet Must be first recon. LATE ARTERIAL PHASE AX LATE ART 2.5 2.5 std full 400/40 head/feet Must be first recon. COR LATE ART 2.5 2.5 std full 400/40 front/back NEPHROGRAPHIC PHASE (90 secs) AX NEPRHO 2.5 2.5 std full 400/40 head/feet Must be first recon. COR NEPRHO 2.5 2.5 std full 400/40 front/back SAG NEPRHO 2.5 2.5 std full 400/40 left/right EXCRETORY PHASE (5 mins) AX EXCRETE 2.5 2.5 std full 400/40 head/feet Must be first recon. std full 400/40 COR EXCRETE 2.5 2.5 front/back

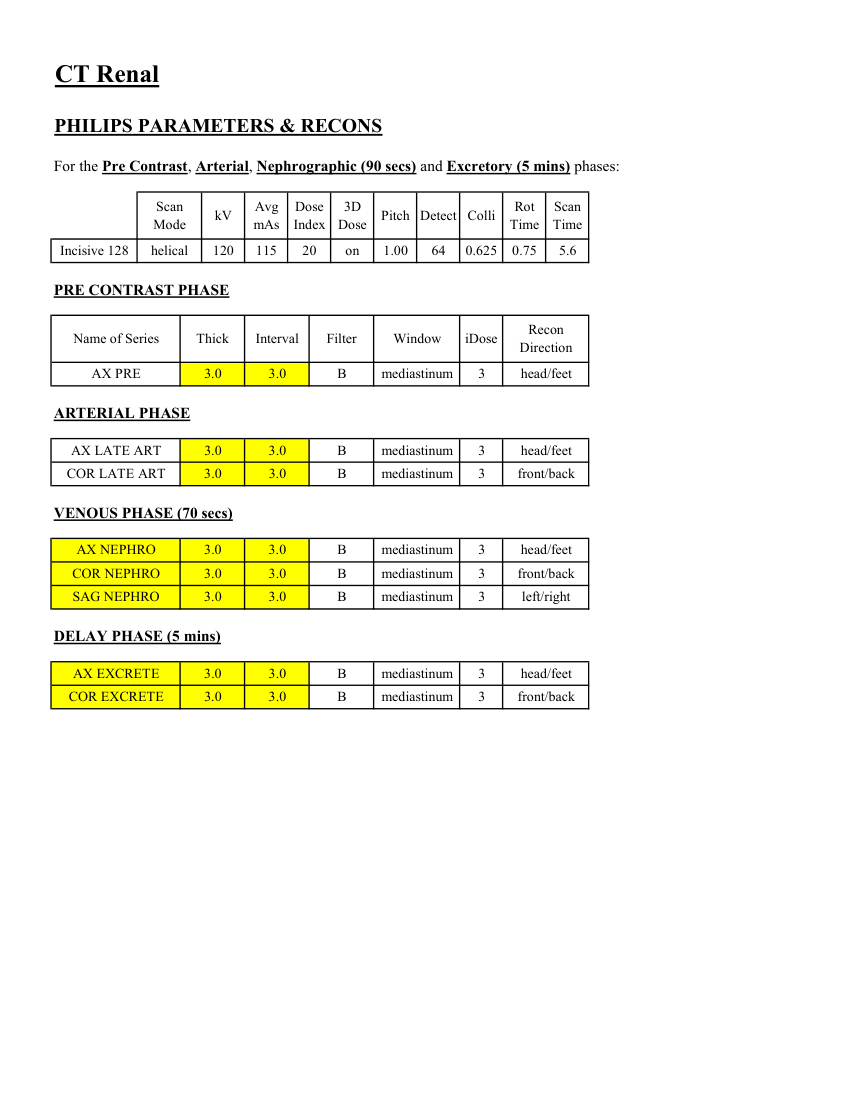

Pagina 4 — text în engleză
CT Renal PHILIPS PARAMETERS & RECONS For the Pre Contrast, Arterial, Nephrographic (90 secs) and Excretory (5 mins) phases: Scan
Dose
3D
Rot Scan
Mode kV Avg
mAs Index Dose Pitch Detect Colli Time Time Incisive 128 helical 120 115 20 on 1.00 0.625 64 0.75 5.6 PRE CONTRAST PHASE Name of Series Thick Interval Filter Window iDose Recon
Direction AX PRE 3.0 3.0 B mediastinum 3 head/feet ARTERIAL PHASE AX LATE ART 3.0 3.0 B mediastinum 3 head/feet COR LATE ART 3.0 3.0 B mediastinum 3 front/back VENOUS PHASE (70 secs) AX NEPHRO 3.0 3.0 3 head/feet B mediastinum COR NEPHRO 3.0 3.0 B mediastinum 3 front/back SAG NEPHRO 3.0 3.0 B mediastinum 3 left/right DELAY PHASE (5 mins) AX EXCRETE 3.0 3.0 B mediastinum 3 head/feet COR EXCRETE 3.0 3.0 B mediastinum 3 front/back
Dose
3D
Rot Scan
Mode kV Avg
mAs Index Dose Pitch Detect Colli Time Time Incisive 128 helical 120 115 20 on 1.00 0.625 64 0.75 5.6 PRE CONTRAST PHASE Name of Series Thick Interval Filter Window iDose Recon
Direction AX PRE 3.0 3.0 B mediastinum 3 head/feet ARTERIAL PHASE AX LATE ART 3.0 3.0 B mediastinum 3 head/feet COR LATE ART 3.0 3.0 B mediastinum 3 front/back VENOUS PHASE (70 secs) AX NEPHRO 3.0 3.0 3 head/feet B mediastinum COR NEPHRO 3.0 3.0 B mediastinum 3 front/back SAG NEPHRO 3.0 3.0 B mediastinum 3 left/right DELAY PHASE (5 mins) AX EXCRETE 3.0 3.0 B mediastinum 3 head/feet COR EXCRETE 3.0 3.0 B mediastinum 3 front/back
