Documentul original MCB — Pelvis de rutină
Protocol · 2 pagini · consultat la 2026-09-27.
Descarcă PDF-ul integral · Sursa MCB · Catalogul MCB pentru această modalitate
Instrucțiunile, valorile și ilustrațiile din documentul original sunt păstrate în engleză. Titlul și navigarea sunt în română.

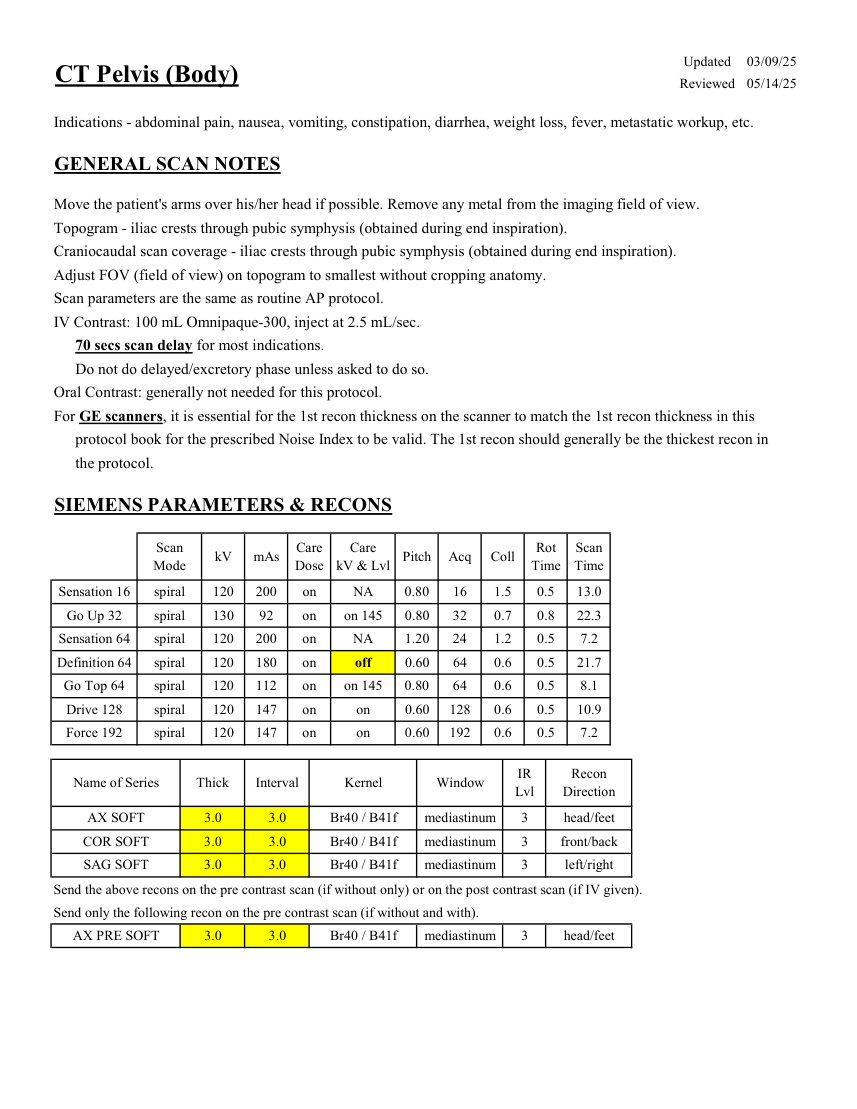

Pagina 1

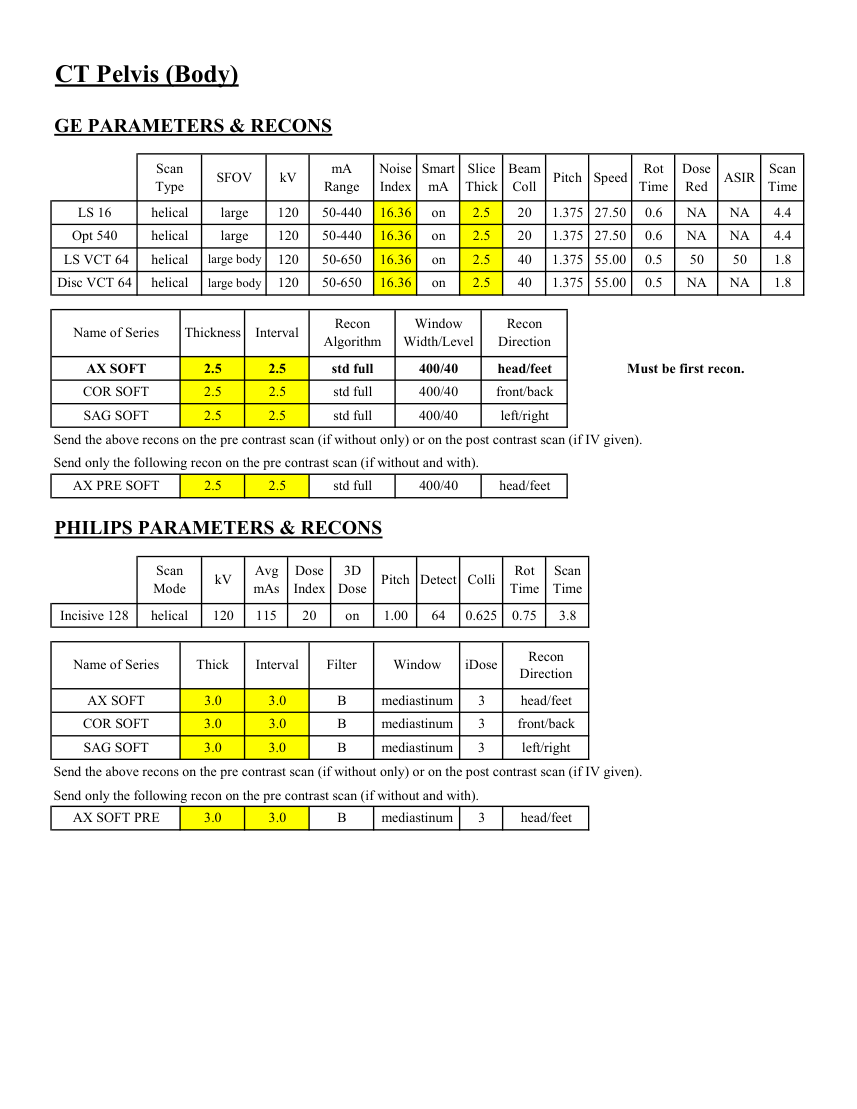

Pagina 2
Textul documentului original
Pagina 1 — text în engleză
Updated 03/09/25 CT Pelvis (Body) Reviewed 05/14/25 Indications - abdominal pain, nausea, vomiting, constipation, diarrhea, weight loss, fever, metastatic workup, etc. GENERAL SCAN NOTES Move the patient's arms over his/her head if possible. Remove any metal from the imaging field of view. Topogram - iliac crests through pubic symphysis (obtained during end inspiration). Craniocaudal scan coverage - iliac crests through pubic symphysis (obtained during end inspiration). Adjust FOV (field of view) on topogram to smallest without cropping anatomy. Scan parameters are the same as routine AP protocol. IV Contrast: 100 mL Omnipaque-300, inject at 2.5 mL/sec. 70 secs scan delay for most indications. Do not do delayed/excretory phase unless asked to do so. Oral Contrast: generally not needed for this protocol. For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in the protocol. SIEMENS PARAMETERS & RECONS Scan
Care
Rot Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Time Time Sensation 16 spiral 120 200 on NA 0.80 16 1.5 0.5 13.0 Go Up 32 spiral 130 92 on on 145 0.80 32 0.7 0.8 22.3 Sensation 64 spiral 120 200 on NA 1.20 24 1.2 0.5 7.2 Definition 64 spiral 120 180 on off 0.60 64 0.6 0.5 21.7 Go Top 64 spiral 120 112 on on 145 0.80 64 0.6 0.5 8.1 Drive 128 spiral 120 147 on on 0.60 128 0.6 0.5 10.9 Force 192 spiral 120 147 on on 0.60 192 0.6 0.5 7.2 Recon
Name of Series Thick Interval Kernel Window IR
Lvl Direction AX SOFT 3.0 3.0 Br40 / B41f mediastinum 3 head/feet COR SOFT 3.0 3.0 Br40 / B41f mediastinum 3 front/back SAG SOFT 3.0 3.0 Br40 / B41f mediastinum 3 left/right Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX PRE SOFT 3.0 3.0 Br40 / B41f mediastinum 3 head/feet
Care
Rot Scan
Mode kV mAs Care
Dose kV & Lvl Pitch Acq Coll Time Time Sensation 16 spiral 120 200 on NA 0.80 16 1.5 0.5 13.0 Go Up 32 spiral 130 92 on on 145 0.80 32 0.7 0.8 22.3 Sensation 64 spiral 120 200 on NA 1.20 24 1.2 0.5 7.2 Definition 64 spiral 120 180 on off 0.60 64 0.6 0.5 21.7 Go Top 64 spiral 120 112 on on 145 0.80 64 0.6 0.5 8.1 Drive 128 spiral 120 147 on on 0.60 128 0.6 0.5 10.9 Force 192 spiral 120 147 on on 0.60 192 0.6 0.5 7.2 Recon
Name of Series Thick Interval Kernel Window IR
Lvl Direction AX SOFT 3.0 3.0 Br40 / B41f mediastinum 3 head/feet COR SOFT 3.0 3.0 Br40 / B41f mediastinum 3 front/back SAG SOFT 3.0 3.0 Br40 / B41f mediastinum 3 left/right Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX PRE SOFT 3.0 3.0 Br40 / B41f mediastinum 3 head/feet
Pagina 2 — text în engleză
CT Pelvis (Body) GE PARAMETERS & RECONS Scan
Smart
Slice
Beam
Dose
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Time Speed Rot
Time Red ASIR LS 16 helical large 120 50-440 16.36 on 2.5 20 1.375 27.50 0.6 NA NA 4.4 Opt 540 helical large 120 50-440 16.36 on 2.5 20 1.375 27.50 0.6 NA NA 4.4 LS VCT 64 helical large body 120 0.5 50 50-650 16.36 on 2.5 40 1.375 55.00 50 1.8 Disc VCT 64 helical large body 120 50-650 16.36 on 2.5 40 1.375 55.00 0.5 NA NA 1.8 Window
Recon
Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX SOFT 2.5 2.5 std full 400/40 head/feet Must be first recon. COR SOFT 2.5 2.5 std full 400/40 front/back SAG SOFT 2.5 2.5 std full 400/40 left/right Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX PRE SOFT 2.5 2.5 std full 400/40 head/feet PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Scan
Pitch Detect Colli Rot Mode kV Avg
mAs Index Dose Time Time Incisive 128 helical 120 115 20 on 1.00 64 0.625 0.75 3.8 Recon
Name of Series Thick Interval Filter Window iDose Direction AX SOFT 3.0 3.0 B mediastinum 3 head/feet COR SOFT 3.0 3.0 B mediastinum 3 front/back SAG SOFT 3.0 3.0 B mediastinum 3 left/right Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 3.0 3.0 B mediastinum 3 head/feet
Smart
Slice
Beam
Dose
Scan
Type SFOV kV mA
Range Noise
Index mA Thick Coll Pitch Time Speed Rot
Time Red ASIR LS 16 helical large 120 50-440 16.36 on 2.5 20 1.375 27.50 0.6 NA NA 4.4 Opt 540 helical large 120 50-440 16.36 on 2.5 20 1.375 27.50 0.6 NA NA 4.4 LS VCT 64 helical large body 120 0.5 50 50-650 16.36 on 2.5 40 1.375 55.00 50 1.8 Disc VCT 64 helical large body 120 50-650 16.36 on 2.5 40 1.375 55.00 0.5 NA NA 1.8 Window
Recon
Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX SOFT 2.5 2.5 std full 400/40 head/feet Must be first recon. COR SOFT 2.5 2.5 std full 400/40 front/back SAG SOFT 2.5 2.5 std full 400/40 left/right Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX PRE SOFT 2.5 2.5 std full 400/40 head/feet PHILIPS PARAMETERS & RECONS Scan
Dose
3D
Scan
Pitch Detect Colli Rot Mode kV Avg
mAs Index Dose Time Time Incisive 128 helical 120 115 20 on 1.00 64 0.625 0.75 3.8 Recon
Name of Series Thick Interval Filter Window iDose Direction AX SOFT 3.0 3.0 B mediastinum 3 head/feet COR SOFT 3.0 3.0 B mediastinum 3 front/back SAG SOFT 3.0 3.0 B mediastinum 3 left/right Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 3.0 3.0 B mediastinum 3 head/feet
