Documentul original MCB — Abdomen de rutină
Protocol · 2 pagini · consultat la 2026-09-27.
Descarcă PDF-ul integral · Sursa MCB · Catalogul MCB pentru această modalitate
Instrucțiunile, valorile și ilustrațiile din documentul original sunt păstrate în engleză. Titlul și navigarea sunt în română.

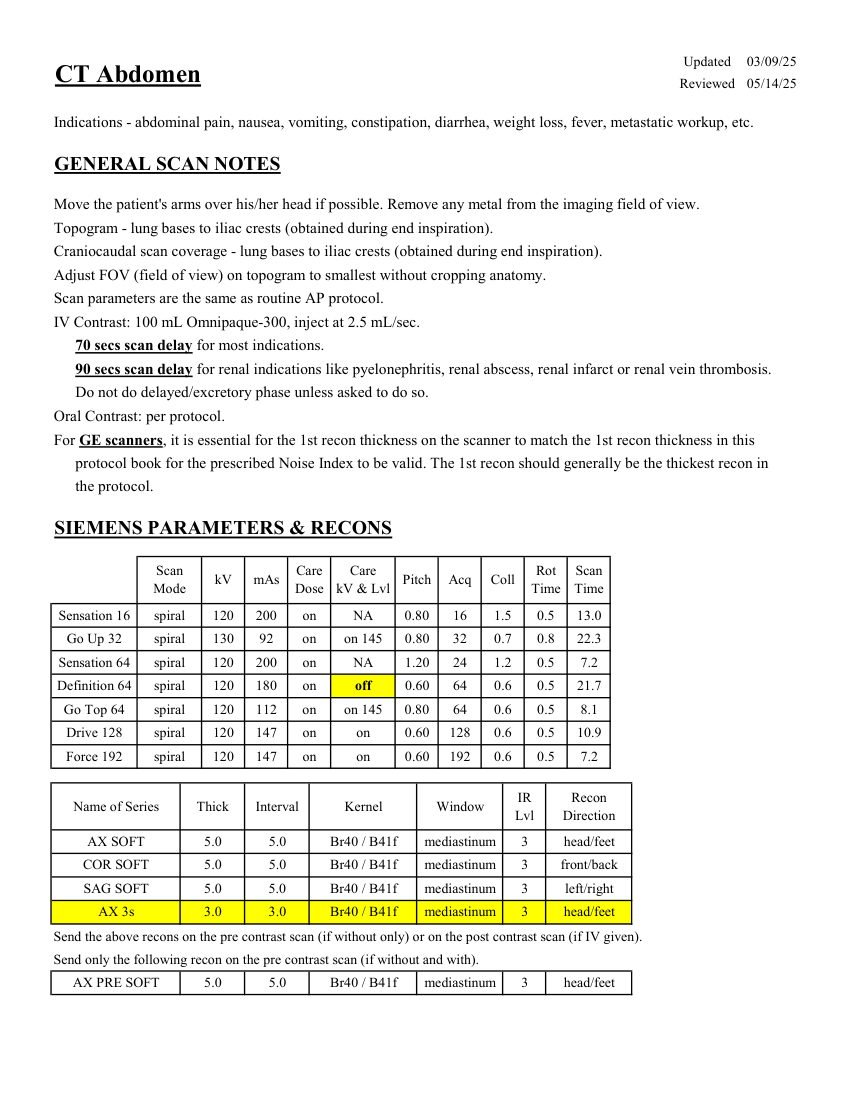

Pagina 1

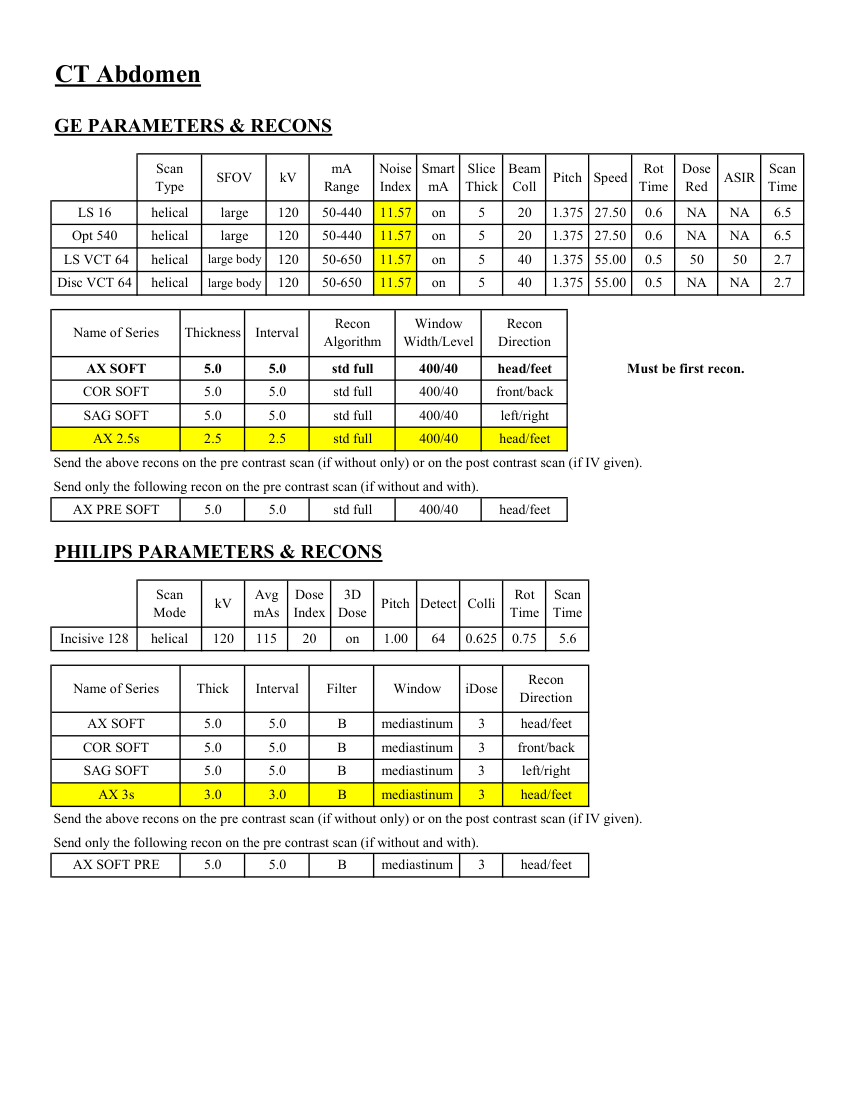

Pagina 2
Textul documentului original
Pagina 1 — text în engleză
Updated 03/09/25 CT Abdomen Reviewed 05/14/25 Indications - abdominal pain, nausea, vomiting, constipation, diarrhea, weight loss, fever, metastatic workup, etc. GENERAL SCAN NOTES Move the patient's arms over his/her head if possible. Remove any metal from the imaging field of view. Topogram - lung bases to iliac crests (obtained during end inspiration). Craniocaudal scan coverage - lung bases to iliac crests (obtained during end inspiration). Adjust FOV (field of view) on topogram to smallest without cropping anatomy. Scan parameters are the same as routine AP protocol. IV Contrast: 100 mL Omnipaque-300, inject at 2.5 mL/sec. 70 secs scan delay for most indications. 90 secs scan delay for renal indications like pyelonephritis, renal abscess, renal infarct or renal vein thrombosis. Do not do delayed/excretory phase unless asked to do so. Oral Contrast: per protocol. For GE scanners, it is essential for the 1st recon thickness on the scanner to match the 1st recon thickness in this protocol book for the prescribed Noise Index to be valid. The 1st recon should generally be the thickest recon in the protocol. SIEMENS PARAMETERS & RECONS Scan
Care
Care
Scan
Mode kV mAs Dose kV & Lvl Pitch Acq Coll Rot Time Time on Sensation 16 spiral 120 200 NA 0.80 16 1.5 0.5 13.0 Go Up 32 spiral 130 92 on on 145 0.80 32 0.7 0.8 22.3 Sensation 64 spiral 120 200 on NA 1.20 24 1.2 0.5 7.2 Definition 64 spiral 120 180 on 0.60 64 0.6 0.5 21.7 off Go Top 64 spiral 120 112 on on 145 0.80 64 0.6 0.5 8.1 Drive 128 spiral 120 147 on on 0.60 128 0.6 0.5 10.9 Force 192 spiral 120 147 on on 0.60 192 0.6 0.5 7.2 IR
Recon
Name of Series Thick Interval Kernel Window Lvl Direction AX SOFT Br40 / B41f 5.0 5.0 mediastinum 3 head/feet COR SOFT 5.0 5.0 Br40 / B41f mediastinum 3 front/back SAG SOFT 5.0 Br40 / B41f 5.0 mediastinum 3 left/right AX 3s 3.0 3.0 Br40 / B41f mediastinum 3 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX PRE SOFT Br40 / B41f 5.0 5.0 head/feet 3 mediastinum
Care
Care
Scan
Mode kV mAs Dose kV & Lvl Pitch Acq Coll Rot Time Time on Sensation 16 spiral 120 200 NA 0.80 16 1.5 0.5 13.0 Go Up 32 spiral 130 92 on on 145 0.80 32 0.7 0.8 22.3 Sensation 64 spiral 120 200 on NA 1.20 24 1.2 0.5 7.2 Definition 64 spiral 120 180 on 0.60 64 0.6 0.5 21.7 off Go Top 64 spiral 120 112 on on 145 0.80 64 0.6 0.5 8.1 Drive 128 spiral 120 147 on on 0.60 128 0.6 0.5 10.9 Force 192 spiral 120 147 on on 0.60 192 0.6 0.5 7.2 IR
Recon
Name of Series Thick Interval Kernel Window Lvl Direction AX SOFT Br40 / B41f 5.0 5.0 mediastinum 3 head/feet COR SOFT 5.0 5.0 Br40 / B41f mediastinum 3 front/back SAG SOFT 5.0 Br40 / B41f 5.0 mediastinum 3 left/right AX 3s 3.0 3.0 Br40 / B41f mediastinum 3 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX PRE SOFT Br40 / B41f 5.0 5.0 head/feet 3 mediastinum
Pagina 2 — text în engleză
CT Abdomen GE PARAMETERS & RECONS Scan
Smart
Slice
Beam
Dose
Scan
SFOV kV mA
Speed Rot
ASIR Type Range Noise
Index mA Thick Coll Pitch Time Red Time 11.57 LS 16 helical large 120 50-440 on 20 5 1.375 27.50 0.6 NA NA 6.5 Opt 540 helical large 120 50-440 11.57 on 5 1.375 20 27.50 0.6 NA NA 6.5 LS VCT 64 5 helical large body 120 50-650 11.57 on 2.7 40 0.5 50 50 1.375 55.00 Disc VCT 64 helical large body 120 50-650 11.57 on 5 40 1.375 55.00 0.5 NA NA 2.7 Window
Recon
Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX SOFT 5.0 5.0 head/feet std full 400/40 Must be first recon. COR SOFT 5.0 5.0 std full 400/40 front/back SAG SOFT 5.0 5.0 std full 400/40 left/right AX 2.5s 2.5 2.5 std full 400/40 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX PRE SOFT 5.0 5.0 std full 400/40 head/feet PHILIPS PARAMETERS & RECONS Scan
Avg
Dose
3D
Rot Scan
kV Pitch Detect Colli Mode mAs Index Dose Time Time Incisive 128 helical 120 115 20 on 1.00 64 0.625 0.75 5.6 Recon
Name of Series Thick Interval Filter Window iDose Direction AX SOFT 5.0 5.0 B mediastinum 3 head/feet COR SOFT 5.0 5.0 B mediastinum 3 front/back SAG SOFT 5.0 5.0 B mediastinum 3 left/right AX 3s 3.0 3.0 B mediastinum 3 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 5.0 5.0 B mediastinum 3 head/feet
Smart
Slice
Beam
Dose
Scan
SFOV kV mA
Speed Rot
ASIR Type Range Noise
Index mA Thick Coll Pitch Time Red Time 11.57 LS 16 helical large 120 50-440 on 20 5 1.375 27.50 0.6 NA NA 6.5 Opt 540 helical large 120 50-440 11.57 on 5 1.375 20 27.50 0.6 NA NA 6.5 LS VCT 64 5 helical large body 120 50-650 11.57 on 2.7 40 0.5 50 50 1.375 55.00 Disc VCT 64 helical large body 120 50-650 11.57 on 5 40 1.375 55.00 0.5 NA NA 2.7 Window
Recon
Name of Series Thickness Interval Recon
Algorithm Width/Level Direction AX SOFT 5.0 5.0 head/feet std full 400/40 Must be first recon. COR SOFT 5.0 5.0 std full 400/40 front/back SAG SOFT 5.0 5.0 std full 400/40 left/right AX 2.5s 2.5 2.5 std full 400/40 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX PRE SOFT 5.0 5.0 std full 400/40 head/feet PHILIPS PARAMETERS & RECONS Scan
Avg
Dose
3D
Rot Scan
kV Pitch Detect Colli Mode mAs Index Dose Time Time Incisive 128 helical 120 115 20 on 1.00 64 0.625 0.75 5.6 Recon
Name of Series Thick Interval Filter Window iDose Direction AX SOFT 5.0 5.0 B mediastinum 3 head/feet COR SOFT 5.0 5.0 B mediastinum 3 front/back SAG SOFT 5.0 5.0 B mediastinum 3 left/right AX 3s 3.0 3.0 B mediastinum 3 head/feet Send the above recons on the pre contrast scan (if without only) or on the post contrast scan (if IV given). Send only the following recon on the pre contrast scan (if without and with). AX SOFT PRE 5.0 5.0 B mediastinum 3 head/feet
